AutoPly Interior Insulation Kit for Ford Transit High Roof 148" Wheelbase - R4 (1") DiamondPly™ 1.0 Model 5000V-1D

Name: AutoPly Interior Insulation Kit for Ford Transit High Roof 148" Wheelbase - R4 (1") DiamondPly™ 1.0 Model 5000V-1D
Brand: AutoPly
SKU: AUP5000V-1D
Price: 1138.0 USD
Availability: OutOfStock

SKU AUP5000V-1D

Sold out

$1,138.00 - $1,138.00

$1,138.00

$1,138.00 - $1,138.00

$1,138.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

AutoPly Interior Insulation Kit for Ford Transit High Roof 148" Wheelbase - R4 (1") DiamondPly™ 1.0 Model 5000V-1D

AutoPly DiamondPly™ 1.0 insulation kits are precision pre-cut for popular vans including the Mercedes Sprinter, Ford Transit, Ram ProMaster, Chevy Express, and GMC Savana, providing a simple, turnkey insulation solution for vans, RVs, and work trucks. Each vehicle-specific kit features a peel-and-stick, low-VOC solvent-free acrylic adhesive with a glassine paper release liner for fast installation and excellent bonding performance. Built on a proven non-woven polyester insulation core, DiamondPly adds a durable polypropylene spun protective layer with a diamond pattern surface. This creates a tough interior liner that resists punctures, wear, and tearing while delivering exceptional thermal and acoustic insulation performance across a temperature stability range of -40°F to 250°F (-40°C to 121°C). The Ford Transit High Roof 148" Wheelbase insulation kit comes with three thickness choices: R2 (.5" insulation), R4 (1" insulation), and Diamond Ply (R4 - 1" Insulation).

Contents

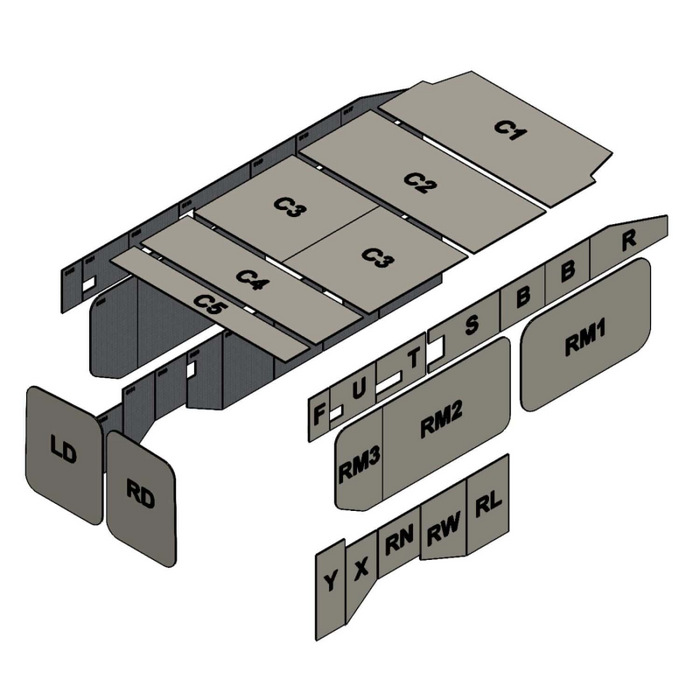

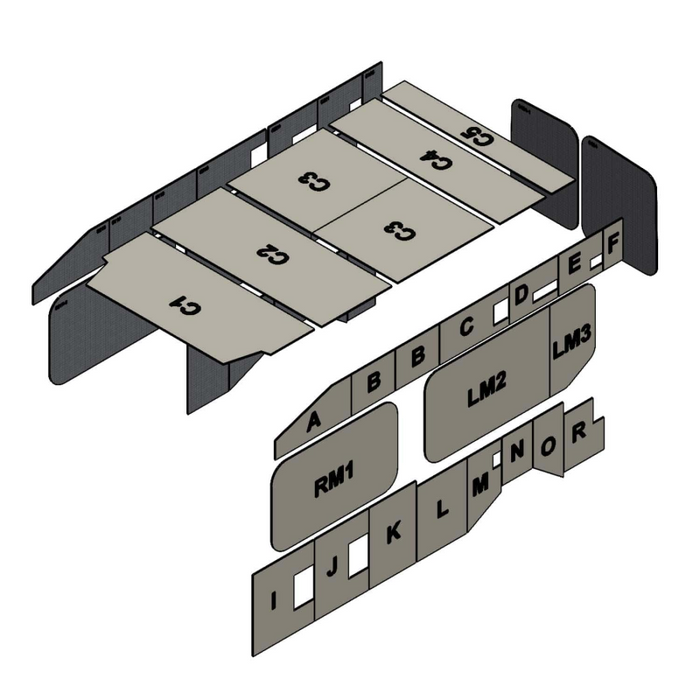

Ceiling, sides and doors
39 Pieces

Features & Benefits

Durable Insulation Liner: Reinforced diamond-pattern polypropylene surface helps resist punctures, wear, and tearing in demanding vehicle environments.
Thermal & Acoustic Performance: Non-woven polyester insulation core helps reduce heat transfer and minimize road and equipment noise.
Direct-to-Vehicle Installation: Designed to install directly on vehicle walls and ceilings, eliminating the need for traditional interior paneling.
Flexible Conformability: Material easily conforms to vehicle contours for a cleaner fit in vans, work trucks, and specialty vehicles.
Structural Access Retention: Allows continued visibility and access to wall and ceiling structures after installation.
Reinforced Construction: Combines a non-woven polyester insulation core with a polypropylene spun reinforcement layer for enhanced durability.
Odorless Interior Solution: Odor-free material is well suited for enclosed commercial vehicle and van interiors.
Health-Conscious Materials: Chemical-free, allergen-free, and fiberglass-free construction helps support a cleaner interior environment.
Mildew & Bacteria Resistance: Durable materials help resist the growth of mildew and bacteria.
Eco-Friendly Construction: Recyclable material components provide a more sustainable insulation solution.
Safety Compliance: Meets FMVSS 302 Federal Motor Vehicle Safety Standard and CMVSS requirements for flammability.
Automotive-Grade Materials: Manufactured using materials commonly utilized by automotive OEMs and designed to meet industry durability requirements.
Made in USA: Proudly manufactured in the United States, Buy America compliant for consistent quality and performance.
