Coxreels 1125PCL Series 12V DC 1/2 HP Explosion-Proof Motorized Cord Reel 12 AWG x 250 ft. - No Cord 600V 30 Amps Model 1125PCL-8-ED

Name: Coxreels 1125PCL Series 12V DC 1/2 HP Explosion-Proof Motorized Cord Reel 12 AWG x 250 ft. - No Cord 600V 30 Amps Model 1125PCL-8-ED
Brand: Cox Reels
SKU: 1125PCL-8-ED
Price: 1995.0 USD
Availability: OutOfStock

SKU 1125PCL-8-ED

Sold out

$1,995.00 - $1,995.00

$1,995.00

$1,995.00 - $1,995.00

$1,995.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1125PCL Series 12V DC 1/2 HP Explosion-Proof Motorized Cord Reel 12 AWG x 250 ft. - No Cord 600V 30 Amps Model 1125PCL-8-ED

COXREELS® 1125PCL Series professional-grade hand crank and motorized cord reels feature the industry preferred design including a drum-located, easy to access slip ring assembly for simple routine maintenance and a sturdy all-welded “A” frame built to efficiently handle the most demanding of tasks. The unique permanently lubricated and self-aligning pillow block bearings at each end of the drum allow smooth rotation and are specifically designed for rough, heavy-duty applications. These innovative models handle long lengths of 12/3 Gage or 10/3 Gage SO type power cord.

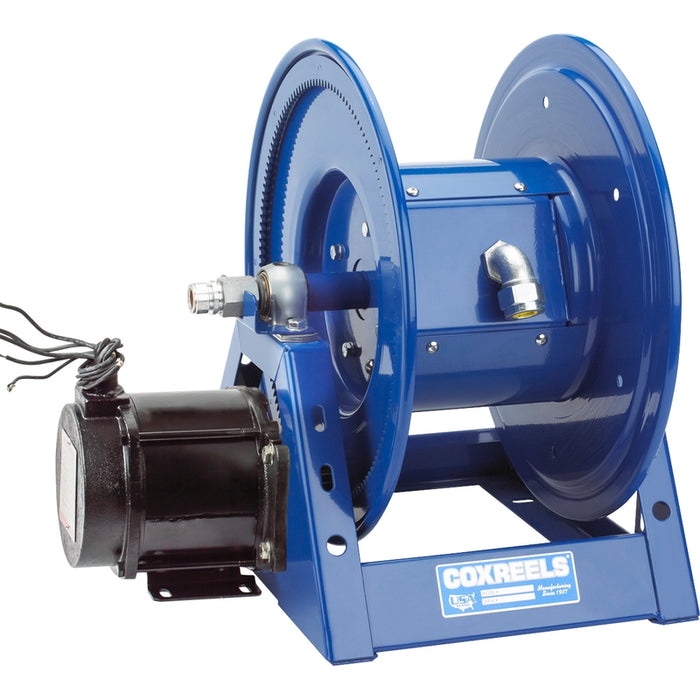

The Coxreels 1125PCL-8-ED Explosion-Proof Motor Rewind Cord Reel features an elite 12V DC, 1/2 HP explosion-proof reversible electric motor engineered for safe retrieval across combustible environments. Supplied less cord and supporting 250 feet of 12 AWG / 3-conductor line, this compact narrow-width unit operates via a direct gear setup and incorporates an internal 30 Amp, 600 Volt slip ring array.

Features & Benefits

12V DC Explosion-Proof Motor Drive: Powered by an industrial-grade, 12V DC, 1/2 HP explosion-proof reversible motor engineered for safe automated recovery in hazardous environments. It utilizes a reliable direct gear configuration for quiet, smooth, chain-free mechanical operation.
30 Amp / 600 Volt Rated Slip Ring: Furnished with a heavy-duty 30 Amp, 600 Volt collector ring loop enclosed securely inside the main drum, complete with an easy-access removable panel for inline servicing.
Drum-Located Slip Ring Assembly: Features a specialized slip ring assembly positioned within the drum, complete with an easy-to-access removable panel for simple routine maintenance without removing the reel from its mount.
Robotic 1/4" Steel "A" Frame Base: Built upon a heavy-duty, one-piece, all-CNC robotically welded 1/4" steel "A" frame base that eliminates bolts to provide a superior, ultra-rigid reel structure.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings at each end of the drum shaft ensure exceptionally smooth rotation and trouble-free mechanical operation under rough, heavy-duty applications.
Anti-Rotation Cable Keeper: Equipped with an integrated anti-rotation cable keeper that safely prevents the 5-foot lead cable from whipping, twisting, or binding during operation.
CNC Robotically Spun Discs: Heavy-duty, robotically spun and ribbed discs feature rolled edges to enhance structural strength, improve overall durability, and protect both the cord and operator from injury.
Adjustable Tension Brake: Features an integrated drag brake to customize drum resistance, effectively preventing accidental line unspooling or free-wheeling during heavy-duty motorized operations or transport.
Proprietary CPC™ Powder Coat: Shielded by a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for a professional-grade appearance that withstands severe commercial use.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
