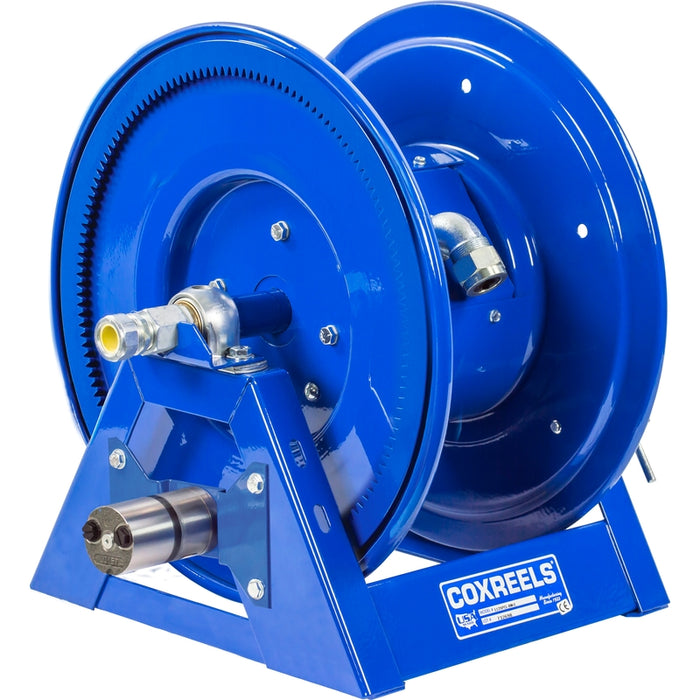

Coxreels 1125PCL Series Hydraulic Motorized Hose Reel 12 AWG x 250 ft. - No Cord 600V 45 Amps Model 1125PCL-8M-H

Name: Coxreels 1125PCL Series Hydraulic Motorized Hose Reel 12 AWG x 250 ft. - No Cord 600V 45 Amps Model 1125PCL-8M-H
Brand: Cox Reels
SKU: 1125PCL-8M-H
Price: 2405.0 USD
Availability: OutOfStock

SKU 1125PCL-8M-H

Sold out

$2,405.00 - $2,405.00

$2,405.00

$2,405.00 - $2,405.00

$2,405.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1125PCL Series Hydraulic Motorized Hose Reel 12 AWG x 250 ft. - No Cord 600V 45 Amps Model 1125PCL-8M-H

COXREELS® 1125PCL Series professional-grade hand crank and motorized cord reels feature the industry preferred design including a drum-located, easy to access slip ring assembly for simple routine maintenance and a sturdy all-welded “A” frame built to efficiently handle the most demanding of tasks. The unique permanently lubricated and self-aligning pillow block bearings at each end of the drum allow smooth rotation and are specifically designed for rough, heavy-duty applications. These innovative models handle long lengths of 12/3 Gage or 10/3 Gage SO type power cord.

The Coxreels 1125PCL-8M-H Hydraulic Rewind Cord Reel couples directly with plant or vehicle hydraulic lines to automate cord management across heavy work platforms. Supplied less cord and holding up to 250 feet of 12 AWG / 3-conductor electrical line, this high-torque narrow model combines chain-free direct gear retraction with an upgraded high-amperage internal slip ring system rated at 45 Amps and 600 Volts.

Features & Benefits

Hydraulic Motor Power Retrieval: Driven by an active hydraulic motor that taps fluid power loops for unmatched mechanical torque, operating alongside a quiet direct gear configuration with no external drive chains.
Upgraded 45 Amp / 600 Volt Rated Slip Ring: Furnished with an upgraded high-capacity 45 Amp, 600 Volt collector ring loop enclosed securely inside the main drum, complete with an easy-access removable panel for inline servicing.
Drum-Located Slip Ring Assembly: Features a specialized slip ring assembly positioned within the drum, complete with an easy-to-access removable panel for simple routine maintenance without removing the reel from its mount.
Robotic 1/4" Steel "A" Frame Base: Built upon a heavy-duty, one-piece, all-CNC robotically welded 1/4" steel "A" frame base that eliminates bolts to provide a superior, ultra-rigid reel structure.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings support the drum shaft to ensure exceptionally smooth rotation and trouble-free mechanical operation.
Anti-Rotation Cable Keeper: Equipped with an integrated anti-rotation cable keeper that safely prevents the 5-foot lead cable from whipping, twisting, or binding during operation.
CNC Robotically Spun Discs: Heavy-duty, robotically spun and ribbed discs feature rolled edges to enhance structural strength, improve overall durability, and protect both the cord and operator from injury.
Adjustable Tension Brake: Features an integrated drag brake to customize drum resistance, effectively preventing accidental line unspooling or free-wheeling during heavy-duty motorized operations or transport.
Proprietary CPC™ Powder Coat: Shielded by a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for a professional-grade appearance that withstands severe commercial use.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
