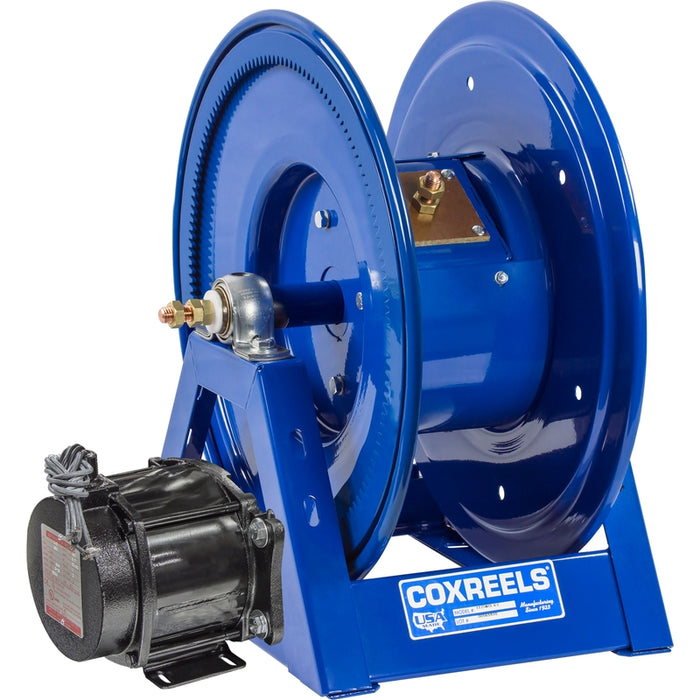

Coxreels 1125WCL Series 12V DC 1/2HP Motorized Welding Cable Reel Up to 2 AWG x 300ft. Model 1125WCL-6-ED

Name: Coxreels 1125WCL Series 12V DC 1/2HP Motorized Welding Cable Reel Up to 2 AWG x 300ft. Model 1125WCL-6-ED
Brand: Cox Reels
SKU: 1125WCL-6-ED
Price: 1587.0 USD
Availability: OutOfStock

SKU 1125WCL-6-ED

Sold out

$1,587.00 - $1,587.00

$1,587.00

$1,587.00 - $1,587.00

$1,587.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1125WCL Series 12V DC 1/2HP Motorized Welding Cable Reel Up to 2 AWG x 300ft. Model 1125WCL-6-ED

COXREELS® 1125WCL Series hand crank or motorized “Welding Cable” reels are great for grounding cable. Save time and effort as you extend the life of your expensive welding cable investment. All electrical components are set inside the drum offering a special narrow width. A stacking bracket is available to create a lead/ground combination in one organized unit.

The Coxreels 1125WCL-6-ED Explosion-Proof Motor Rewind Welding Cable Reel is standard equipped with an automated 12V DC, 1/2 HP explosion-proof reversible electric motor to ease line recovery in hazardous service rig environments. Designed less cable and accepting up to 300 feet of #2 cable capacity, this 450 Amp unit keeps all hot components safely isolated inside the drum core while driving a quiet, direct gear system.

Features & Benefits

12V DC Explosion-Proof Motor Drive: Outfitted with an industrial-grade, 12V DC, 1/2 HP explosion-proof reversible motor engineered for safe automated recovery in volatile environments. It utilizes a reliable direct gear configuration for quiet, smooth, chain-free mechanical operation.
450 Amp Continuous Slip Ring Assembly: Outfitted with an internal electrical collector assembly rated for 450 Amps, set inside the main drum with an easy-access removable panel for simple routine maintenance without removing the reel from its mount.
Robotic "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to provide a superior, vibration-resistant reel structure.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings support the drum shaft to ensure exceptionally smooth rotation and trouble-free mechanical operation.
Long-Handled Locking Pin: Features a robust, long-handled locking pin to securely lock the reel mechanism against rotation during transport, heavy relocation, or storage periods.
CNC Robotically Spun Discs: Heavy-duty, robotically spun and ribbed discs feature rolled edges to enhance structural strength, improve overall durability, and protect both the cable and operator from injury.
Proprietary CPC™ Powder Coat: Shielded by a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for a professional-grade appearance that withstands severe commercial use.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
