Description

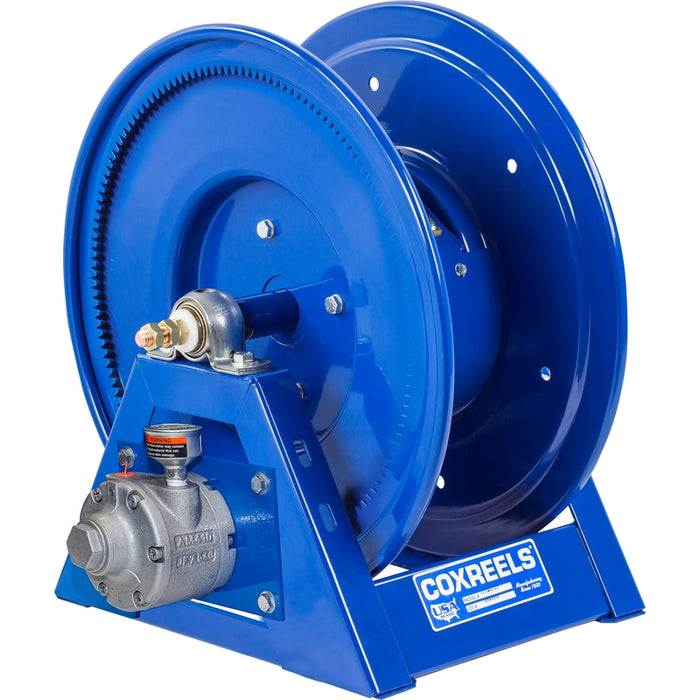

Coxreels 1125WCL Series Air Motorized Welding Cable Reel Up to 2 AWG x 300ft. - No Cable Model 1125WCL-6-A

COXREELS® 1125WCL Series hand crank or motorized “Welding Cable” reels are great for grounding cable. Save time and effort as you extend the life of your expensive welding cable investment. All electrical components are set inside the drum offering a special narrow width. A stacking bracket is available to create a lead/ground combination in one organized unit.

The Coxreels 1125WCL-6-A Compressed Air Motor Rewind Welding Cable Reel is engineered to deliver reliable air-powered line retrieval for specialized arc welding installations, accepting up to 300 feet of #2 welding cable. Supplied less cable, this layout combines a 4-vane pneumatic Gast motor drive loop with an internal 450 Amp continuous collector array. It elements drive chains by running on a quiet direct gear loop, maintaining a highly secure and narrow space footprint.

Features & Benefits

4-Vane Compressed Air Gast Motor Drive: Driven by an industrial pneumatic 4-vane air motor combined with a direct gear drive system to recover up to 300 feet of heavy cable smoothly and efficiently without chain maintenance or spark ignition risks.
450 Amp Continuous Slip Ring Assembly: Outfitted with an internal electrical collector assembly rated for 450 Amps, set inside the main drum with an easy-access removable panel for simple routine maintenance without removing the reel from its mount.
Robotic "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to provide a superior, vibration-resistant reel structure.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings support the drum shaft to ensure exceptionally smooth rotation and trouble-free mechanical operation.
Long-Handled Locking Pin: Features a robust, long-handled locking pin to securely lock the reel mechanism against rotation during transport, heavy relocation, or storage periods.
CNC Robotically Spun Discs: Heavy-duty, robotically spun and ribbed discs feature rolled edges to enhance structural strength, improve overall durability, and protect both the cable and operator from injury.
Proprietary CPC™ Powder Coat: Shielded by a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for a professional-grade appearance that withstands severe commercial use.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
