Coxreels 1125WCL Series Air Motorized Welding Cable Reel Up to 2 AWG x 600ft. - No Cable Model 1125WCL-12-A

Name: Coxreels 1125WCL Series Air Motorized Welding Cable Reel Up to 2 AWG x 600ft. - No Cable Model 1125WCL-12-A
Brand: Cox Reels
SKU: 1125WCL-12-A
Price: 1503.0 USD
Availability: OutOfStock

SKU 1125WCL-12-A

Sold out

$1,503.00 - $1,503.00

$1,503.00

$1,503.00 - $1,503.00

$1,503.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

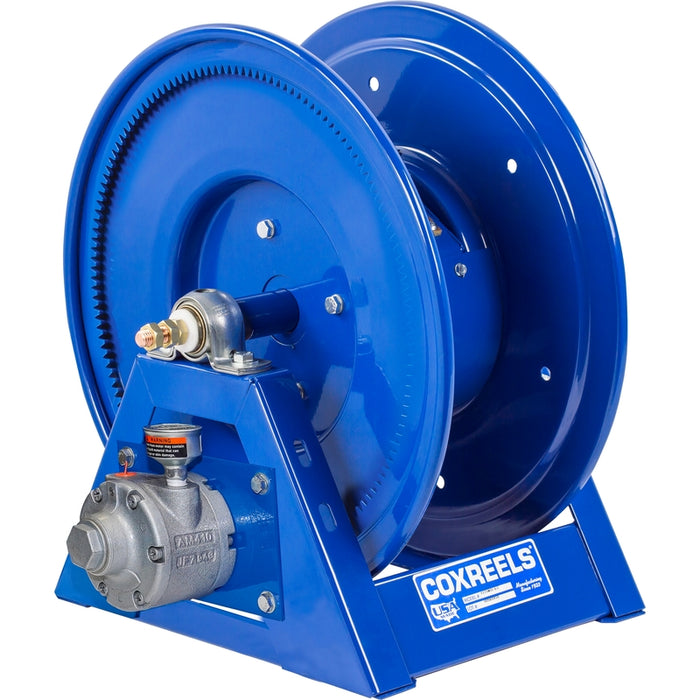

Coxreels 1125WCL Series Air Motorized Welding Cable Reel Up to 2 AWG x 600ft. - No Cable Model 1125WCL-12-A

COXREELS® 1125WCL Series hand crank or motorized “Welding Cable” reels are great for grounding cable. Save time and effort as you extend the life of your expensive welding cable investment. All electrical components are set inside the drum offering a special narrow width. A stacking bracket is available to create a lead/ground combination in one organized unit.

The Coxreels 1125WCL-12-A Compressed Air Motor Rewind Welding Cable Reel utilizes a compact, aluminum body 4-vane pneumatic Gast motor to safely automate heavy cable retrieval in challenging shop environments. Engineered to support up to 600 feet of heavy-duty 2 AWG welding cable and supplied less cable, this reel features a high-capacity internal slip ring assembly rated for a continuous 450 Amps. It relies on a chain-free direct gear drive loop to eliminate common maintenance wear points while preserving a space-saving narrow profile.

Features & Benefits

4-Vane Compressed Air Gast Motor Drive: Driven by an industrial pneumatic 4-vane air motor mated to a chain-free direct gear loop, delivering smooth mechanical retrieval torque without drive chain maintenance or spark ignition risks.
450 Amp Continuous Slip Ring Assembly: Outfitted with an internal electrical collector assembly rated for 450 Amps, set inside the main drum with an easy-access removable panel for simple routine maintenance without removing the reel from its mount.
Robotic "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to provide a superior, vibration-resistant reel structure.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings support the drum shaft to ensure exceptionally smooth rotation and trouble-free mechanical operation.
Long-Handled Locking Pin: Features a robust, long-handled locking pin to securely lock the reel mechanism against rotation during transport, heavy relocation, or storage periods.
CNC Robotically Spun Discs: Heavy-duty, robotically spun and ribbed discs feature rolled edges to enhance structural strength, improve overall durability, and protect both the cable and operator from injury.
Proprietary CPC™ Powder Coat: Shielded by a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for a professional-grade appearance that withstands severe commercial use.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
