Coxreels 1175 Series 12V DC 1/3HP Motorized Hose Reel 1 in. x 125 ft. - No Hose 3000 PSI Model 1175-6-125-E

Name: Coxreels 1175 Series 12V DC 1/3HP Motorized Hose Reel 1 in. x 125 ft. - No Hose 3000 PSI Model 1175-6-125-E
Brand: Cox Reels
SKU: 1175-6-125-E
Price: 1431.0 USD
Availability: OutOfStock

SKU 1175-6-125-E

Sold out

$1,431.00 - $1,431.00

$1,431.00

$1,431.00 - $1,431.00

$1,431.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

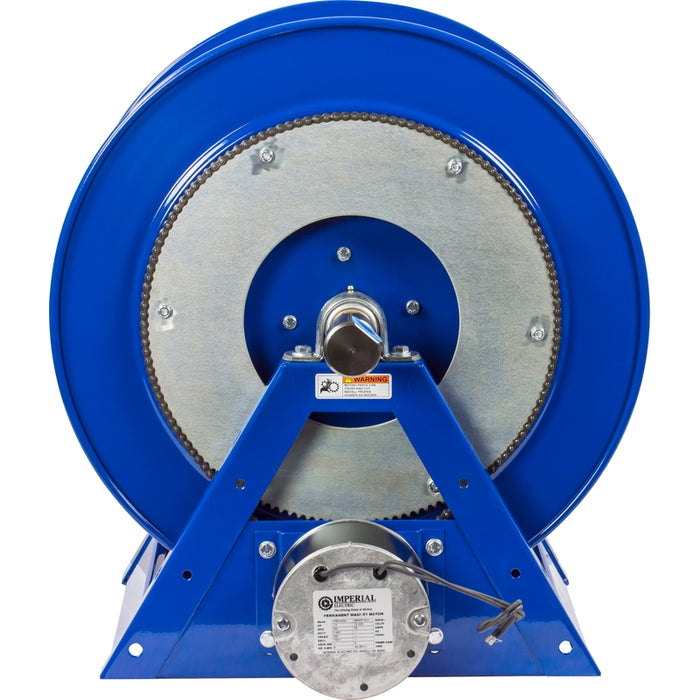

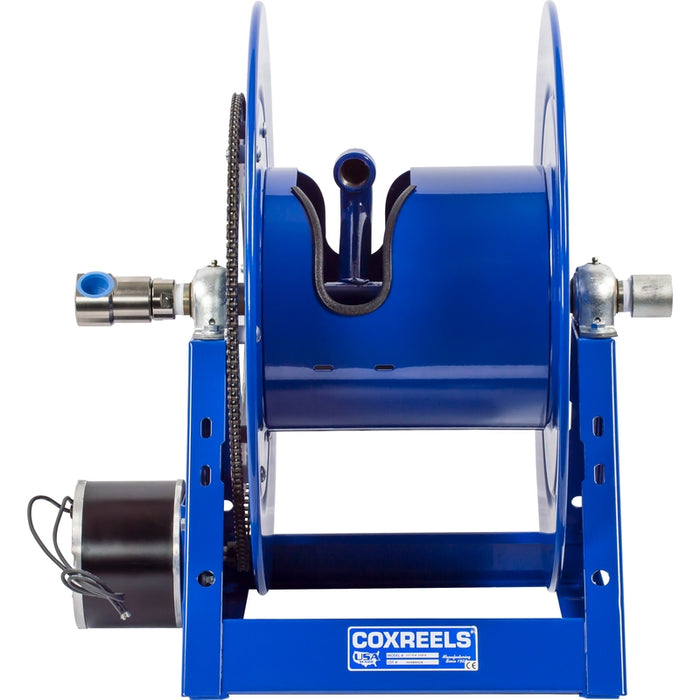

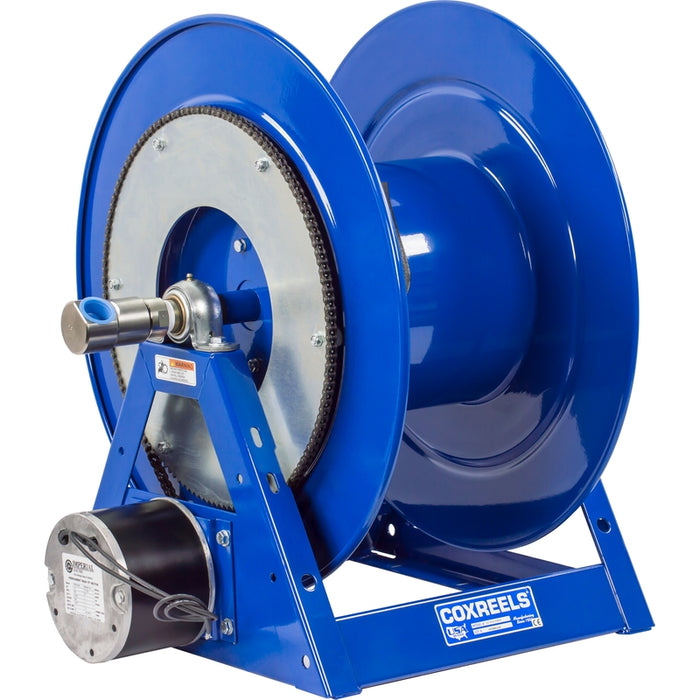

Coxreels 1175 Series 12V DC 1/3HP Motorized Hose Reel 1 in. x 125 ft. - No Hose 3000 PSI Model 1175-6-125-E

COXREELS® 1175 Series hand crank and motorized hose reels are an industry preferred design built with a larger chassis for larger hose capacities and hose diameters. They feature a sturdy one piece all welded “A” frame base, low profile outlet riser and open drum slot design for smooth, even hose wraps around the drum.

The Coxreels 1175-6-125-E Electric Motor Rewind Hose Reel is standard equipped with an automated 12V DC, 1/3 HP reversible electric motor, built to handle an extended high-volume 1" I.D. hose layout up to a 125' capacity. Supplied less hose and rated for a high working pressure of 3000 PSI, this power reel couples its electric motor loop via a heavy-duty chain and sprocket drive loop to achieve smooth mechanical line retrieval on industrial equipment transport fleets.

Features & Benefits

12V DC Electric Motor Drive: Powered by a high-torque 12V DC, 1/3 HP reversible electric motor circuit running a rugged chain and sprocket drive system, engineered to retrieve high-volume 1" hose lines safely.
Nickel-Plated Steel Swivel & AFLAS® Seals: Upgraded with a high-strength nickel-plated steel 90° full-flow NPT swivel inlet paired with robust AFLAS® seals, engineered to deliver premium wear resistance and leak protection under heavy flow tasks.
Robotic 12-Gauge "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to provide a superior, vibration-resistant reel structure.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings support the drum shaft to ensure exceptionally smooth rotation and trouble-free mechanical operation.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and completely smooth hose wrap across the drum surface.
Adjustable Tension Brake: Features an integrated drag brake to customize drum resistance, effectively preventing accidental line unspooling or free-wheeling during heavy-duty motorized payout or transport.
Proprietary CPC™ Powder Coat: Shielded by a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for a professional-grade appearance that withstands severe commercial use.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
