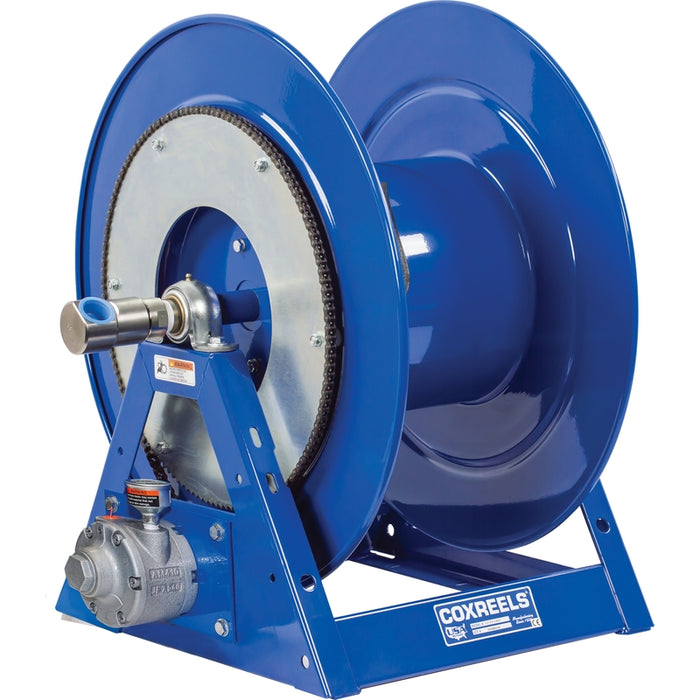

Coxreels 1175 Series 4VANE Motorized Hose Reel 1 in. x 125 ft. - No Hose 3000 PSI Model 1175-6-125-Aair

Name: Coxreels 1175 Series 4VANE Motorized Hose Reel 1 in. x 125 ft. - No Hose 3000 PSI Model 1175-6-125-Aair
Brand: Cox Reels
SKU: 1175-6-125-A
Price: 1558.0 USD
Availability: OutOfStock

SKU 1175-6-125-A

Sold out

$1,558.00 - $1,558.00

$1,558.00

$1,558.00 - $1,558.00

$1,558.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1175 Series 4VANE Motorized Hose Reel 1 in. x 125 ft. - No Hose 3000 PSI Model 1175-6-125-Aair

COXREELS® 1175 Series hand crank and motorized hose reels are an industry preferred design built with a larger chassis for larger hose capacities and hose diameters. They feature a sturdy one piece all welded “A” frame base, low profile outlet riser and open drum slot design for smooth, even hose wraps around the drum.

The Coxreels 1175-6-125-A Compressed Air Motor Rewind Hose Reel handles an extended 1" I.D. high-flow hose layout up to a 125' capacity, relying on a premium aluminum body 4-vane pneumatic Gast motor to fully automate retrieval. Supplied less hose and rated at 3000 PSI, this high-volume pneumatic assembly replaces direct gears with a heavy-torque chain and sprocket drive loop paired with an inline nickel-plated steel 90° swivel and chemical-tough AFLAS® seals.

Features & Benefits

4-Vane Compressed Air Gast Motor Drive: Driven by an industrial pneumatic 4-vane air motor running a robust chain and sprocket drive system to recover a full high-volume hose load smoothly and efficiently without chain maintenance or spark ignition risks.
Nickel-Plated Steel Swivel & AFLAS® Seals: Upgraded with a high-strength nickel-plated steel 90° full-flow NPT swivel inlet paired with robust AFLAS® seals, engineered to deliver premium wear resistance and excellent fluid compatibility.
Robotic 12-Gauge "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to provide a superior, vibration-resistant reel structure.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings support the large drum shaft to ensure exceptionally smooth rotation and trouble-free mechanical operation.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and completely smooth hose wrap across the drum surface.
Adjustable Tension Brake: Features an integrated drag brake to customize drum resistance, effectively preventing accidental line unspooling or free-wheeling during heavy-duty motorized payout or transport.
Proprietary CPC™ Powder Coat: Shielded by a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for a professional-grade appearance that withstands severe commercial use.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
