Coxreels 1175 Series Bevel Geared Hand Crank Hose Reel 1 in. x 100 ft. - No Hose 3000 PSI Model 1175-6-100-C

Name: Coxreels 1175 Series Bevel Geared Hand Crank Hose Reel 1 in. x 100 ft. - No Hose 3000 PSI Model 1175-6-100-C
Brand: Cox Reels
SKU: 1175-6-100-C
Price: 1029.0 USD
Availability: OutOfStock

SKU 1175-6-100-C

Sold out

$1,029.00 - $1,029.00

$1,029.00

$1,029.00 - $1,029.00

$1,029.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

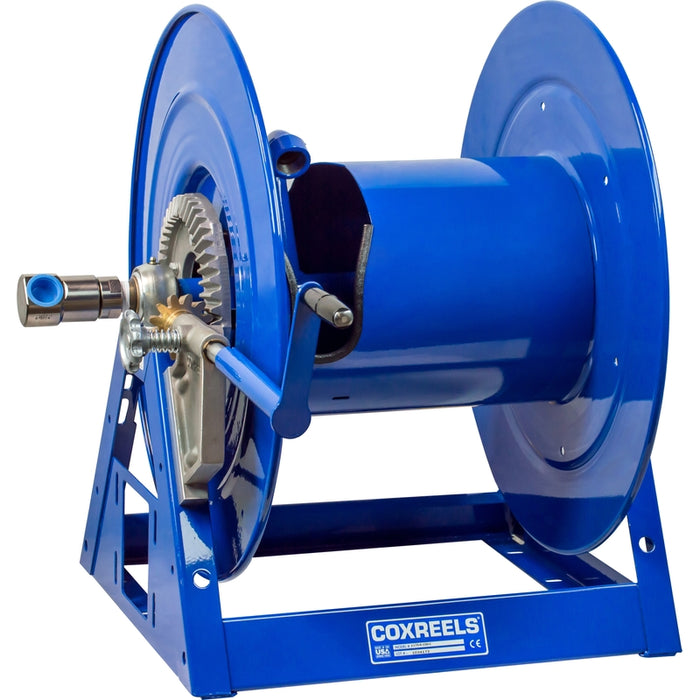

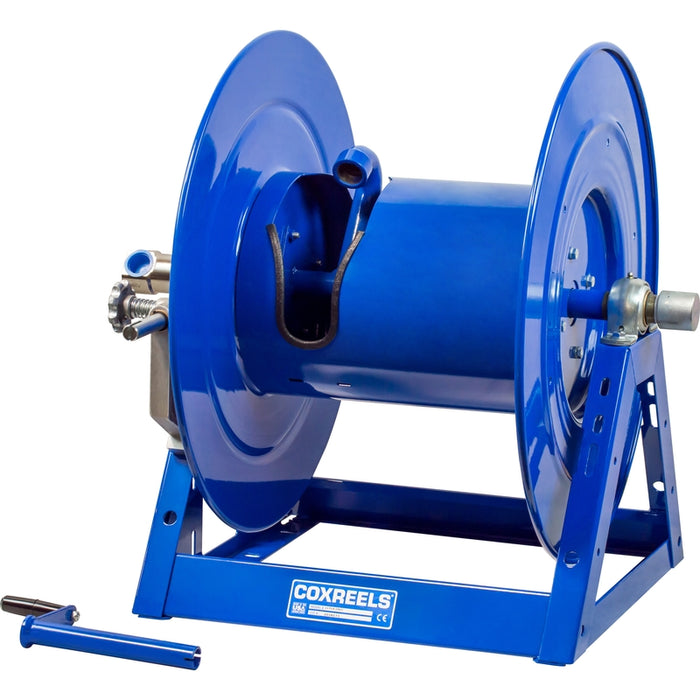

Coxreels 1175 Series Bevel Geared Hand Crank Hose Reel 1 in. x 100 ft. - No Hose 3000 PSI Model 1175-6-100-C

COXREELS® 1175 Series hand crank and motorized hose reels are an industry preferred design built with a larger chassis for larger hose capacities and hose diameters. They feature a sturdy one piece all welded “A” frame base, low profile outlet riser and open drum slot design for smooth, even hose wraps around the drum.

The Coxreels 1175-6-100-C Bevel Geared Crank Rewind Hose Reel features an integrated front bevel geared mechanical crank assembly to reduce user effort while rewinding extended 1" I.D. high-flow lines. Built with an expanded drum chassis to support up to a 100' capacity and rated for a working pressure of 3000 PSI, this heavy-duty manual model runs on smooth self-aligning bearings and leverages gear reduction to maximize operator leverage. Supplied less hose.

Features & Benefits

Front Bevel Geared Crank Assembly: Features a high-efficiency front bevel gear mechanical crank drive paired with a smooth round handle, offering a distinct gear reduction advantage to significantly lower operator physical strain during line retrieval cycles.
Nickel-Plated Steel Swivel & AFLAS® Seals: Upgraded with a high-strength nickel-plated steel 90° full-flow NPT swivel inlet paired with robust AFLAS® seals, engineered to deliver premium wear resistance and excellent chemical compatibility.
Robotic 12-Gauge "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to provide a superior, vibration-resistant reel structure.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings support the large drum shaft to ensure exceptionally smooth rotation and trouble-free mechanical operation.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and completely smooth hose wrap across the drum surface.
Adjustable Tension Brake & Lock Pin: Features an integrated drag brake to customize draw resistance and prevent free-wheeling, paired with a long-handled locking pin to safely secure the reel from rotation during transport or storage.
Proprietary CPC™ Powder Coat: Shielded by a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for a professional-grade appearance that withstands severe commercial use.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
