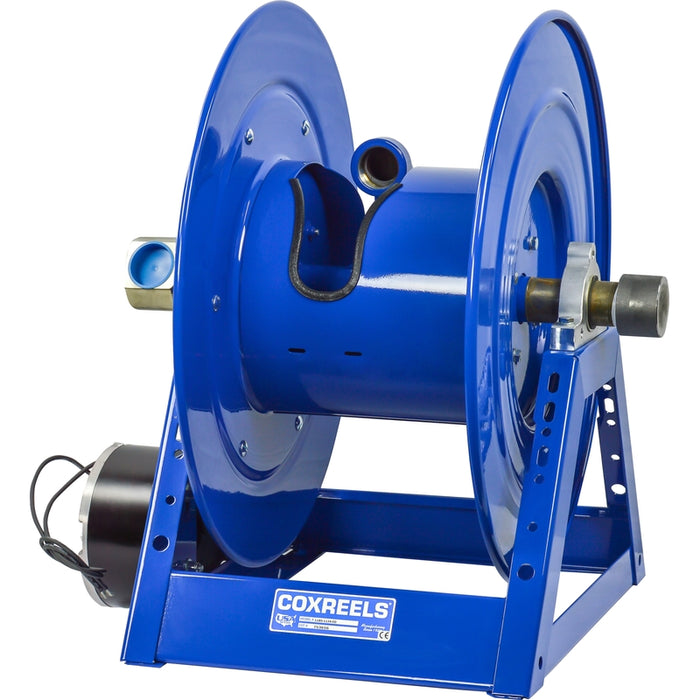

Coxreels 1185-BUXX Series 12V DC 1/3HP Motorized Hose Reel 1-1/2 in. x 150 ft. - No Hose 3000 PSI Model 1185-2528-E-BUXX

Name: Coxreels 1185-BUXX Series 12V DC 1/3HP Motorized Hose Reel 1-1/2 in. x 150 ft. - No Hose 3000 PSI Model 1185-2528-E-BUXX
Brand: Cox Reels
SKU: 1185-2528-E-BUXX
Price: 2384.0 USD
Availability: OutOfStock

SKU 1185-2528-E-BUXX

Sold out

$2,384.00 - $2,384.00

$2,384.00

$2,384.00 - $2,384.00

$2,384.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1185-BUXX Series 12V DC 1/3HP Motorized Hose Reel 1-1/2 in. x 150 ft. - No Hose 3000 PSI Model 1185-2528-E-BUXX

COXREELS® 1185 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a noncrimping, flat smooth hose wrap. The sturdy all welded “A” frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

The Coxreels 1185-2528-E-BUXX Electric Motor Rewind Hose Reel is standard equipped with a non-explosion proof 12V DC, 1/3 HP reversible electric motor, built to handle an extended large-diameter 1-1/2" I.D. high-pressure hose layout up to a massive 150' capacity. Supplied less hose and rated for an upgraded fluid pressure of 3000 PSI, this power reel couples its electric motor loop via a heavy-duty chain and sprocket drive loop, backed by an external electroless nickel-plated steel 90° full-flow swivel inlet with chemical-tough AFLAS® seals.

Features & Benefits

12V DC Electric Motor Drive: Powered by a high-torque 12V DC, 1/3 HP reversible electric motor circuit running a rugged chain and sprocket drive system, engineered to retrieve oversized 1-1/2" high-pressure hose lines safely up to 150 feet.
Upgraded 3000 PSI Fluid Rating: Specially re-engineered with an elevated 3000 PSI pressure threshold to support high-pressure chemical dosing, fuel delivery, or harsh spray applications with 1-1/2" I.D. lines.
Upgraded 90° Swivel & AFLAS® Seals: Equipped with an external electroless nickel-plated steel 90° full-flow NPT swivel inlet featuring internal ball bearings and premium AFLAS® seals for low friction and superb chemical resistance.
Robotic 12-Gauge "A" Frame Base: Anchored by a sturdy, one-piece all-CNC robotically welded 12-Gauge steel "A" frame base (not bolted) for superior rigidity under heavy weight loads.
Robust Surface Mount Bearings: Supported by heavy horizontal surface mount pillow block bearings to distribute weight loads evenly and ensure smooth rotation during mechanical line retrieval.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and completely smooth hose wrap across the drum surface.
Adjustable Tension Brake: Features an integrated drag brake to customize drum resistance, effectively preventing accidental line unspooling or free-wheeling during heavy-duty motorized payout or transport.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
