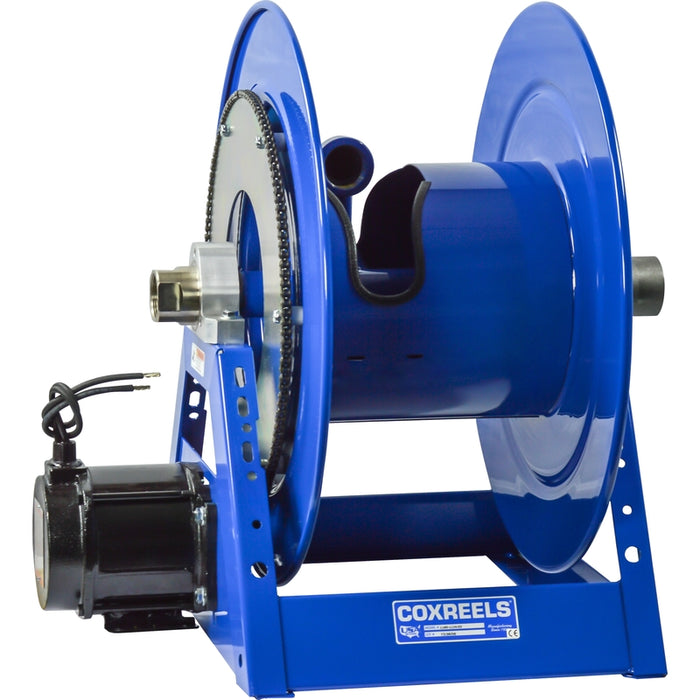

Coxreels 1185 Series 115V AC 1/2HP Motorized Hose Reel 1-1/2 in. x 250 ft. - No Hose 1500 PSI Model 1185-3328-EA

Name: Coxreels 1185 Series 115V AC 1/2HP Motorized Hose Reel 1-1/2 in. x 250 ft. - No Hose 1500 PSI Model 1185-3328-EA
Brand: Cox Reels
SKU: 1185-3328-EA
Price: 2151.0 USD
Availability: OutOfStock

SKU 1185-3328-EA

Sold out

$2,151.00 - $2,151.00

$2,151.00

$2,151.00 - $2,151.00

$2,151.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1185 Series 115V AC 1/2HP Motorized Hose Reel 1-1/2 in. x 250 ft. - No Hose 1500 PSI Model 1185-3328-EA

Coxreels 1185 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a noncrimping, flat smooth hose wrap. The sturdy all welded “A” frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

The Coxreels 1185-3328-EA Electric AC Motor Rewind Hose Reel is engineered for high-volume delivery, performing reliably at working pressures up to 1,500 PSI. Supplied less hose, this model features an expanded fluid path with a 250' capacity for a massive 1-1/2" I.D. hose and is powered by an explosion-proof electrical 115V AC, 1/2 HP reversible, AC-rectified motor. Driven by a dependable chain and sprocket system, it is ideally suited for hazardous or high-capacity commercial and industrial settings.

Features & Benefits

115V AC Explosion-Proof Motor: Powered by a heavy-duty 115V AC, 1/2 HP explosion-proof, reversible, AC-rectified electric motor matched with a reliable chain and sprocket drive for maximum safety and mechanical retraction.
In-Line Full-Flow Swivel: Built with an external fluid path featuring an in-line aluminum straight, full-flow NPT swivel inlet and high-quality Nitrile seals, allowing for simple seal maintenance and fast hose installation without removing the reel from its mount.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and perfectly smooth hose wrap.
12-Gage Welded "A" Frame Base: Constructed with a sturdy one-piece, all CNC robotically welded 12-gage steel "A" frame base—not bolted—to ensure superior structural integrity and handle the extra weight of large-diameter hoses.
Permanent Lubricated Bearings: Outfitted with robust, lubricated horizontal surface mount bearings to drastically reduce friction and ensure easy drum rotation during deployment.
CNC Robotically Spun Discs: Heavy-duty, robotically spun and ribbed discs feature safety rolled edges to maximize structural strength, eliminate hose wear, and optimize operator safety.
Adjustable Tension Brake: Features an integrated drag brake that allows you to easily customize the speed of the draw, completely preventing the reel from free-wheeling during operation, transport, or storage.
Proprietary CPC™ Powder Coat: Shielded with a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for premium defense against harsh environmental wear and tear.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
