Coxreels 1185 Series 24V DC 1/2HP Motorized Hose Reel 1-1/2 in. x 50 ft. - No Hose 1500 PSI Model 1185-1124-EB

Name: Coxreels 1185 Series 24V DC 1/2HP Motorized Hose Reel 1-1/2 in. x 50 ft. - No Hose 1500 PSI Model 1185-1124-EB
Brand: Cox Reels
SKU: 1185-1124-EB
Price: 1821.0 USD
Availability: OutOfStock

SKU 1185-1124-EB

Sold out

$1,821.00 - $1,821.00

$1,821.00

$1,821.00 - $1,821.00

$1,821.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1185 Series 24V DC 1/2HP Motorized Hose Reel 1-1/2 in. x 50 ft. - No Hose 1500 PSI Model 1185-1124-EB

COXREELS® 1185 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded “A” frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

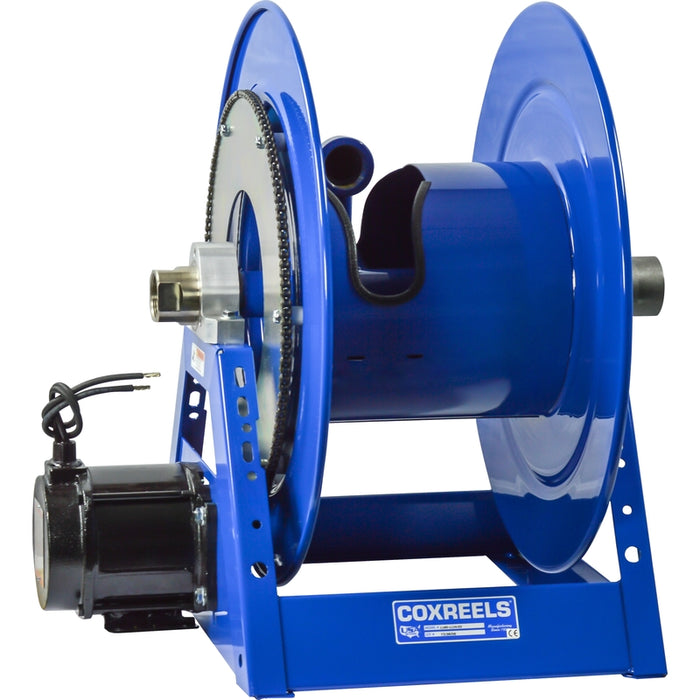

The Coxreels 1185-1124-EB Electric Motor Rewind Hose Reel is standard equipped with a high-torque 24V DC, 1/3 HP explosion-proof reversible electric motor, built to handle a large-diameter 1-1/2" I.D. hose layout up to a 50' capacity. Supplied less hose and rated for a working pressure of 1500 PSI, this automated reel connects its electrical motor loop via a heavy-duty chain and sprocket drive loop, backed by an inline electroless nickel-plated steel full-flow swivel path and premium Nitrile seals.

Features & Benefits

24V DC Explosion-Proof Motor Drive: Powered by a specialized 24V DC, 1/3 HP explosion-proof reversible electric motor combined with a durable chain and sprocket drive configuration, providing high torque for steady, mechanical hose retraction.
In-Line Nickel-Plated Steel Swivel: Equipped with an inline electroless nickel-plated steel straight full-flow swivel for low friction and fast hose installation with simple seal maintenance without removing the reel from its mount.
Robotic 1/4" Thick Steel "A" Frame Base: Anchored by an ultra-thick, one-piece all-CNC robotically welded 1/4" steel "A" frame base (not bolted) for superior, non-bending rigidity under high weight loads.
Robust Surface Mount Bearings: Supported by heavy horizontal surface mount pillow block bearings to distribute weight loads evenly and ensure smooth rotation during mechanical line retrieval.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and completely smooth hose wrap across the drum surface.
Adjustable Tension Brake: Features an integrated drag brake to customize drum resistance, effectively preventing accidental line unspooling or free-wheeling during heavy-duty motorized payout or transport.
Proprietary CPC™ Powder Coat: Shielded by a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for a professional-grade appearance that withstands severe commercial use.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
