Coxreels 1195-BUXX Series 115V AC 1/2HP Motorized Hose Reel 2 in. x 90 ft. - No Hose 1500 PSI Model 1195-2428-EAV3-BUXX

Name: Coxreels 1195-BUXX Series 115V AC 1/2HP Motorized Hose Reel 2 in. x 90 ft. - No Hose 1500 PSI Model 1195-2428-EAV3-BUXX
Brand: Cox Reels
SKU: 1195-2428-EAV3-BUXX
Price: 3627.0 USD
Availability: OutOfStock

SKU 1195-2428-EAV3-BUXX

Sold out

$3,627.00 - $3,627.00

$3,627.00

$3,627.00 - $3,627.00

$3,627.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1195-BUXX Series 115V AC 1/2HP Motorized Hose Reel 2 in. x 90 ft. - No Hose 1500 PSI Model 1195-2428-EAV3-BUXX

COXREELS® 1195 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a noncrimping, flat smooth hose wrap. The sturdy all welded “A” frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

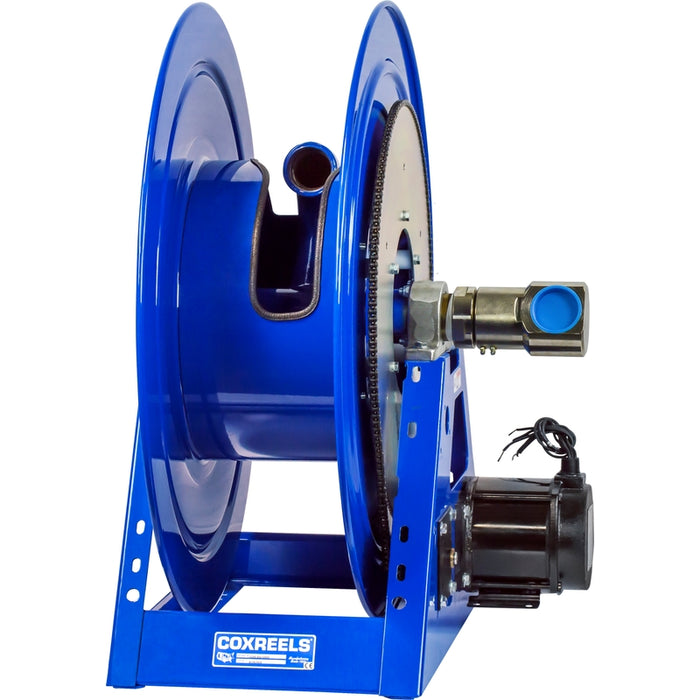

The Coxreels 1195-2428-EAV3-BUXX Explosion-Proof Motor Rewind Hose Reel is equipped with a high-performance 115V AC, 1/2 HP explosion-proof reversible AC rectified electric motor, built to manage an oversized 2" I.D. hose layout up to a 90' capacity. Supplied less hose and rated for an upgraded fluid pressure of 1500 PSI, this high-safety automated reel couples its electrical power loop via a robust chain and sprocket drive system containing an integrated 1:3 ratio mechanical idler gear reduction system to achieve smooth mechanical line retrieval in hazardous workspaces, backed by an external electroless nickel-plated steel 90° full-flow swivel path with chemical-tough AFLAS® seals.

Features & Benefits

115V AC Explosion-Proof Motor Drive: Outfitted with an industrial-grade, 115V AC, 1/2 HP reversible AC rectified motor built for safe automated recovery in hazardous environments. It utilizes a heavy-duty chain and sprocket configuration for smooth mechanical operation up to 90 feet.
1:3 Ratio Idler Gear Assembly: Features a mechanical 1:3 ratio idler gear reduction system built directly into the motorized drive assembly to optimize rewinding torque for massive, oil-heavy hose layers.
Upgraded 1500 PSI 2" I.D. Fluid Path: Specially re-engineered with an elevated 1500 PSI working threshold to support high-volume chemical transfers, large-scale fueling, or processing tasks with 2" fluid lines.
Upgraded 90° Swivel & AFLAS® Seals: Equipped with an external electroless nickel-plated steel 90° full-flow NPT swivel inlet featuring internal ball bearings and premium AFLAS® seals for low friction and superb chemical resistance.
Robotic 12-Gauge "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to provide a superior, vibration-resistant reel structure.
Robust Surface Mount Bearings: Supported by heavy horizontal surface mount bearings to distribute massive fluid loads evenly and ensure smooth rotation during motorized line retrieval.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and completely smooth hose wrap across the drum surface.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
