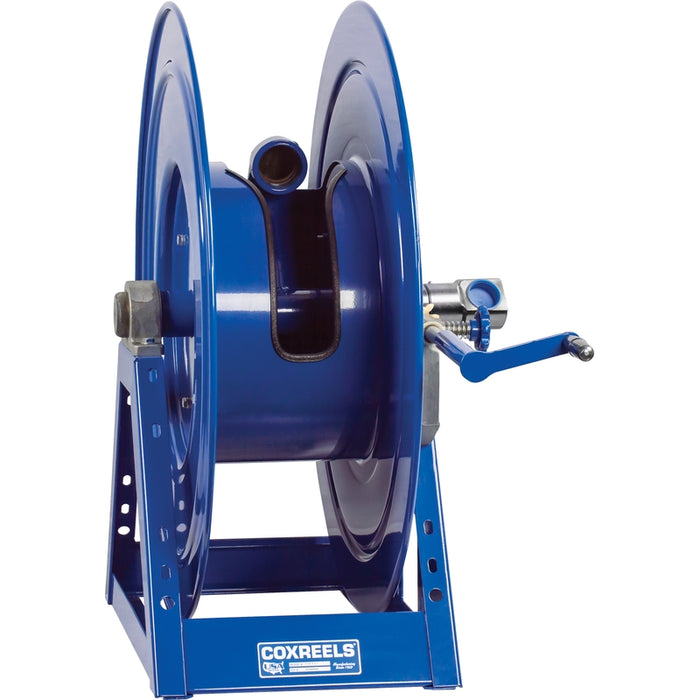

Coxreels 1195-BUXX Series Beveled Gear Hand Crank Hose Reel 2 in. x 115 ft. - No Hose 1500 PSI Model 1195-2032-C-BUXX

Name: Coxreels 1195-BUXX Series Beveled Gear Hand Crank Hose Reel 2 in. x 115 ft. - No Hose 1500 PSI Model 1195-2032-C-BUXX
Brand: Cox Reels
SKU: 1195-2032-C-BUXX
Price: 3004.0 USD
Availability: OutOfStock

SKU 1195-2032-C-BUXX

Sold out

$3,004.00 - $3,004.00

$3,004.00

$3,004.00 - $3,004.00

$3,004.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1195-BUXX Series Beveled Gear Hand Crank Hose Reel 2 in. x 115 ft. - No Hose 1500 PSI Model 1195-2032-C-BUXX

COXREELS® 1195 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a noncrimping, flat smooth hose wrap. The sturdy all welded “A” frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

The Coxreels 1195-2032-C-BUXX Beveled Gear Hand Crank Hose Reel features an integrated bevel geared mechanical crank assembly to provide high mechanical leverage when manually rewinding up to 115 feet of large 2" I.D. hose line. Rated for an upgraded 1500 PSI pressure limit and supplied less hose, this extra-high-volume manual model routes fluid through an external electroless nickel-plated steel 90° full-flow NPT swivel with ball bearings and resilient AFLAS® seals. Adaptors for Victaulic pipe fittings are available from the factory upon request.

Features & Benefits

Bevel Geared Mechanical Crank: Equipped with a premium bevel geared hand crank assembly with a smooth round handle, providing distinct gear reduction to significantly lower operator physical strain when recovering heavy 2" lines up to 115 feet.
Upgraded 1500 PSI 2" I.D. Fluid Path: Specially re-engineered with an elevated 1500 PSI working threshold to support high-volume chemical transfers, large-scale fueling, or processing tasks with 2" fluid lines.
Upgraded 90° Swivel & AFLAS® Seals: Outfitted with an external electroless nickel-plated steel 90° full-flow NPT swivel inlet featuring internal ball bearings and premium AFLAS® seals for low friction and superb chemical resistance.
Robotic 12-Gauge "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to provide a superior, vibration-resistant reel structure.
Robust Surface Mount Bearings: Supported by heavy horizontal surface mount bearings to distribute massive fluid loads evenly and ensure smooth rotation during geared manual line retrieval.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and completely smooth hose wrap across the drum surface.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
