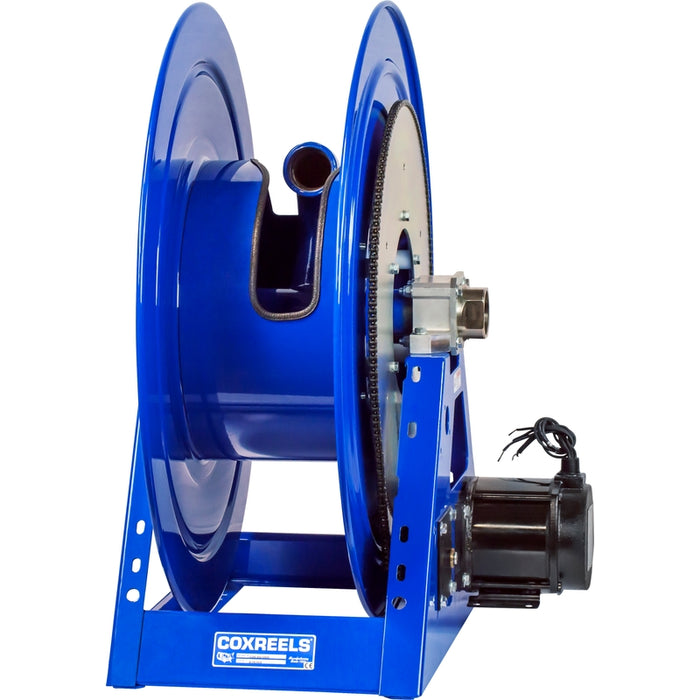

Coxreels 1195 Series 115V AC 1/2HP Motorized Hose Reel 2 in. x 125 ft. No Hose 1000 PSIModel 1195-3228-EAV3

Name: Coxreels 1195 Series 115V AC 1/2HP Motorized Hose Reel 2 in. x 125 ft. No Hose 1000 PSIModel 1195-3228-EAV3
Brand: Cox Reels
SKU: 1195-3228-EAV3
Price: 2526.0 USD
Availability: OutOfStock

SKU 1195-3228-EAV3

Sold out

$2,526.00 - $2,526.00

$2,526.00

$2,526.00 - $2,526.00

$2,526.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1195 Series 115V AC 1/2HP Motorized Hose Reel 2 in. x 125 ft. No Hose 1000 PSIModel 1195-3228-EAV3

COXREELS® 1195 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a noncrimping, flat smooth hose wrap. The sturdy all welded “A” frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

The Coxreels 1195-3228-EAV3 Explosion-Proof Motor Rewind Hose Reel is outfitted with a high-performance 115V AC, 1/2 HP explosion-proof reversible AC rectified electric motor, built to manage an extended 2" I.D. hose layout up to a massive 125' capacity. Supplied less hose and rated for a working pressure of 1000 PSI, this high-safety automated reel couples its electrical power loop via a robust chain and sprocket drive system containing an integrated 1:3 ratio mechanical idler gear reduction system to achieve safe, spark-free line retrieval in hazardous industrial zones.

Features & Benefits

115V AC Explosion-Proof Motor Drive: Outfitted with an industrial-grade, 115V AC, 1/2 HP reversible AC rectified motor built for safe automated recovery in hazardous environments. It utilizes a reliable chain and sprocket configuration for smooth mechanical operation up to 125 feet.
1:3 Ratio Idler Gear Assembly: Features a mechanical 1:3 ratio idler gear reduction system built directly into the motorized drive assembly to optimize rewinding torque for massive, oil-heavy hose layers.
High-Volume 2" I.D. Liquid Pathway: Engineered with full 2-inch internal components to accommodate maximum volume flow rates for severe fluid transfer applications.
Inline Nickel-Plated Steel Swivel: Features an inline electroless nickel-plated steel full-flow NPT swivel inlet designed for streamlined inline seal maintenance and fast, simple hose installation without removing the reel from its mount.
... [Row Continues into Sheet Core] ...
