Coxreels 1195 Series 12V DC 1/2HP Motorized Hose Reel 2 in. x 75 ft. - No Hose 1000 PSI Model 1195-1332-EDV3

Name: Coxreels 1195 Series 12V DC 1/2HP Motorized Hose Reel 2 in. x 75 ft. - No Hose 1000 PSI Model 1195-1332-EDV3
Brand: Cox Reels
SKU: 1195-1332-EDV3
Price: 2442.0 USD
Availability: OutOfStock

SKU 1195-1332-EDV3

Sold out

$2,442.00 - $2,442.00

$2,442.00

$2,442.00 - $2,442.00

$2,442.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1195 Series 12V DC 1/2HP Motorized Hose Reel 2 in. x 75 ft. - No Hose 1000 PSI Model 1195-1332-EDV3

COXREELS® 1195 Series hand crank and motor driven hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a noncrimping, flat smooth hose wrap. The sturdy all welded “A” frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

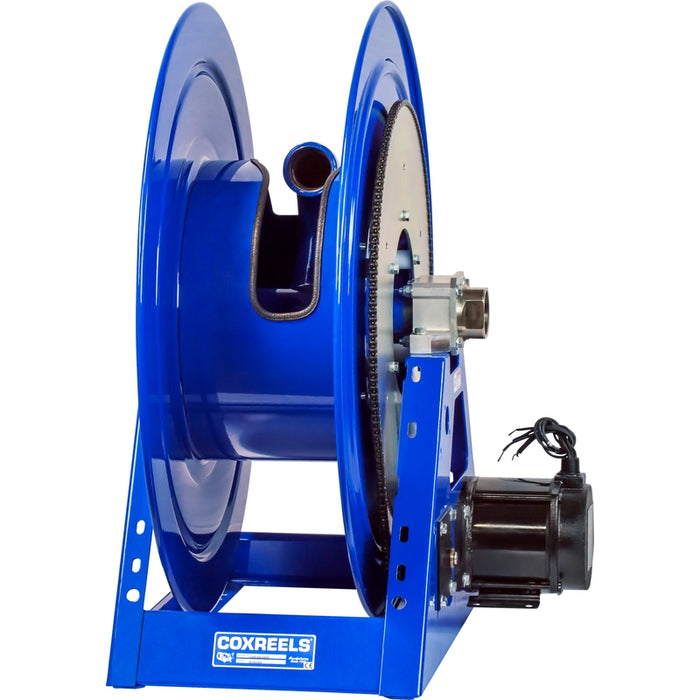

The Coxreels 1195-1332-EDV3 Electric Motor Rewind Hose Reel comes standard equipped with a high-torque 12V DC, 1/2 HP non-explosion proof reversible electric motor, built with an expanded chassis to support up to 75 feet of heavy 2" I.D. hose capacity. Supplied less hose and rated for a working pressure of 1000 PSI, this high-volume power model incorporates a specialized 1:3 ratio idler gear paired with a chain and sprocket drive loop to achieve smooth mechanical line retrieval on mobile field service vehicles or fluid transport trucks.

Features & Benefits

12V DC Electric Motor Drive: Powered by a high-torque 12V DC, 1/2 HP reversible electric motor circuit running a rugged chain and sprocket drive system, engineered to retrieve oversized 2" hose lines safely up to 75 feet.
1:3 Ratio Idler Gear Assembly: Features a mechanical 1:3 ratio idler gear reduction system built directly into the motorized drive assembly to optimize rewinding torque for massive, oil-heavy hose layers.
High-Volume 2" I.D. Liquid Pathway: Engineered with full 2-inch internal components to accommodate maximum volume flow rates for severe fluid transfer applications.
Inline Nickel-Plated Steel Swivel: Features an inline electroless nickel-plated steel full-flow NPT swivel inlet designed for streamlined inline seal maintenance and fast, simple hose installation without removing the reel from its mount.
Robotic 12-Gauge "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to provide a superior, vibration-resistant reel structure.
Robust Surface Mount Bearings: Supported by heavy horizontal surface mount bearings to distribute massive fluid loads evenly and ensure smooth rotation during motorized line retrieval.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and completely smooth hose wrap across the drum surface.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
