Description

Coxreels 1275HP Series Bevel Geared Crank Dual Hydraulic Hose Reel 1/4 in. x 135 ft. 10000 PSI 4 in. Drum - No Hose Model 1275HPL-4-8-C

COXREELS® 1275HP Series “Dual Hydraulic” hose reels have been uniquely engineered and redesigned to handle high-pressure twin-line hydraulic applications. They provide robust strength, stability, and high performance for dynamic emergency rescue systems and specialized hydraulic tooling networks.

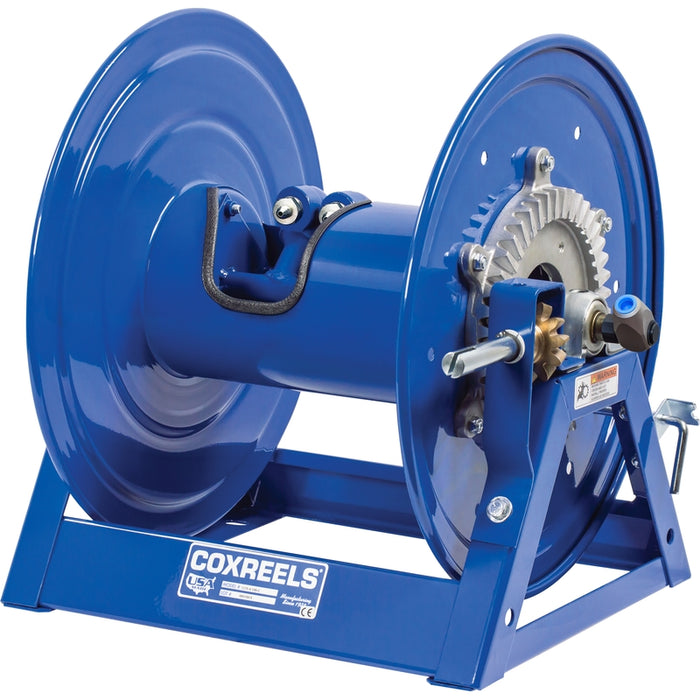

The Coxreels 1275HPL-4-8-C Dual Hose Hand Crank Reel is designed with an integrated front bevel geared mechanical crank assembly to reduce user effort while rewinding extended high-pressure line configurations. It cleanly handles a twin 1/4" I.D. hose with a maximum capacity up to 135 feet. Rated for an extreme 10,000 PSI and supplied less hose, this manual model runs on smooth horizontal surface mount bearings and leverages gear reduction to maximize operator leverage, complete with twin melanized steel swivel inlets.

Features & Benefits

Front Bevel Geared Crank Assembly: Features a high-efficiency front bevel gear mechanical crank drive paired with a smooth round handle, offering a distinct gear reduction advantage to significantly lower operator physical strain during 135-foot twin line retrieval cycles.
Oversized 10,000 PSI Extreme Architecture: Specially rated to a maximum working pressure of 10,000 PSI, ideal for hydraulic rescue tools, high-pressure equipment, and critical industrial fluid circuits.
Dual Melanized Steel Swivels & Viton® Seals: Outfitted with two external fluid paths featuring 90° full-flow melanized steel swivels paired with Viton® compound seals for optimal resistance against wear and fluid degradation.
Robotic 12-Gauge "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to enhance structure and durability during intense operation.
Two Low-Profile Outlet Risers: Features two exclusive low-profile outlet risers and an open drum slot design, providing a non-crimping, flat, and completely smooth double hydraulic hose wrap.
Adjustable Tension Brake & Lock Pin: Features an integrated drag brake to customize draw resistance and prevent free-wheeling, paired with a long-handled locking pin to safely secure the reel from rotation during transport or storage.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
