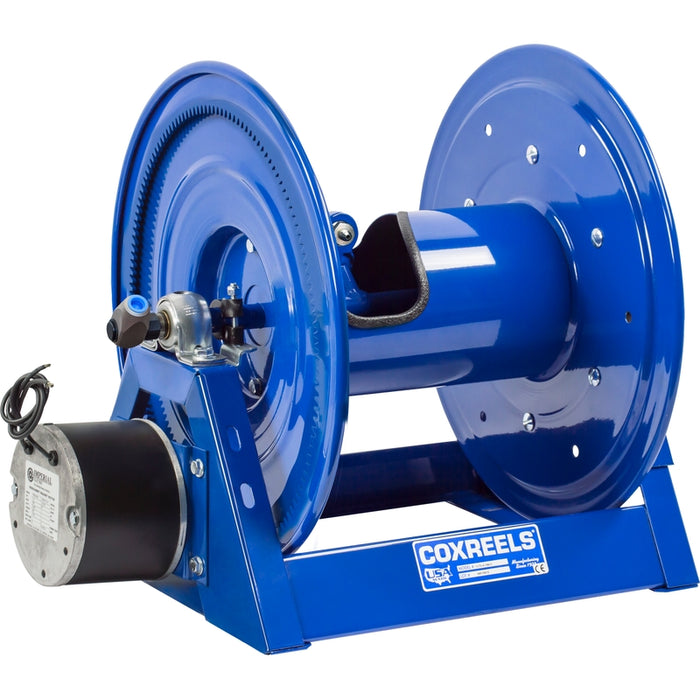

Coxreels 1275HP Series Dual Hydraulic Air Motorized Hose Reel 1/4 in. x 200 ft. - 1/4 in. BSP Female - 10000 PSI No Hose Model 1275HPL-C-12-A

Name: Coxreels 1275HP Series Dual Hydraulic Air Motorized Hose Reel 1/4 in. x 200 ft. - 1/4 in. BSP Female - 10000 PSI No Hose Model 1275HPL-C-12-A
Brand: Cox Reels
SKU: 1275HPL-C-12-A
Price: 1586.0 USD
Availability: OutOfStock

SKU 1275HPL-C-12-A

Sold out

$1,586.00 - $1,586.00

$1,586.00

$1,586.00 - $1,586.00

$1,586.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1275HP Series Dual Hydraulic Air Motorized Hose Reel 1/4 in. x 200 ft. - 1/4 in. BSP Female - 10000 PSI No Hose Model 1275HPL-C-12-A

COXREELS® 1275HP Series “Dual Hydraulic” hose reels have been uniquely engineered and redesigned to handle high-pressure twin-line hydraulic applications. They provide robust strength, stability, and high performance for dynamic emergency rescue systems and specialized hydraulic tooling networks.

The Coxreels 1275HPL-C-12-A Compressed Air Motor Rewind Reel features two exclusive low-profile **1/4" BSP female** outlet risers built into its drum core to accommodate specific rescue-circuit connections. Automated by a premium aluminum body 4-vane pneumatic Gast air motor running a chain-free direct gear loop, this unit (supplied less hose) easily manages up to 200 feet of twin 1/4" I.D. line. All fluid flow routes through dual external 90° full-flow swivels constructed from melanized steel and lined with premium Viton® seals.

Features & Benefits

Integrated 1/4" BSP Female Outlet Risers: Specifically outfitted with two exclusive low-profile 1/4" BSP female outlets paired with an open drum slot design, providing a non-crimping, flat, and completely smooth double hose wrap.
4-Vane Compressed Air Gast Motor Drive: Driven by an industrial pneumatic 4-vane air motor combined with a direct gear drive system to recover up to 200 feet of full high-pressure twin hose loads smoothly without spark ignition risks.
Dual Melanized Steel Swivels & Viton® Seals: Outfitted with two external fluid paths featuring 90° full-flow melanized steel swivels paired with Viton® compound seals for optimal resistance against wear and fluid degradation.
Robotic 12-Gauge "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to enhance structure and durability during intense operation.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings support the drum shaft to ensure exceptionally smooth rotation and trouble-free mechanical operation.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
