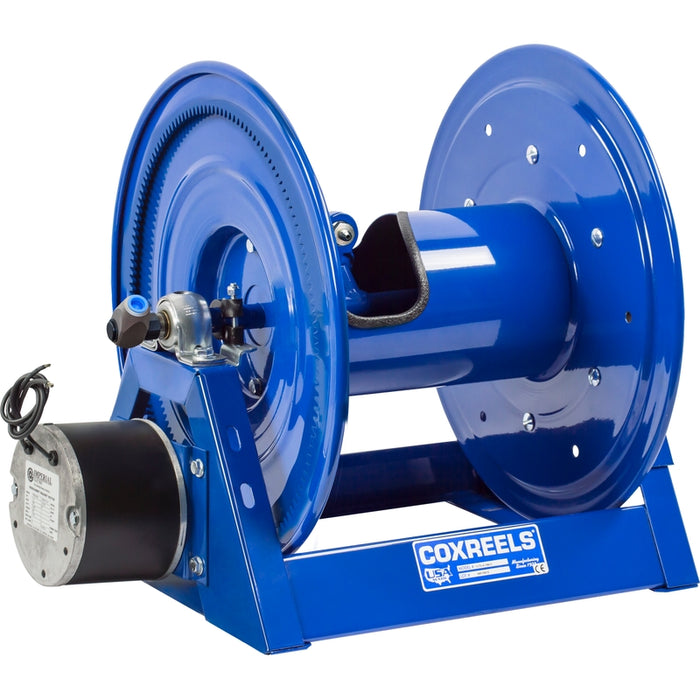

Coxreels 1275HP Series Electric Motorized Dual Hydraulic Hose Reel 1/4 in. x 135 ft. 10000 PSI Standard Drum - No Hose Model 1275HPL-A-8-E

Name: Coxreels 1275HP Series Electric Motorized Dual Hydraulic Hose Reel 1/4 in. x 135 ft. 10000 PSI Standard Drum - No Hose Model 1275HPL-A-8-E
Brand: Cox Reels
SKU: 1275HPL-A-8-E
Price: 1461.0 USD
Availability: OutOfStock

SKU 1275HPL-A-8-E

Sold out

$1,461.00 - $1,461.00

$1,461.00

$1,461.00 - $1,461.00

$1,461.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1275HP Series Electric Motorized Dual Hydraulic Hose Reel 1/4 in. x 135 ft. 10000 PSI Standard Drum - No Hose Model 1275HPL-A-8-E

COXREELS® 1275HP Series “Dual Hydraulic” hose reels have been uniquely engineered and redesigned to handle high-pressure twin-line hydraulic applications. They provide robust strength, stability, and high performance for dynamic emergency rescue systems and specialized hydraulic tooling networks.

The Coxreels 1275HPL-A-8-E Dual Hose Electric Motor Rewind Reel features two exclusive low-profile **-4 JIC male** outlet risers built into its drum core to accommodate specific rescue-circuit connections. Automated by a high-torque 12V DC, 1/3 HP reversible electric motor circuit running a chain-free direct gear loop, this 10,000 PSI unit (supplied less hose) easily manages up to 135 feet of twin 1/4" I.D. line. All fluid flow routes through dual external 90° full-flow swivels constructed from melanized steel and lined with premium Viton® seals.

Features & Benefits

Integrated -4 JIC Male Outlet Risers: Specifically outfitted with two exclusive low-profile -4 JIC male outlets paired with an open drum slot design, providing a non-crimping, flat, and completely smooth double hose wrap.
12V DC Electric Motor Drive: Powered by a high-torque 12V DC, 1/3 HP reversible electric motor circuit running a chain-free direct gear system, engineered to retrieve high-pressure dual lines safely up to 135 feet.
Oversized 10,000 PSI Extreme Architecture: Specially rated to a maximum working pressure of 10,000 PSI, ideal for hydraulic rescue tools, high-pressure equipment, and critical industrial fluid circuits.
Dual Melanized Steel Swivels & Viton® Seals: Outfitted with two external fluid paths featuring 90° full-flow melanized steel swivels paired with Viton® compound seals for optimal resistance against wear and fluid degradation.
Robotic 12-Gauge "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to enhance structure and durability during intense operation.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings support the drum shaft to ensure exceptionally smooth rotation and trouble-free mechanical operation.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
