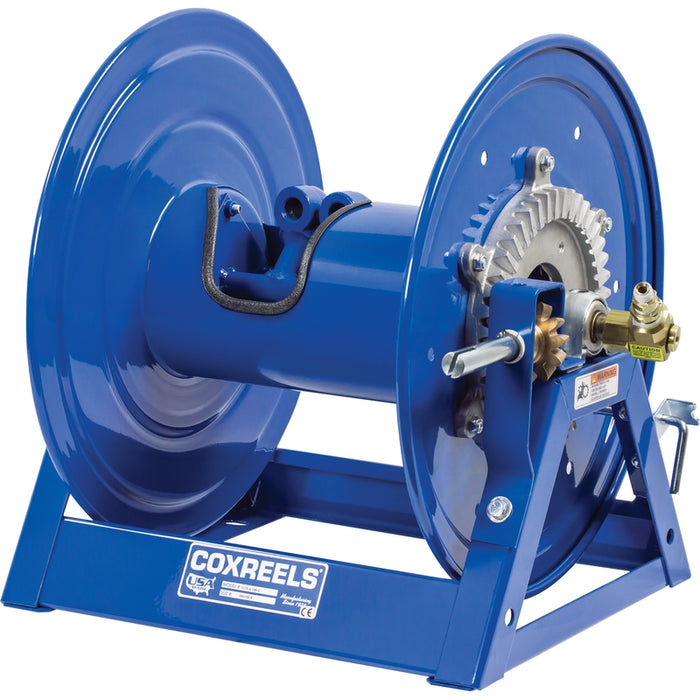

Coxreels 1275W Series Bevel Geared Hand Crank Welding Dual Hose Reel 3/8 in. x 250 ft. - No Hose Model 1275WL-3-250-C

Name: Coxreels 1275W Series Bevel Geared Hand Crank Welding Dual Hose Reel 3/8 in. x 250 ft. - No Hose Model 1275WL-3-250-C
Brand: Cox Reels
SKU: 1275WL-3-250-C
Price: 902.0 USD
Availability: OutOfStock

SKU 1275WL-3-250-C

Sold out

$902.00 - $902.00

$902.00

$902.00 - $902.00

$902.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1275W Series Bevel Geared Hand Crank Welding Dual Hose Reel 3/8 in. x 250 ft. - No Hose Model 1275WL-3-250-C

COXREELS® 1275W Series hand crank or motorized welding hose reels are built to manage long lengths of bulky twin-line welding hose. The direct bevel gear drive, low profile outlet riser and open drum slot design are features greatly appreciated by the regular user. Dual brass swivel inlets on each side of the reel assure full flow trouble free performance.

The Coxreels 1275WL-3-250-C Dual Hose Hand Crank Welding Reel delivers an extra-extended 250' manual twin-line gas storage system optimized with a front bevel geared mechanical crank in a dedicated "less hose" model. Rated for 200 PSI for oxy-acetylene and Grade T welding lines, this manual reel utilizes a high gear reduction configuration to drastically lower user exertion during reclamation of heavy dual line layers across extensive manufacturing environments. Supplied less hose.

Features & Benefits

Front Bevel Geared Crank Assembly: Features a high-efficiency front bevel gear mechanical crank drive paired with a smooth round handle, offering a distinct gear reduction advantage to significantly lower operator physical strain during 250-foot twin line retrieval cycles.
Oxy-Acetylene Dual Brass Swivels: Equipped with dual machined from solid brass 90° full-flow 3/8" NPT swivel inlets (one on each side) paired with robust Viton® seals for quick gas hose connection and hassle-free, secure operation.
Robotic 12-Gauge "A" Frame Base: Built upon a sturdy, one-piece, all-CNC robotically welded 12-Gauge steel "A" frame base that eliminates bolts to provide a superior, vibration-resistant reel structure.
Dual Low-Profile Outlet Risers: Outfitted with two exclusive low-profile outlet risers and an open drum slot design, providing a non-crimping, flat, and completely smooth twin line hose wrap.
Adjustable Tension Brake: Features an integrated drag brake to customize draw resistance and prevent free-wheeling, paired with a front bevel geared crank handle for easy manual line retrieval.
Proprietary CPC™ Powder Coat: Shielded by a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for a professional-grade appearance that withstands severe commercial use.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
