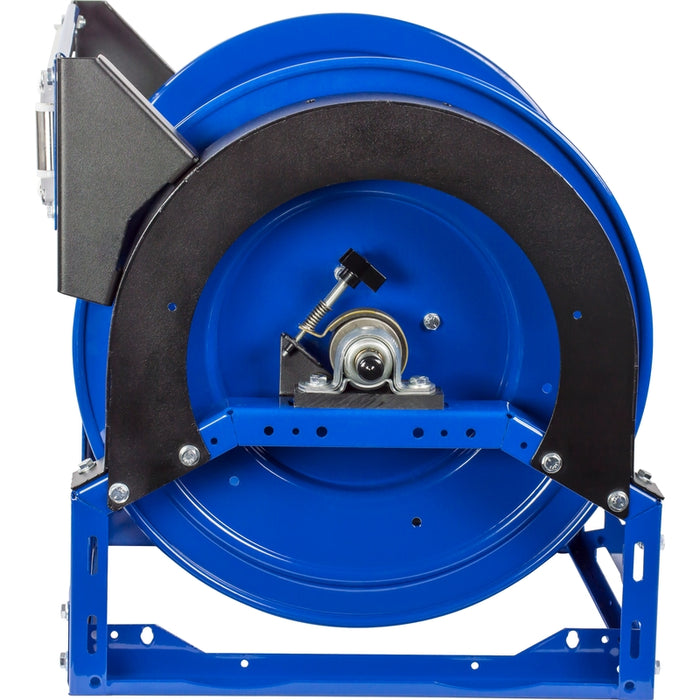

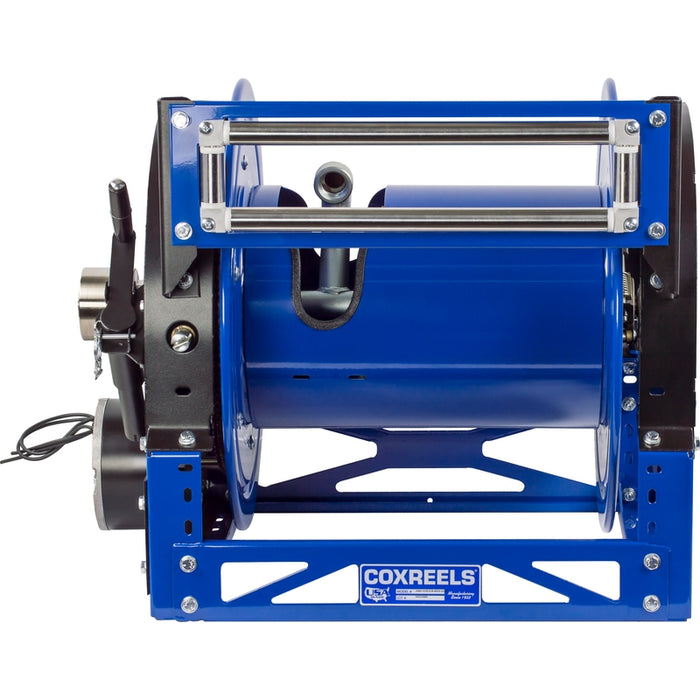

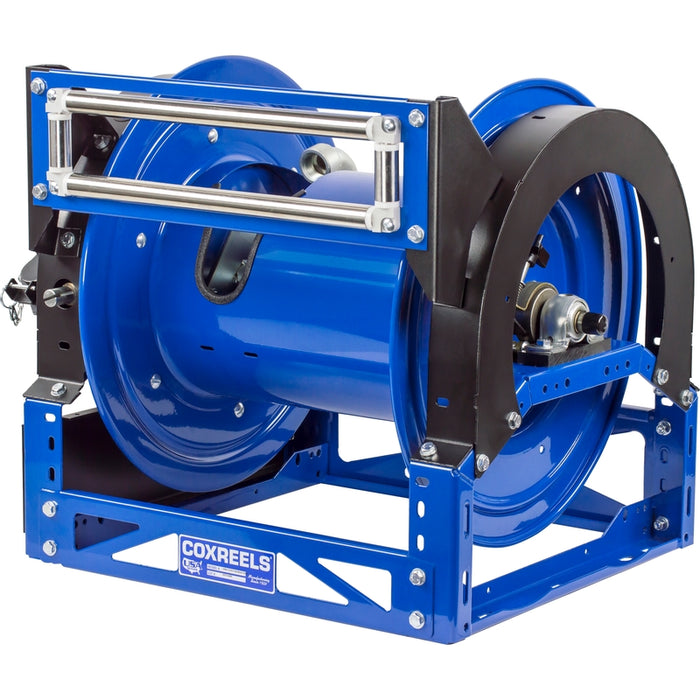

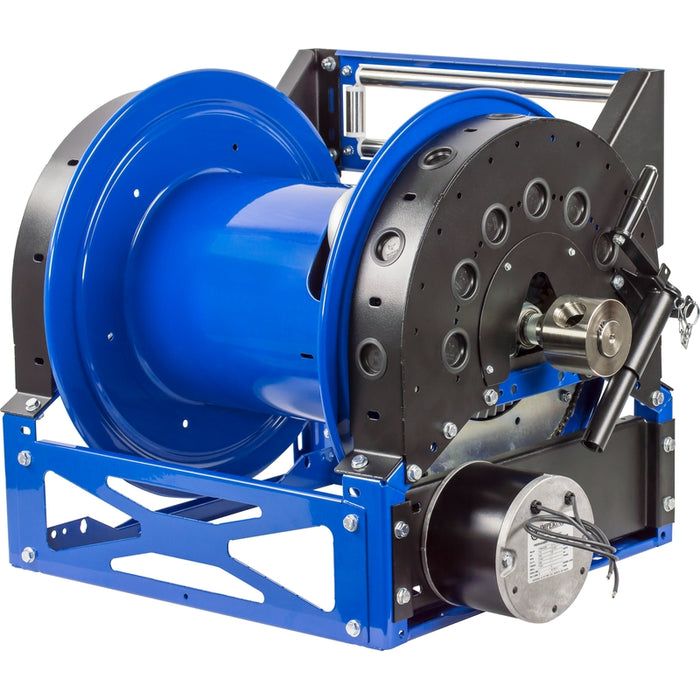

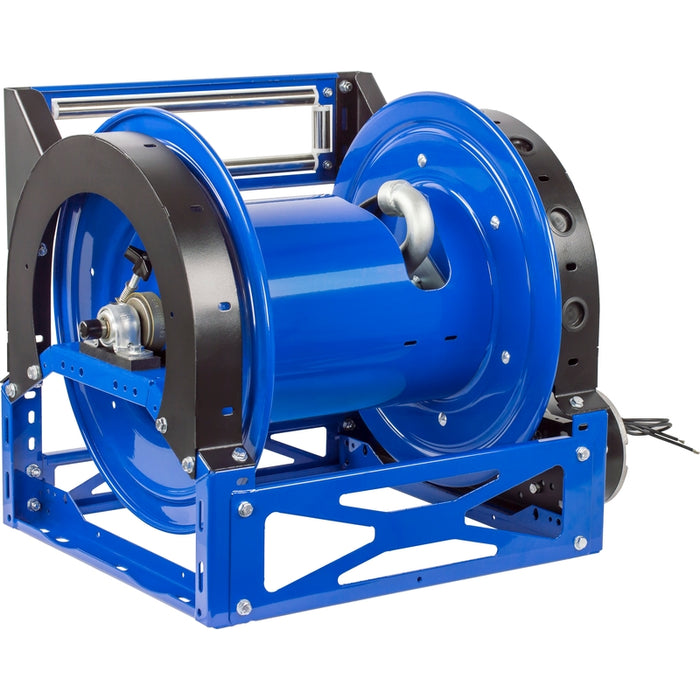

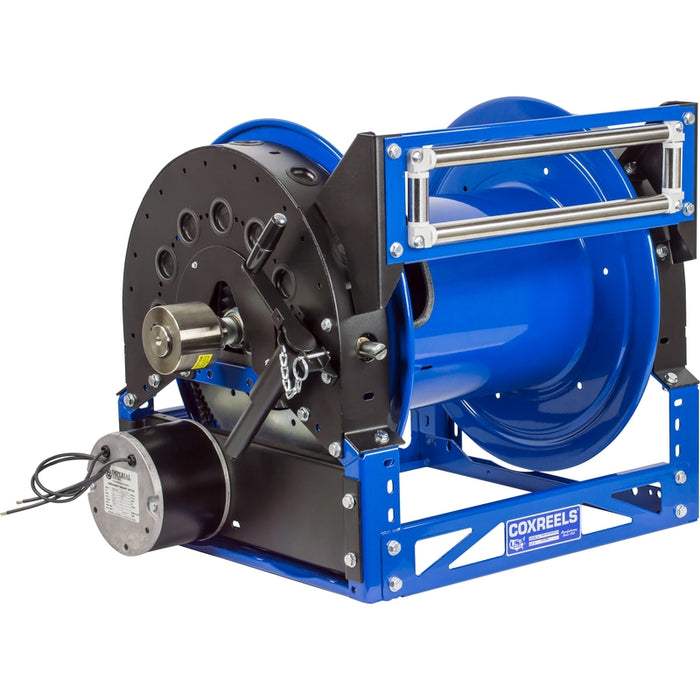

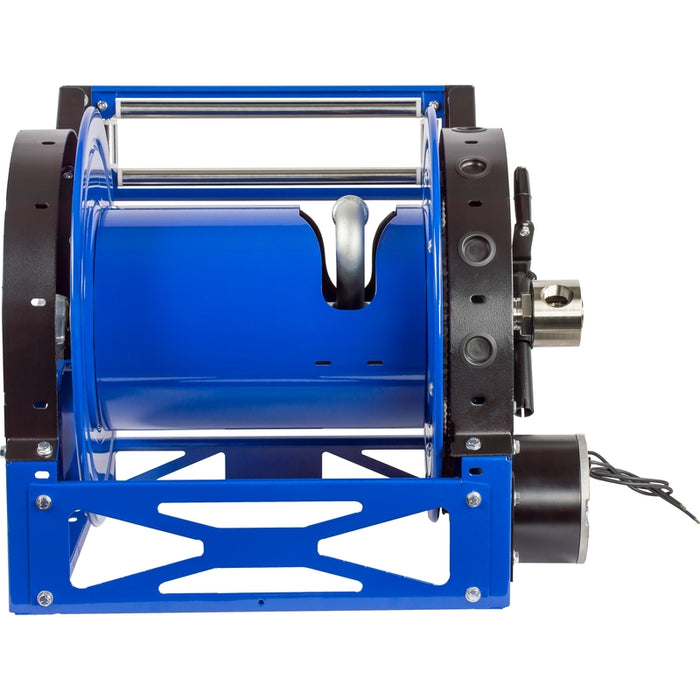

Coxreels 1600 Series 12V DC Motorized Hybrid Frame Hose Reel 1-1/2 in. x 35 ft. - No Hose Model 1680-1120-ED

Name: Coxreels 1600 Series 12V DC Motorized Hybrid Frame Hose Reel 1-1/2 in. x 35 ft. - No Hose Model 1680-1120-ED
Brand: Cox Reels
SKU: 1680-1120-ED
Price: 1729.0 USD
Availability: OutOfStock

SKU 1680-1120-ED

Sold out

$1,729.00 - $1,729.00

$1,729.00

$1,729.00 - $1,729.00

$1,729.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1600 Series 12V DC Motorized Hybrid Frame Hose Reel 1-1/2 in. x 35 ft. - No Hose Model 1680-1120-ED

COXREELS® 1600 Series features the most versatile symmetric reel design in the market today. This feature-rich reel series features nearly endless component configurations on a robust platform for any conceivable application. Targeted for the tough demands of customers requiring various dimensional choices, the series offers flexible size envelopes for any given hose capacity. The 1600 series hybrid frame offers unique accessories and upgrades which allow for application tailoring resulting in enhanced performance and usability.

The Coxreels 1680-1120-ED Explosion-Proof Motor Rewind Hose Reel is outfitted with a high-performance 12V DC, 1/2 HP explosion-proof reversible electric motor to automate recovery for up to 35 feet of large-diameter 1-1/2" I.D. line. Rated for 1500 PSI and supplied less hose, this high-safety utility reel connects its motor loop via a robust chain and sprocket drive system, supported by zinc-plated steel fluid lines and an inline nickel-plated steel swivel with Nitrile seals.

Features & Benefits

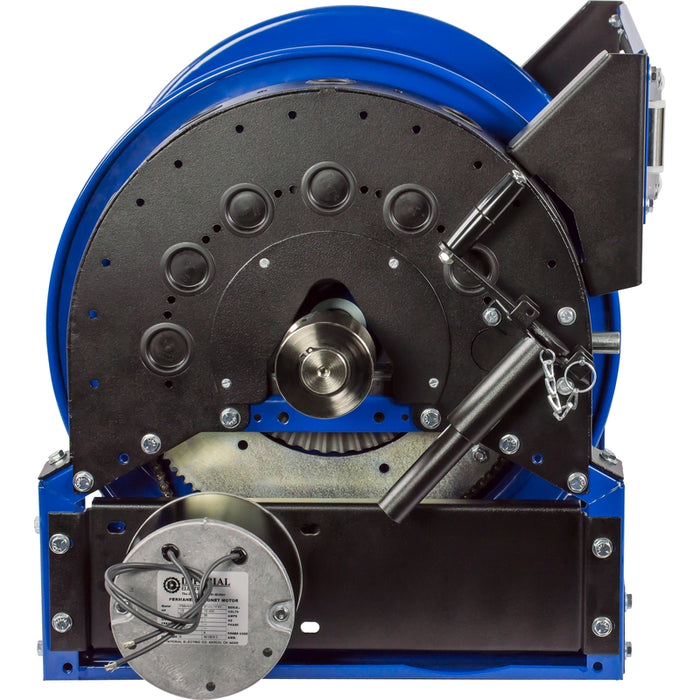

12V DC Explosion-Proof Motor Drive: Outfitted with an industrial-grade, 12V DC, 1/2 HP explosion-proof reversible motor engineered for safe automated recovery in hazardous environments. It utilizes a durable chain and sprocket configuration for smooth mechanical operation.
Large Volume 1-1/2" I.D. Architecture: Specifically engineered with an oversized internal fluid layout to route high-volume liquids, bulk air delivery, or high-capacity plant fueling solutions cleanly.
Inline Nickel-Plated Steel Swivel: Equipped with an inline nickel-plated steel straight full-flow NPT swivel inlet and zinc-plated steel piping for simple seal maintenance and low structural fluid friction.
Versatile 12-Gauge Steel Hybrid Frame: Features a sturdy, one-piece all-CNC robotically welded 12-Gauge steel hybrid structure with added bolt assemblies, offering upright vertical side panels for simple custom mounting and supreme chassis stability.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and completely smooth hose wrap across the drum surface.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings support the main axle to guarantee exceptionally smooth rotation and trouble-free mechanical operation.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
