Description

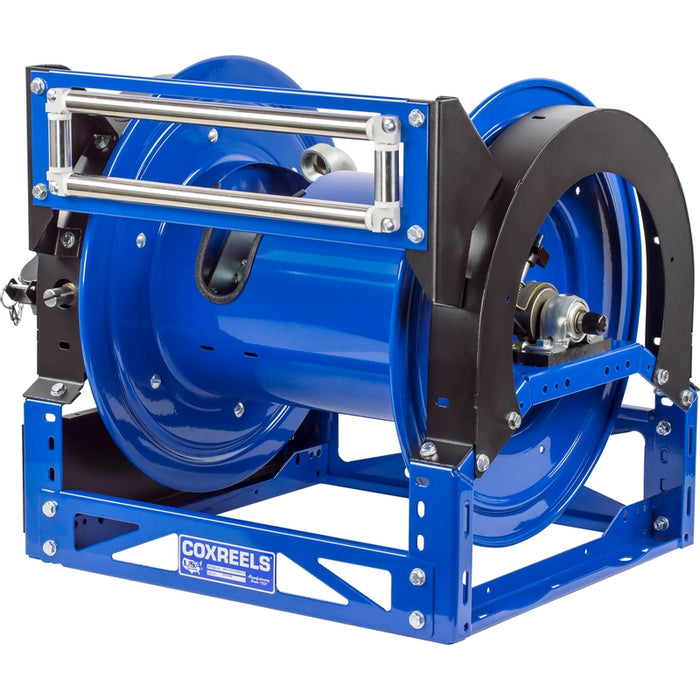

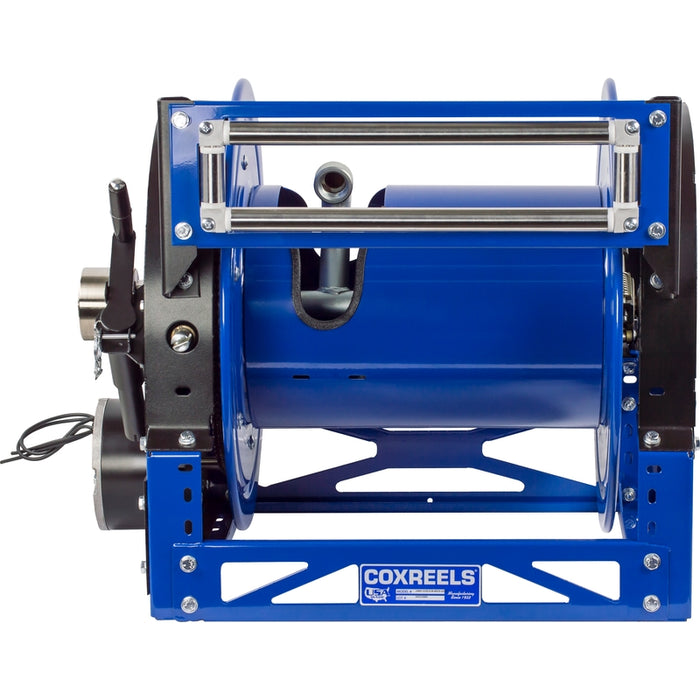

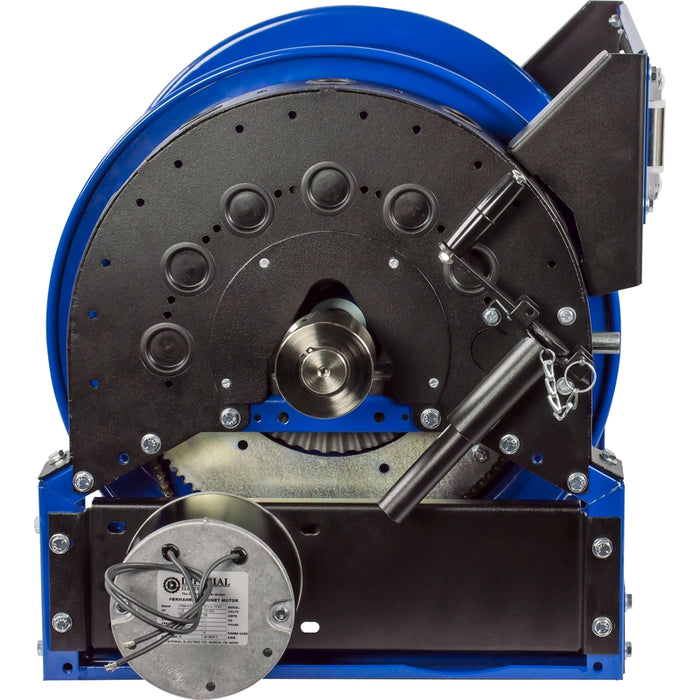

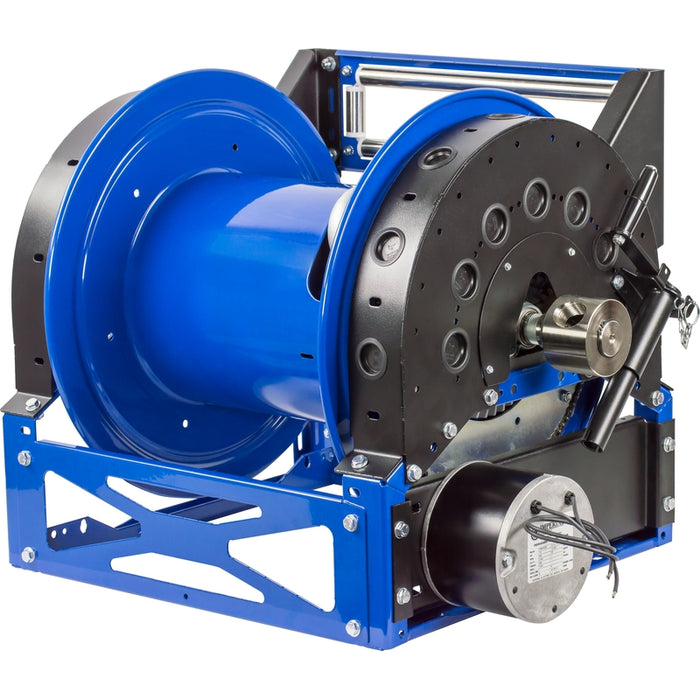

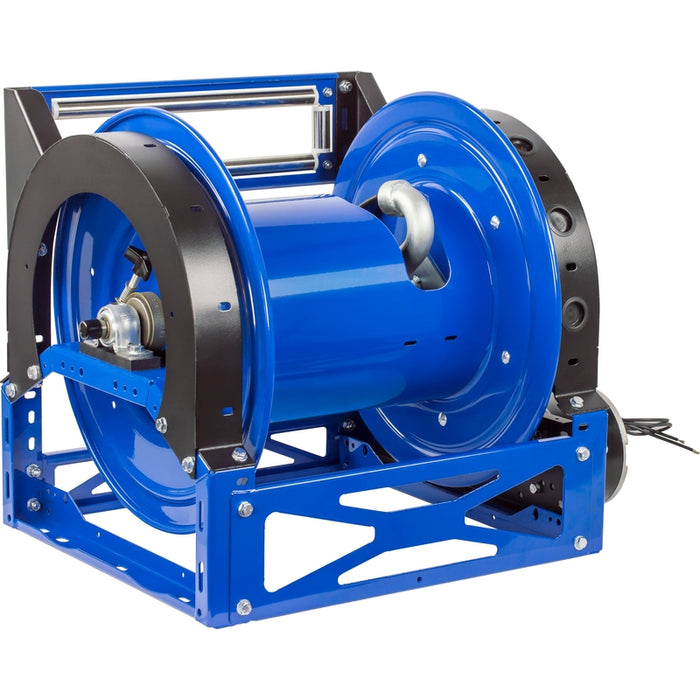

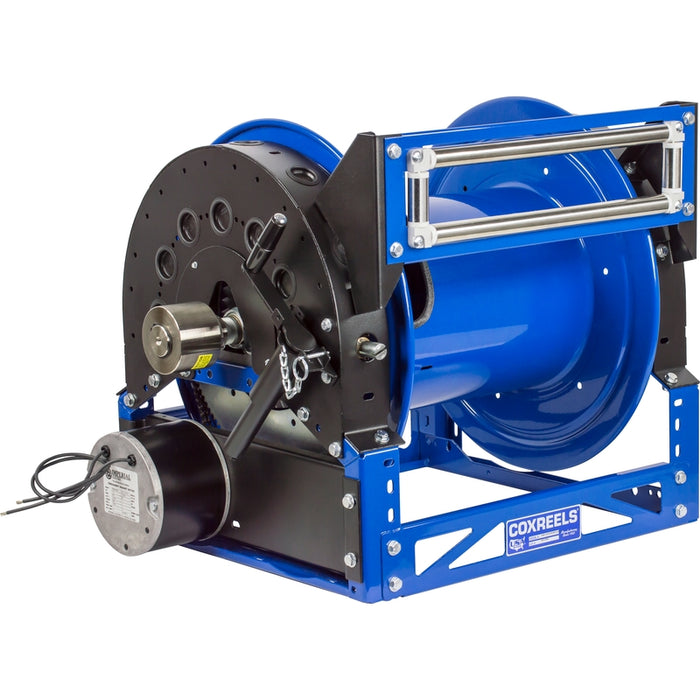

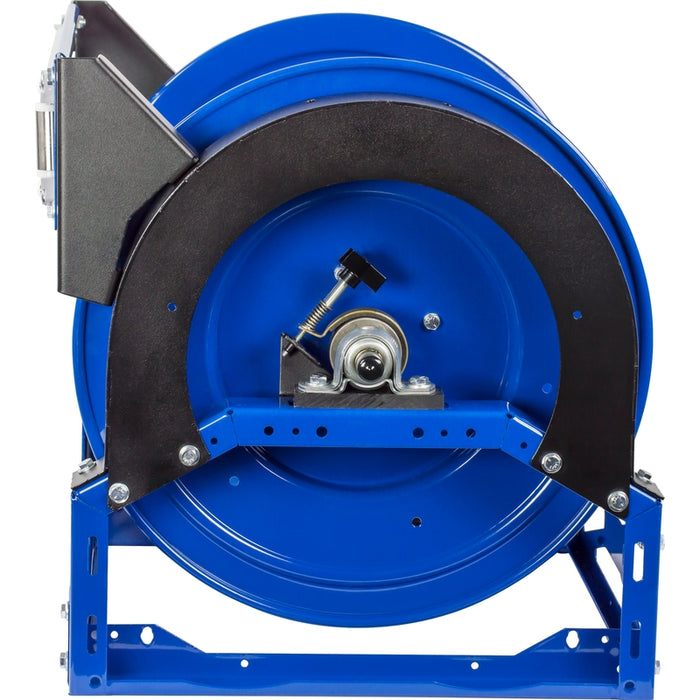

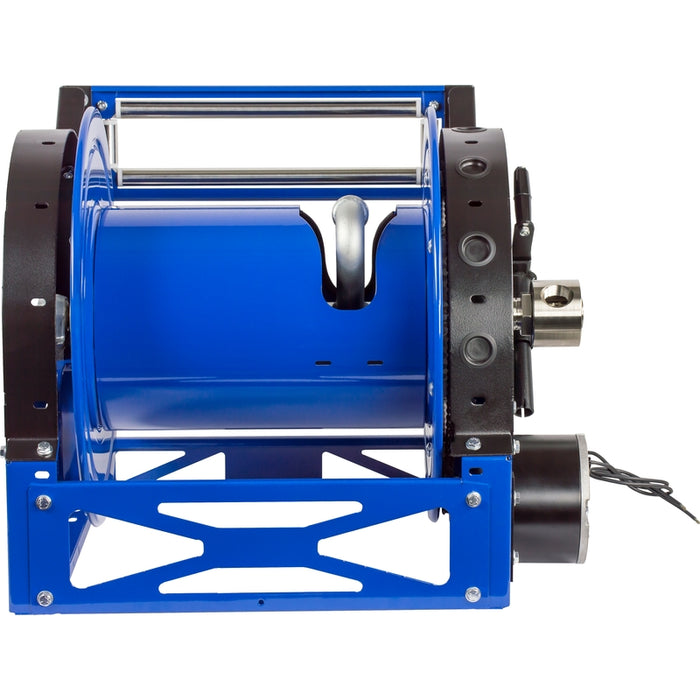

Coxreels 1600 Series 12V DC Motorized Hybrid Frame Hose Reel 1-1/2 in. x 50 ft. Model 1680-1520-E

Coxreels 1600 Series Hybrid Frame motorized hose reels feature the most versatile symmetric design in the industrial market. Outfitted with heavy-duty square tubing framework and robust structural steel channels, this series offers modular configuration options for extreme fluid management. Purposefully tailored for the tough demands of commercial refueling, high-volume fluid transfers, and large-scale manufacturing installations, it maximizes operational power inside space-saving envelopes.

The Coxreels 1680-1520-E Electric Rewind Hybrid Frame Hose Reel is a premium heavy-duty high-volume unit powered by a robust 12V DC electric motor. Designed for fluid lines up to 1-1/2" I.D. operating at pressures up to 1,500 PSI, this model is supplied less hose and accommodates up to 50' of capacity line. It features a high-grade zinc-plated steel fluid path driven by an uncompromised nickel-plated steel inline NPT swivel, coupled with an automated heavy-duty chain and sprocket drive mechanism to deliver effortless mechanical retraction and recovery.

Features & Benefits

Nickel-Plated Steel Swivel: Outfitted with an external inline NPT swivel constructed from nickel-plated steel for simple, quick seal maintenance and reliable leak-free fluid routing.
Heavy Duty 12V DC Electric Drive: Driven by an integrated 12V DC electric rewind motor paired with a robust chain and sprocket assembly, ensuring automatic, effortless hose retrieval under demanding field loads.
Symmetric Hybrid Steel Frame: Built around an all-welded structural steel hybrid frame with heavy-duty added anchor bolts, delivering unmatched chassis rigidity under high vibration.
Low Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and a clean open drum slot blueprint to facilitate flat, uniform, and completely snag-free line wrapping.
Pillow Block Bearings: Equipped with permanently lubricated, self-aligning pillow block bearings to support the axle with maximum precision and guarantee ultra-smooth drum rotation.
CNC Robotically Spun Discs: Heavy-duty CNC robotically spun and ribbed discs with rolled safety edges to deliver superior structural reinforcement and prevent line fatigue.
American Made Quality: Proudly made in the U.S.A., shielded by a long-lasting, chip-resistant CPC™ powder coat finish, backed by a leading 2-year manufacturer's limited warranty, and supported worldwide.
