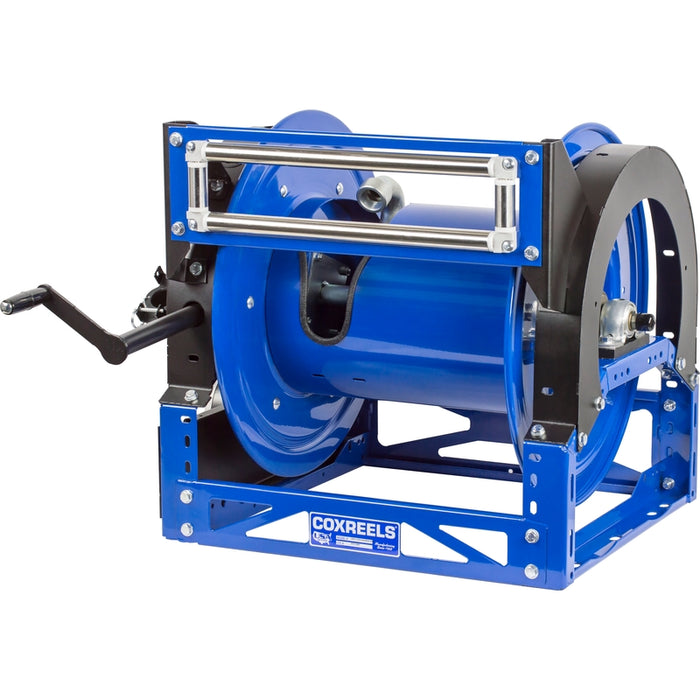

Coxreels 1600 Series Hand Crank Hybrid Frame Hose Reel 1-1/2 in. x 50 ft. - No Hose Model 1680-1124

Name: Coxreels 1600 Series Hand Crank Hybrid Frame Hose Reel 1-1/2 in. x 50 ft. - No Hose Model 1680-1124
Brand: Cox Reels
SKU: 1680-1124
Price: 931.0 USD
Availability: OutOfStock

SKU 1680-1124

Sold out

$931.00 - $931.00

$931.00

$931.00 - $931.00

$931.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1600 Series Hand Crank Hybrid Frame Hose Reel 1-1/2 in. x 50 ft. - No Hose Model 1680-1124

COXREELS® 1600 Series features the most versatile symmetric reel design in the market today. This feature-rich reel series features nearly endless component configurations on a robust platform for any conceivable application. Targeted for the tough demands of customers requiring various dimensional choices, the series offers flexible size envelopes for any given hose capacity. The 1600 series hybrid frame offers unique accessories and upgrades which allow for application tailoring resulting in enhanced performance and usability.

The Coxreels 1680-1124 Hand Crank Hose Reel provides a heavy-duty volume delivery system engineered with an oversized fluid path to handle 50 feet of high-capacity 1-1/2" I.D. hose line. Supplied less hose and rated for 1500 PSI, this high-mass manual model incorporates an inline nickel-plated steel straight full-flow swivel with Nitrile seals. It is structurally stabilized by a robotically welded 12-Gauge steel hybrid frame base to handle intense industrial weights safely.

Features & Benefits

Large Volume 1-1/2" I.D. Architecture: Specifically engineered with an oversized internal fluid layout to route high-volume liquids, bulk air delivery, or high-capacity plant fueling solutions cleanly up to a 50-foot length.
Inline Nickel-Plated Steel Swivel: Equipped with an inline nickel-plated steel straight full-flow NPT swivel inlet and zinc-plated steel piping for simple seal maintenance and low structural fluid friction.
Versatile 12-Gauge Steel Hybrid Frame: Features a sturdy, one-piece all-CNC robotically welded 12-Gauge steel hybrid structure with added bolt assemblies, offering upright vertical side panels for simple custom mounting and supreme chassis stability.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and completely smooth hose wrap across the drum surface.
Permanently Lubricated Bearings: Sturdy, permanently lubricated, and self-aligning pillow block bearings support the main axle to guarantee exceptionally smooth rotation and trouble-free mechanical operation.
Adjustable Tension Brake & Lock Pin: Features an integrated drag brake to customize draw resistance and prevent free-wheeling, paired with a long-handled locking pin to safely secure the reel from rotation during transport or storage.
Direct Hand Crank Rewind: Includes a solid steel direct hand crank with a smooth, round handle for simple, reliable manual line retrieval.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
