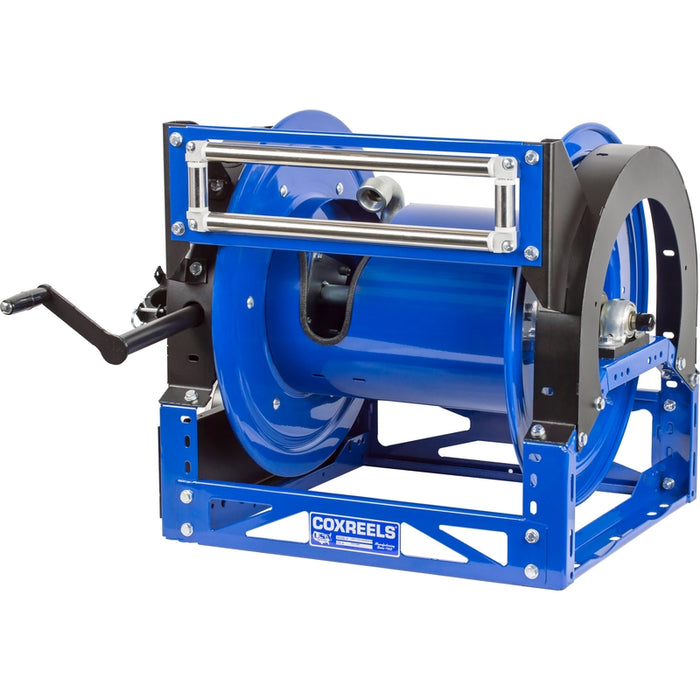

Coxreels 1600 Series Hand Crank Hybrid Frame Hose Reel 1 in. x 250 ft. - No Hose Model 1660-1528

Name: Coxreels 1600 Series Hand Crank Hybrid Frame Hose Reel 1 in. x 250 ft. - No Hose Model 1660-1528
Brand: Cox Reels
SKU: 1660-1528
Price: 1065.0 USD
Availability: OutOfStock

SKU 1660-1528

Sold out

$1,065.00 - $1,065.00

$1,065.00

$1,065.00 - $1,065.00

$1,065.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels 1600 Series Hand Crank Hybrid Frame Hose Reel 1 in. x 250 ft. - No Hose Model 1660-1528

COXREELS® 1600 Series features the most versatile symmetric reel design in the market today. This feature-rich reel series features nearly endless component configurations on a robust platform for any conceivable application. Targeted for the tough demands of customers requiring various dimensional choices, the series offers flexible size envelopes for any given hose capacity. The 1600 series hybrid frame offers unique accessories and upgrades which allow for application tailoring resulting in enhanced performance and usability.

The Coxreels 1660-1528 Hand Crank Hose Reel provides an extended high-capacity manual storage configuration engineered with a widened core drum layout to support up to 250 feet of high-mass 1" I.D. hose. Rated for a maximum working pressure of 3000 PSI and supplied less hose, this non-corrosive hybrid frame model runs on self-aligning bearings and horizontal pillow block fixtures, routing its media through durable zinc-plated piping and an external nickel-plated full-flow swivel joints with inline Nitrile seals.

Features & Benefits

Extended 250' Wide Spool Capacity: Built with an expanded drum structure and wide core core components engineered to cleanly wrap, manage, and protect extended lengths of high-mass 1" industrial line.
Versatile 12-Gauge Steel Hybrid Frame: Features a sturdy, one-piece all-CNC robotically welded 12-Gauge steel hybrid structure with added bolt assemblies, offering upright vertical side panels for simple custom mounting and supreme chassis stability.
Zinc-Plated Path with 90° Swivel: Outfitted with an external fluid path constructed from durable zinc-plated steel plumbing and a nickel-plated steel 90° full-flow NPT swivel inlet with Nitrile seals for straightforward inline maintenance.
Low-Profile Outlet Riser: Features Coxreels' exclusive low-profile outlet riser and an open drum slot design, providing a non-crimping, flat, and completely smooth hose wrap across the drum surface.
Adjustable Tension Brake & Lock Pin: Features an integrated drag brake to customize draw resistance and prevent free-wheeling, paired with a long-handled locking pin to safely secure the reel from rotation during transport or storage.
Direct Hand Crank Rewind: Includes a solid steel direct hand crank with a smooth, round handle for simple, reliable manual line retrieval.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
