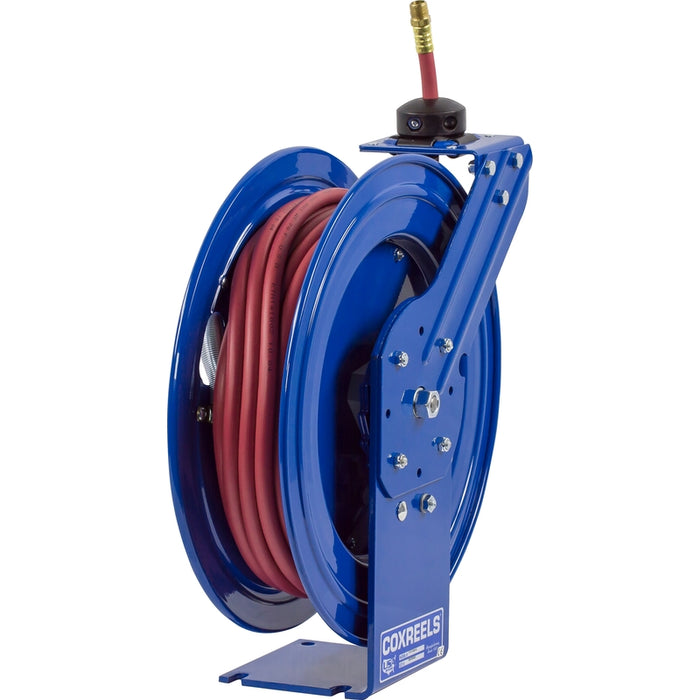

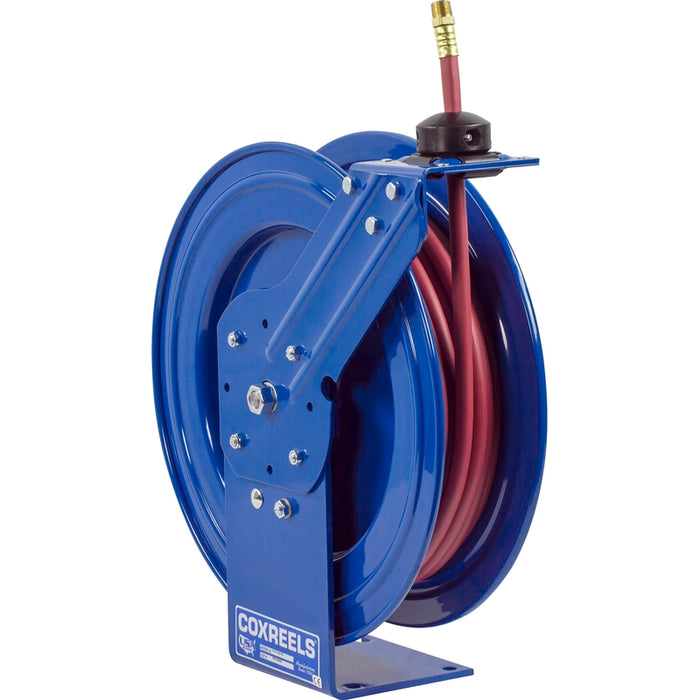

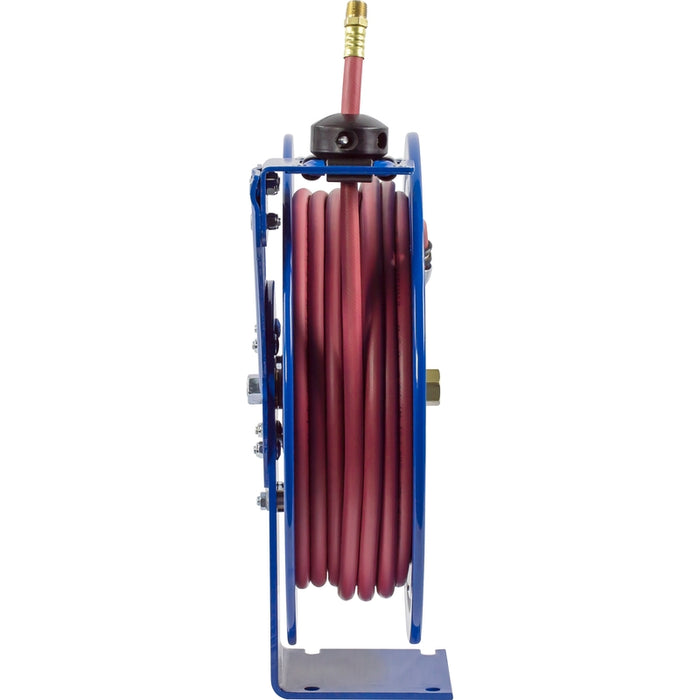

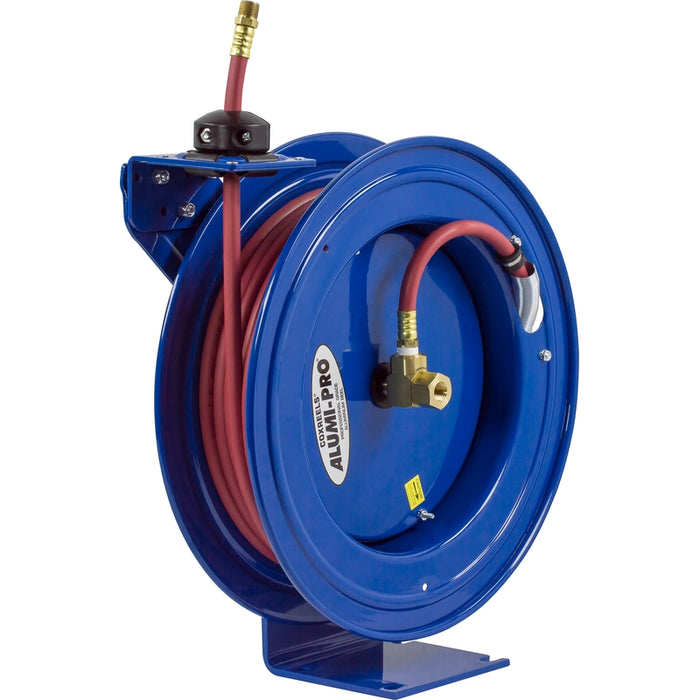

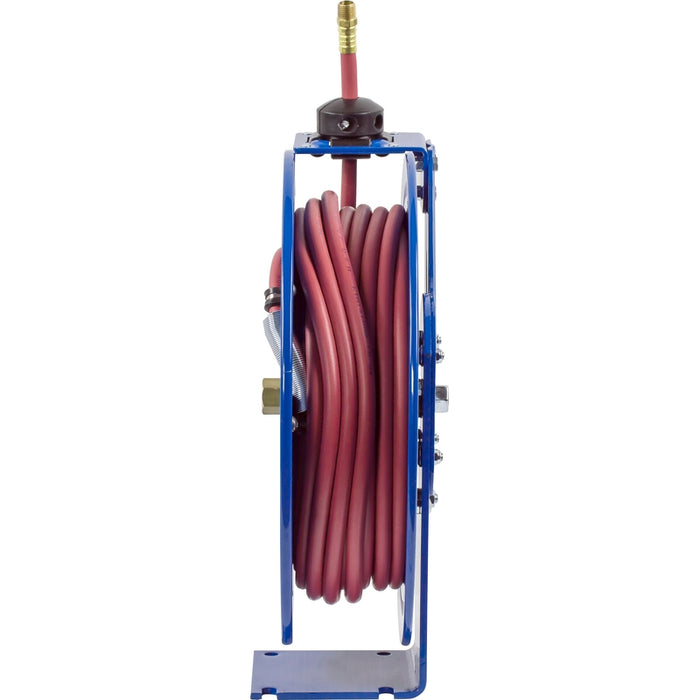

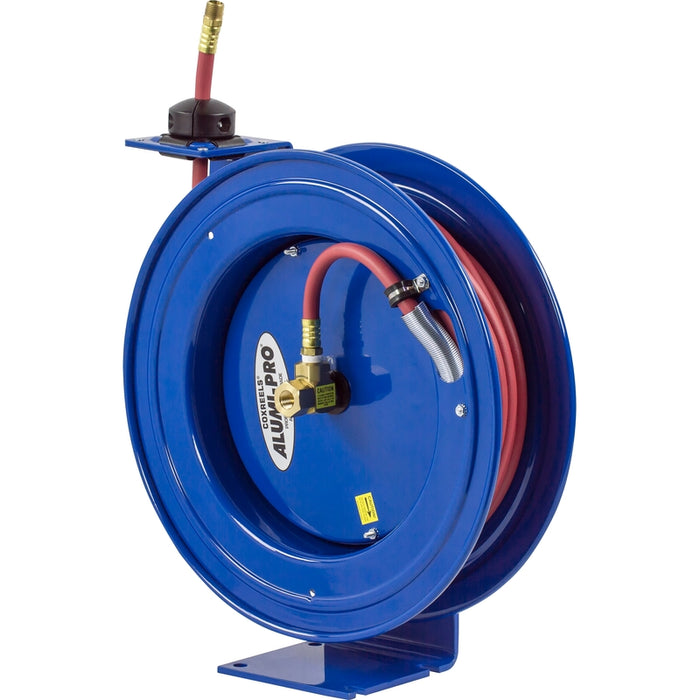

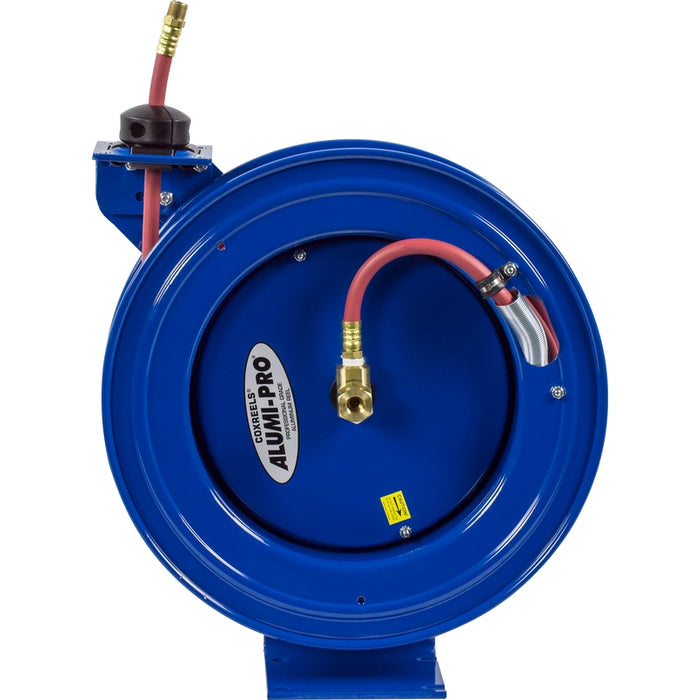

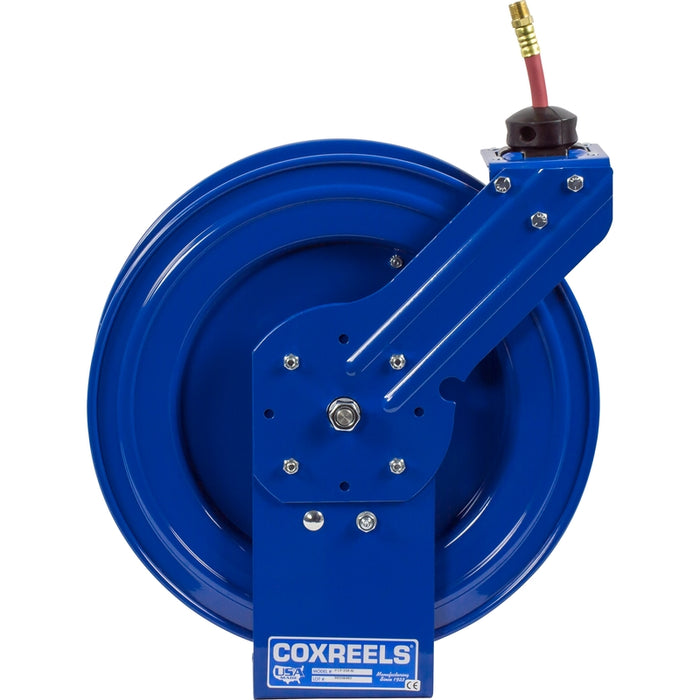

Coxreels Alumi-Pro® Series Spring Driven Aluminum Hose Reel 3/8 in. x 25 ft. 300 PSI Model P-LP-325-AL

Name: Coxreels Alumi-Pro® Series Spring Driven Aluminum Hose Reel 3/8 in. x 25 ft. 300 PSI Model P-LP-325-AL
Brand: Cox Reels
SKU: P-LP-325-AL
Price: 585.0 USD
Availability: OutOfStock

SKU P-LP-325-AL

Sold out

$585.00 - $585.00

$585.00

$585.00 - $585.00

$585.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels Alumi-Pro® Series Spring Driven Aluminum Hose Reel 3/8 in. x 25 ft. 300 PSI Model P-LP-325-AL

COXREELS® Alumi-Pro® Series “Aluminum Professional-Grade” spring driven hose reels have the strength of steel without the weight! Uniquely constructed out of high-quality aluminum, they are compact, lightweight, and non-corrosive, making them the perfect choice when polypropylene or plastic hose reels are not preferred due to their limited strength and durability.

The Coxreels P-LP-325-AL Spring Rewind Hose Reel comes standard with a factory-installed 25-foot premium 3/8" I.D. red PVC hose rated for 300 air/water operational pressure. Built upon a rugged, single-pedestal un-welded 1/4" thick aluminum base, this professional-grade reel features an external fluid path driven by a machined from solid brass 90° full-flow NPT swivel inlet and reliable Nitrile seals. Controlled retraction is powered by an enclosed, factory-matched cartridge spring motor.

Features & Benefits

1/4" Structural Aluminum Frame & Base: Engineered with a sturdy, single-pedestal design featuring a solid, one-piece aluminum base and support post. The weld-free chassis delivers maximum stability and professional-grade strength without the excessive weight of steel.
Premium Cartridge-Style Spring Motor: Powered by a lubricated and fully enclosed cartridge-style motor that is easily removable for safe maintenance. The precision coil spring is factory tuned and matched to ensure a maximum functional lifespan.
Machined Solid Brass Full-Flow Swivel: Equipped with an external 90° full-flow NPT swivel connection machined from solid brass, facilitating low line restriction, swift hose installation, and effortless seal servicing without unmounting the reel.
Multi-Position Adjustable Guide Arm: Features a versatile aluminum guide arm that field-adjusts cleanly to custom wall, floor, ceiling, or vehicle-chassis mounting positions.
CNC Robotically Spun Discs: Heavy-duty, robotically spun and ribbed discs feature rolled edges to enhance structural strength, improve overall durability, and shield the hose from rubbing or pinches.
Professional Finish & Axle Group: Outfitted with a 1" solid steel axle, sturdy permanently lubricated precision bearings, an adjustable solid rubber hose stop, and a chip-resistant, rust-inhibiting CPC™ powder coat.
