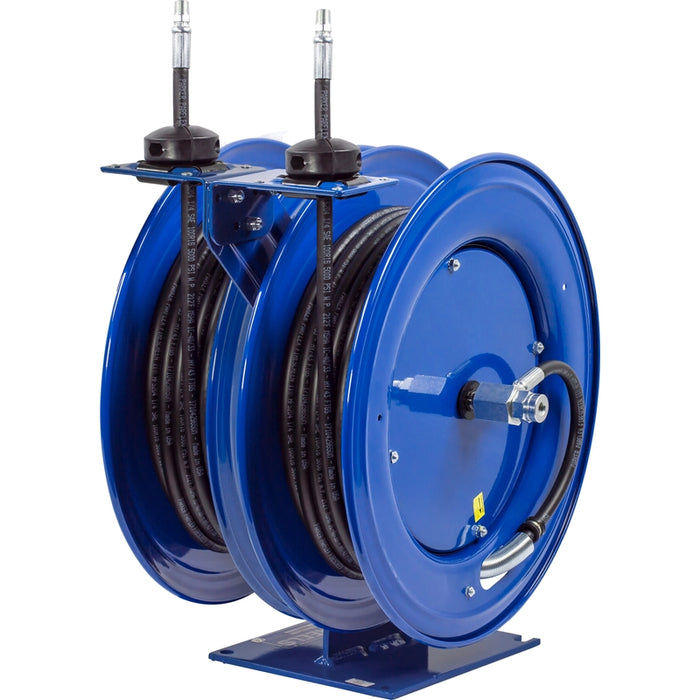

Coxreels C Series Dual Purpose Spring Driven Hose Reel 1/4 in. x 35 ft. - No Hose 5000 PSI Model C-HP-135-135

Name: Coxreels C Series Dual Purpose Spring Driven Hose Reel 1/4 in. x 35 ft. - No Hose 5000 PSI Model C-HP-135-135
Brand: Cox Reels
SKU: C-HP-135-135
Price: 1083.0 USD
Availability: OutOfStock

SKU C-HP-135-135

Sold out

$1,083.00 - $1,083.00

$1,083.00

$1,083.00 - $1,083.00

$1,083.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels C Series Dual Purpose Spring Driven Hose Reel 1/4 in. x 35 ft. - No Hose 5000 PSI Model C-HP-135-135

COXREELS® C Series “Combination” spring driven hose reels combine two independent spools into one compact assembly. They are perfect for commercial or field workspaces where dual fluid sources are required but mounting footprint area is a critical limiting factor. The specialized single pedestal chassis maximizes space efficiency and eliminates half of the installation time required to set up two individual reels at a single station.

The Coxreels C-HP-135-135 Dual Purpose Spring Rewind Hose Reel is a dual-hydraulic or grease utility setup featuring two independent spools, each factory-loaded with 35 feet of high-durability 1/4" I.D. black rubber hose rated for an intense maximum pressure of 5000 PSI. Delivering maximum structural stability, this model routes its media through two independent external fluid paths utilizing machined zinc-plated steel 90° full-flow NPT swivels and resilient Nitrile seals, backed by individual enclosed cartridge-style spring motors.

Features & Benefits

Compact Dual Hose Winding Assembly: Combines two independent high-pressure spools on a single expanded pedestal mount, allowing both fluid systems to payout and retract completely independently.
Oversized 5000 PSI Fluid Sizing: Engineered with reinforced internal paths and high-strength components calibrated to manage high-pressure grease injection or severe dual hydraulic tools safely over an extended 35-foot length.
Dual Zinc-Plated Steel Swivels: Equipped with two independent external fluid paths constructed from machined zinc-plated steel 90° full-flow NPT swivels, enabling rapid hose installations and simple inline seal maintenance.
Sturdy 1/4" Single Expanded Steel Base: Anchored by a heavy-duty single pedestal design with a solid, one-piece 1/4" steel base and support post (weld-free) for maximum structural stability on vehicles or service bays.
Enclosed Cartridge Spring Motors: Driven by dual enclosed, lubricated, and factory-matched cartridge spring motors equipped with non-corrosive stainless steel springs, pawls, and a multi-position lock ratchet mechanism to latch hose lines cleanly at any length.
Multi-Position Adjustable Guide Arms: Features versatile dual guide arms that easily field-adjust to maximize deployment angles from wall, floor, ceiling, or truck-chassis mounting positions.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
