Coxreels C Series Dual Purpose Spring Driven Hose Reel 1/4 in. x 35 ft. - No Hose 5000 PSI Model C-HPL-135-135

Name: Coxreels C Series Dual Purpose Spring Driven Hose Reel 1/4 in. x 35 ft. - No Hose 5000 PSI Model C-HPL-135-135
Brand: Cox Reels
SKU: C-HPL-135-135
Price: 774.0 USD
Availability: OutOfStock

SKU C-HPL-135-135

Sold out

$774.00 - $774.00

$774.00

$774.00 - $774.00

$774.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

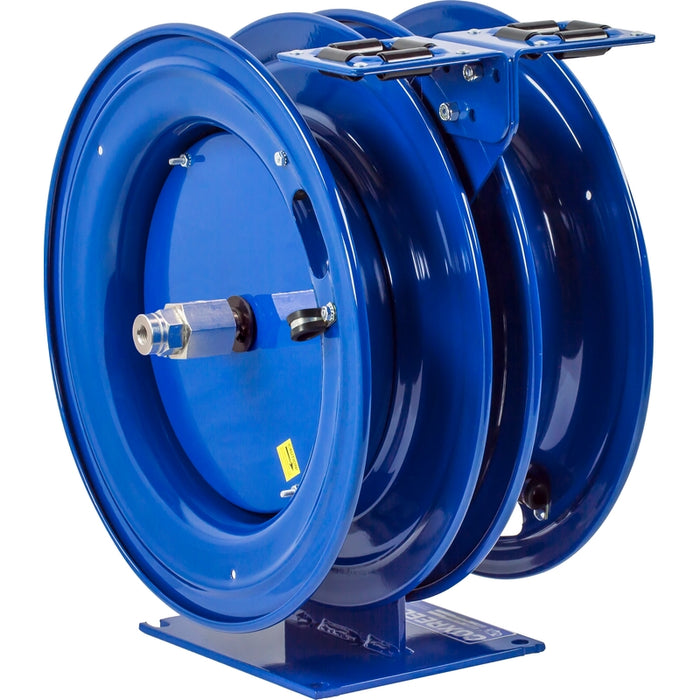

Coxreels C Series Dual Purpose Spring Driven Hose Reel 1/4 in. x 35 ft. - No Hose 5000 PSI Model C-HPL-135-135

COXREELS® C Series “Combination” spring driven hose reels combine two independent spools into one compact assembly. They are perfect for commercial or field workspaces where dual fluid sources are required but mounting footprint area is a critical limiting factor. The specialized single pedestal chassis maximizes space efficiency and eliminates half of the installation time required to set up two individual reels at a single station.

The Coxreels C-HPL-135-135 Dual Purpose Spring Rewind Reel provides a customizable, bare dual-spool high-pressure framework built less hose. Calibrated to support an extended 35 feet of 1/4" I.D. grease or hydraulic hose on each independent spool, this 5000 PSI bare model incorporates twin external paths built from machined zinc-plated steel 90° full-flow swivel joints lined with robust Nitrile seals, powered by individual enclosed cartridge-style spring motors.

Features & Benefits

Customizable \\"Less Hose\"\" Dual Core: Supplied completely less hose, giving facilities the direct flexibility to load task-specific high-pressure fluid drops or proprietary hydraulic hoses onto two independent spools.
Oversized 5000 PSI Fluid Sizing: Engineered with reinforced internal paths and high-strength components calibrated to manage high-pressure grease injection or severe dual hydraulic tools safely over an extended 35-foot capacity.
Dual Zinc-Plated Steel Swivels: Equipped with two independent external fluid paths constructed from machined zinc-plated steel 90° full-flow NPT swivels, enabling rapid hose installations and simple inline seal maintenance.
Sturdy 1/4"" Single Expanded Steel Base: Anchored by a heavy-duty single pedestal design with a solid, one-piece 1/4"" steel base and support post (weld-free) for maximum structural stability on vehicles or service bays.
Enclosed Cartridge Spring Motors: Driven by dual enclosed, lubricated, and factory-matched cartridge spring motors equipped with non-corrosive stainless steel springs, pawls, and a multi-position lock ratchet mechanism to latch hose lines cleanly at any length.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
