Coxreels C Series Dual Purpose Spring Driven Hose Reel 3/8 in. x 30 ft. - Hose Included 4000 PSI Model C-HP-330-330

Name: Coxreels C Series Dual Purpose Spring Driven Hose Reel 3/8 in. x 30 ft. - Hose Included 4000 PSI Model C-HP-330-330
Brand: Cox Reels
SKU: C-HP-330-330
Price: 1158.0 USD
Availability: OutOfStock

SKU C-HP-330-330

Sold out

$1,158.00 - $1,158.00

$1,158.00

$1,158.00 - $1,158.00

$1,158.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

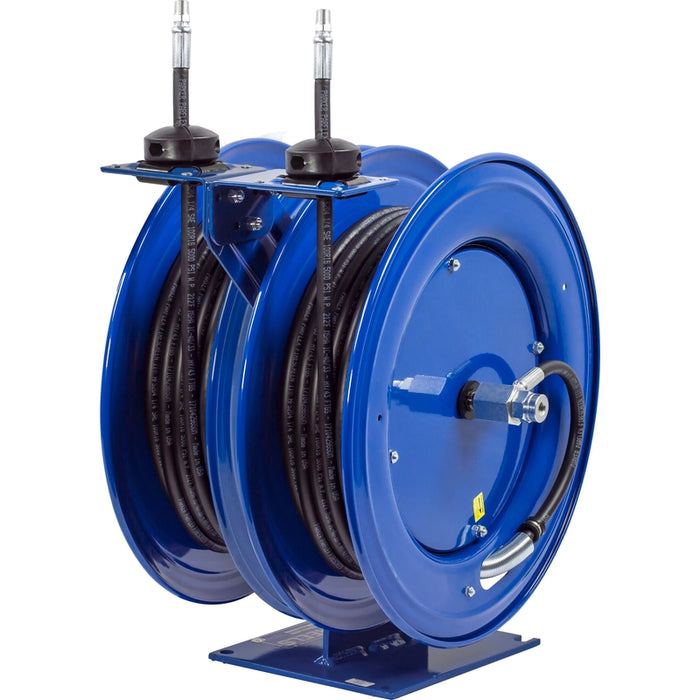

Coxreels C Series Dual Purpose Spring Driven Hose Reel 3/8 in. x 30 ft. - Hose Included 4000 PSI Model C-HP-330-330

COXREELS® C Series “Combination” spring driven hose reels combine two independent spools into one compact assembly. They are perfect for commercial or field workspaces where dual fluid sources are required but mounting footprint area is a critical limiting factor. The specialized single pedestal chassis maximizes space efficiency and eliminates half of the installation time required to set up two individual reels at a single station.

The Coxreels C-HP-330-330 Dual Purpose Spring Rewind Hose Reel is designed with medium-diameter fluid paths to support an extended 30 feet of 3/8" I.D. black rubber hose on each independent spool. Rated for a high operational capacity of 4000 PSI, this high-pressure model paths lines cleanly through machined zinc-plated steel 90° full-flow NPT swivel connections and Nitrile seals, allowing simultaneous or independent grease or hydraulic power delivery across active repair bays.

Features & Benefits

Compact Dual Hose Winding Assembly: Combines two independent high-pressure spools on a single expanded pedestal mount, allowing both fluid systems to payout and retract completely independently.
Medium-Diameter 4000 PSI Fluid Sizing: Calibrated with full 3/8" internal plumbing and high-strength assemblies to handle moderate-flow hydraulics or extreme volume grease pumping without line bowing across an extended 30' length.
Dual Zinc-Plated Steel Swivels: Equipped with two independent external fluid paths constructed from machined zinc-plated steel 90° full-flow NPT swivels, enabling rapid hose installations and simple inline seal maintenance.
Sturdy 1/4" Single Expanded Steel Base: Anchored by a heavy-duty single pedestal design with a solid, one-piece 1/4" steel base and support post (weld-free) for maximum structural stability on vehicles or service bays.
Enclosed Cartridge Spring Motors: Driven by dual enclosed, lubricated, and factory-matched cartridge spring motors equipped with non-corrosive stainless steel springs, pawls, and a multi-position lock ratchet mechanism to latch hose lines cleanly at any length.
Multi-Position Adjustable Guide Arms: Features versatile dual guide arms that easily field-adjust to maximize deployment angles from wall, floor, ceiling, or truck-chassis mounting positions.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
