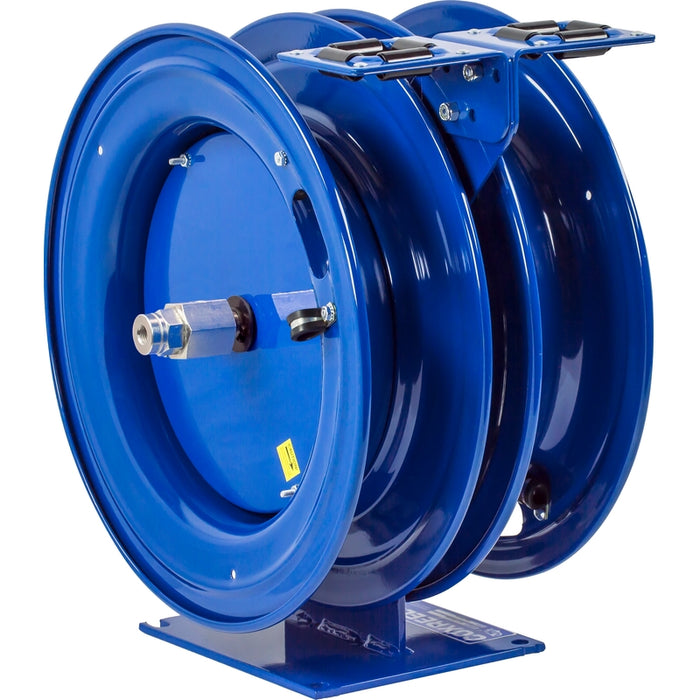

Coxreels C Series Dual Purpose Spring Driven Hose Reel 3/8 in. x 30 ft. - No Hose 5000 PSI Model C-HPL-330-330

Name: Coxreels C Series Dual Purpose Spring Driven Hose Reel 3/8 in. x 30 ft. - No Hose 5000 PSI Model C-HPL-330-330
Brand: Cox Reels
SKU: C-HPL-330-330
Price: 805.0 USD
Availability: OutOfStock

SKU C-HPL-330-330

Sold out

$805.00 - $805.00

$805.00

$805.00 - $805.00

$805.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels C Series Dual Purpose Spring Driven Hose Reel 3/8 in. x 30 ft. - No Hose 5000 PSI Model C-HPL-330-330

COXREELS® C Series “Combination” spring driven hose reels combine two independent spools into one compact assembly. They are perfect for commercial or field workspaces where dual fluid sources are required but mounting footprint area is a critical limiting factor. The specialized single pedestal chassis maximizes space efficiency and eliminates half of the installation time required to set up two individual reels at a single station.

The Coxreels C-HPL-330-330 Dual Purpose Spring Rewind Reel delivers a customizable, bare medium-diameter dual spool platform built less hose. Calibrated to wrap up to 30 feet of 3/8" I.D. lines on each independent spool and rated for a high working pressure of 4000 PSI, this bare core chassis model paths lines smoothly through dual machined zinc-plated steel 90° swivels and Nitrile seals, powered via separate enclosed cartridge spring motors.

Features & Benefits

Customizable \\"Less Hose\"\" Dual Core: Supplied completely less hose, giving facilities the direct flexibility to load task-specific high-pressure fluid drops or proprietary hydraulic hoses onto two independent spools.
Medium-Diameter 4000 PSI Fluid Sizing: Calibrated with full 3/8"" internal plumbing and high-strength assemblies to handle moderate-flow hydraulics or extreme volume grease pumping without line bowing across an extended 30' capacity.
Dual Zinc-Plated Steel Swivels: Equipped with two independent external fluid paths constructed from machined zinc-plated steel 90° full-flow NPT swivels, enabling rapid hose installations and simple inline seal maintenance.
Sturdy 1/4"" Single Expanded Steel Base: Anchored by a heavy-duty single pedestal design with a solid, one-piece 1/4"" steel base and support post (weld-free) for maximum structural stability on vehicles or service bays.
Enclosed Cartridge Spring Motors: Driven by dual enclosed, lubricated, and factory-matched cartridge spring motors equipped with non-corrosive stainless steel springs, pawls, and a multi-position lock ratchet mechanism to latch hose lines cleanly at any length.
... [Row Continues into Excel Matrix] ...
