Coxreels Dual C Air-Electric Series Purpose Spring Rewind Reels 3/8 in. x 50 ft. - 16 AWG x 50 ft. capacity - 25 Amps 300 PSI No Hose Model C-L350L-5016L-X

Name: Coxreels Dual C Air-Electric Series Purpose Spring Rewind Reels 3/8 in. x 50 ft. - 16 AWG x 50 ft. capacity - 25 Amps 300 PSI No Hose Model C-L350L-5016L-X
Brand: Cox Reels
SKU: C-L350L-5016L-X
Price: 814.0 USD
Availability: OutOfStock

SKU C-L350L-5016L-X

Sold out

$814.00 - $814.00

$814.00

$814.00 - $814.00

$814.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels Dual C Air-Electric Series Purpose Spring Rewind Reels 3/8 in. x 50 ft. - 16 AWG x 50 ft. capacity - 25 Amps 300 PSI No Hose Model C-L350L-5016L-X

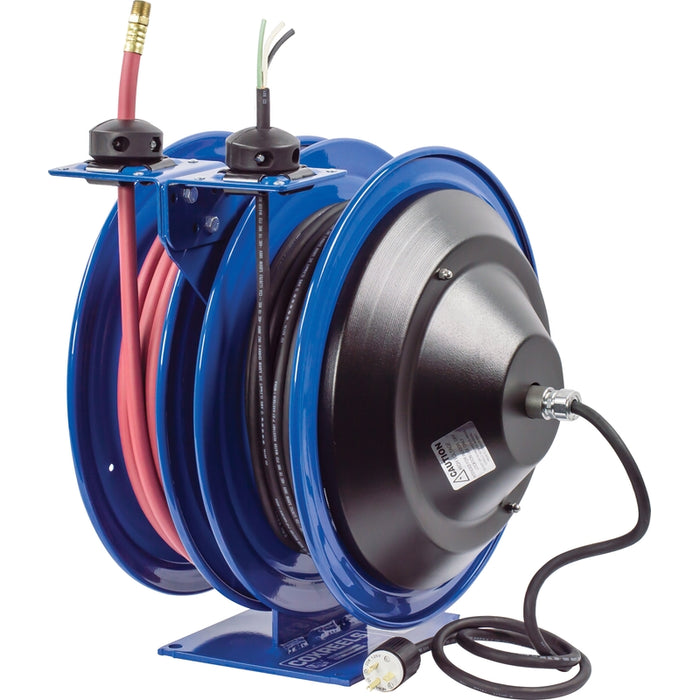

COXREELS® C Series “Combination” spring driven hose reels combine two independent spools into one compact assembly. They are perfect for commercial workspaces where dual media sources are required but mounting space is at a premium. The unified mounting base dramatically cuts down on installation time while providing maximum structural stability.

The Coxreels C-L350L-5016L-X Dual Purpose Reel delivers a customizable bare utility framework constructed less hose, less electrical cord, and less end accessories. Built with independent spools to wrap up to 50 feet of 3/8" I.D. air/water hose (300 PSI max) on one side, and up to 50 feet of lighter-gauge 16 AWG power cord on the electrical side, this station features solid brass 90° full-flow swivel entries and an inline steel component cover for rapid slip ring maintenance.

Features & Benefits

Bare Core Custom Assembly: Supplied completely less hose, less electrical cord, and less end accessories, offering a blank dual-spool chassis for fields requiring proprietary industrial lines.
Mid-Range 16 AWG & 3/8" Core Sizing: Engineered with drum diameters and winding tolerances calibrated to manage up to 50 feet of light 16-gauge electrical line on the power side and 3/8" I.D. line on the fluid side.
Protected Dual Slip Ring Array: Features a heavy-gauge, easily accessible CPC™ powder-coated steel component cover that fields fast, simple routine maintenance for the internal electrical slip ring.
Brass Full-Flow Swivel & Nitrile Seals: Outfitted with a machined from solid brass 90° full-flow NPT swivel inlet with Nitrile seals, delivering optimized flow efficiency and easy external seal maintenance.
Unified 1/4" Steel Pedestal Base: Anchored by a single, expanded, non-welded 1/4" structural steel mounting base and support post that halves standard dual-station installation times.
orig Enclosed Cartridge Spring Motors: Powered by dual enclosed, lubricated, and factory-matched cartridge spring motors featuring stainless steel springs and a multi-position lock ratchet to secure media at the desired extension.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
