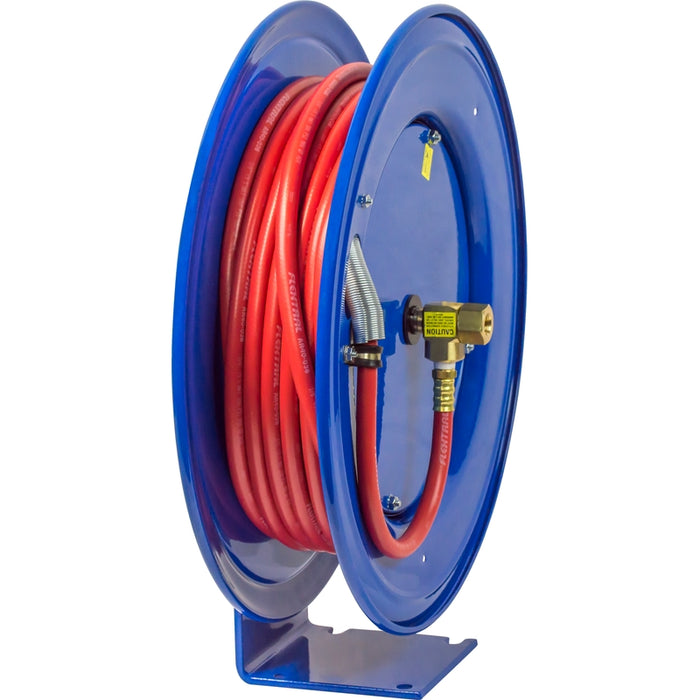

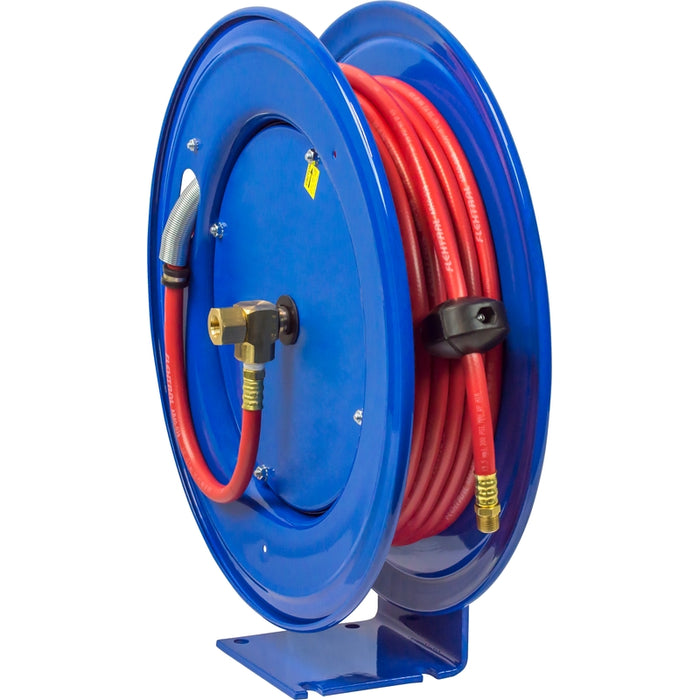

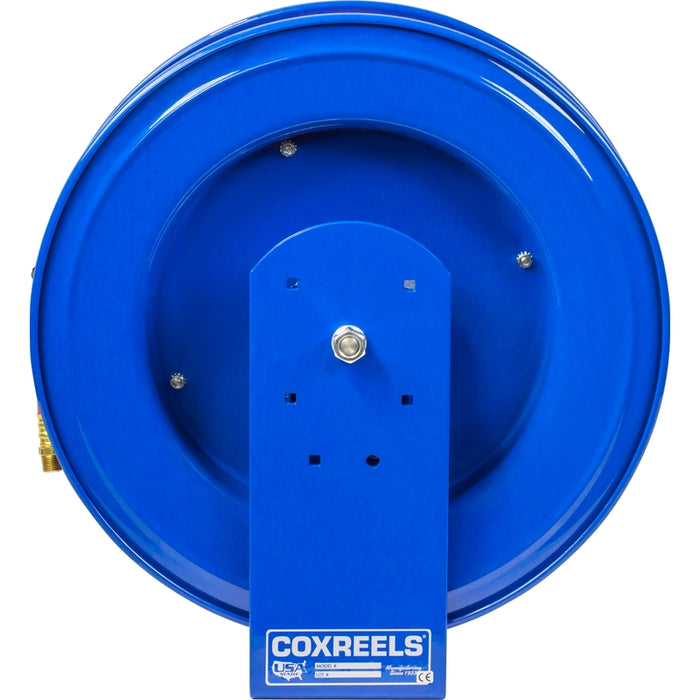

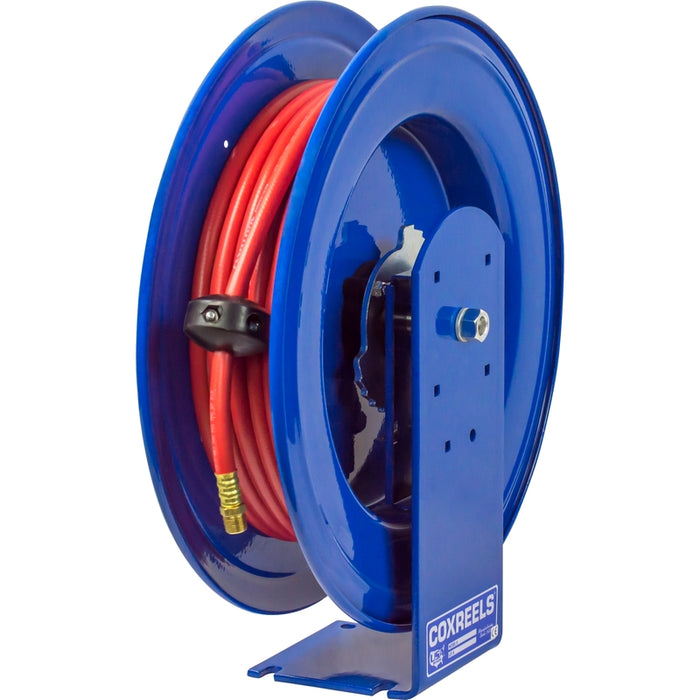

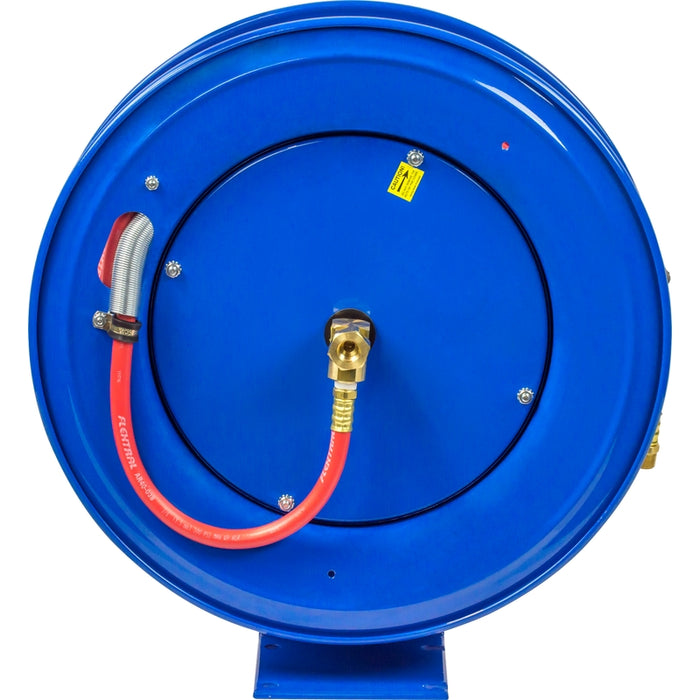

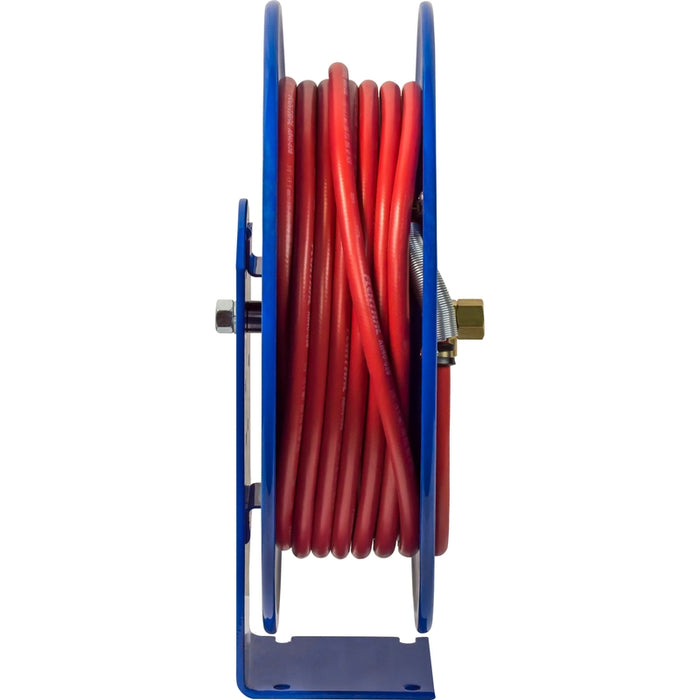

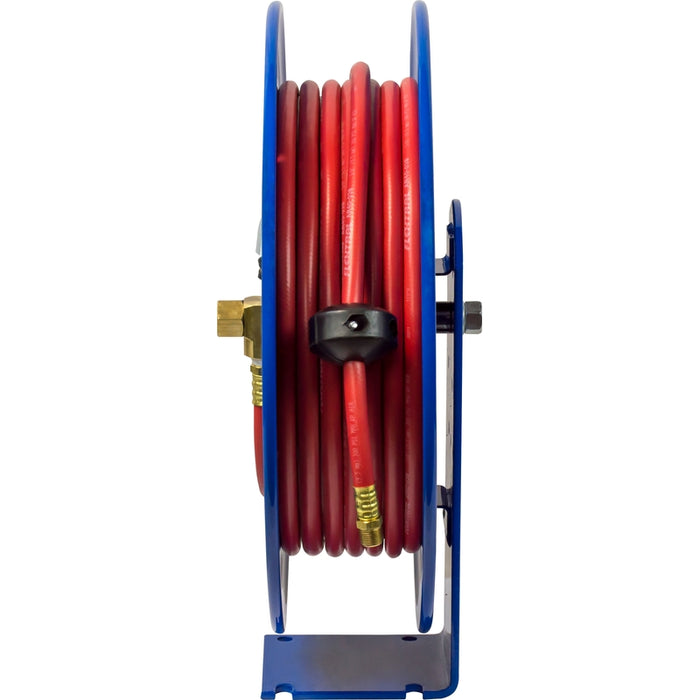

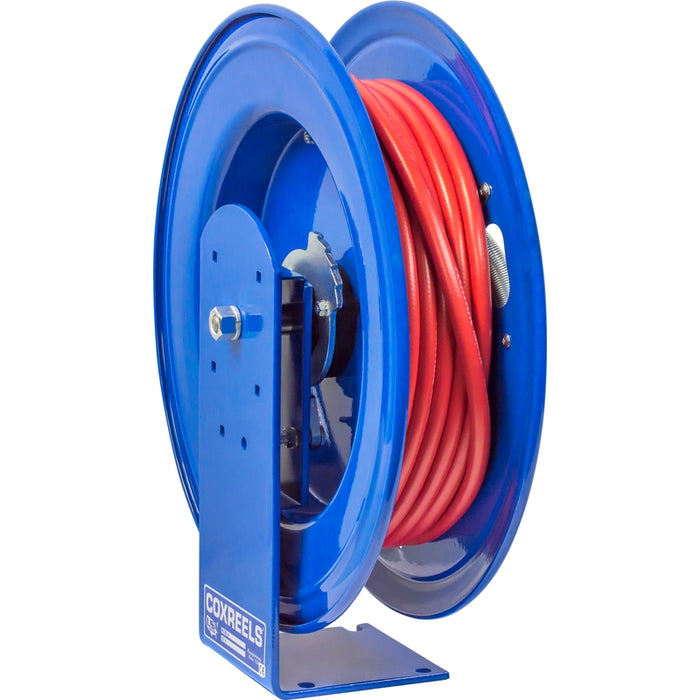

Coxreels E Series Spring Driven Enclosed Cabinet Hose Reel 3/8 in. x 50 ft. - Hose Included 4000 PSI Model E-HP-350

Name: Coxreels E Series Spring Driven Enclosed Cabinet Hose Reel 3/8 in. x 50 ft. - Hose Included 4000 PSI Model E-HP-350
Brand: Cox Reels
SKU: E-HP-350
Price: 817.0 USD
Availability: OutOfStock

SKU E-HP-350

Sold out

$817.00 - $817.00

$817.00

$817.00 - $817.00

$817.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels E Series Spring Driven Enclosed Cabinet Hose Reel 3/8 in. x 50 ft. - Hose Included 4000 PSI Model E-HP-350

Coxreels E Series “Expandable” multiple bank systems represent the absolute pinnacle in professional appearance, workspace organization, and high-pressure performance. These modular cabinets feature an interlocking design that allows them to expand to any number of spring-driven reel assemblies required for your shop. Engineered for effortless installation, simple maintenance, and easy servicing, the E Series is truly the professional’s choice for clean, centralized multimedia delivery in one custom package.

The Coxreels E-HP-350 Spring Rewind Enclosed Cabinet Hose Reel is engineered to deliver high-volume fluid delivery in high-pressure grease applications, performing reliably at an intense working pressure of up to 4,000 PSI. Supplied with an extended-reach 3/8" I.D. x 50' black rubber hose, this model combines a sleek, protective enclosed cabinet design with an industrial-grade spring motor to deliver seamless, heavy-duty hose management in demanding commercial and industrial settings.

Features & Benefits

Zinc-Plated 90° Swivel: Built with an external fluid path featuring a machined from zinc-plated steel 90° full-flow NPT swivel inlet, allowing for simple seal maintenance and fast, easy hose installation without ever removing the reel from its cabinet mount.
Nitrile Swivel Seals: Standard equipped with high-quality Nitrile seals to deliver leak-free performance and exceptional chemical compatibility across severe, high-pressure grease applications.
Expandable Bank Systems: Designed specifically for expandable metal cabinets and multiple reel bank configurations, creating a highly organized, modular, and professional appearance.
Weldless 1/4" Steel Base: Constructed with a sturdy single-pedestal design featuring a solid, one-piece, heavy-gauge 1/4” steel base and support post with no welds for maximum stability and lifetime structural integrity.
Super Hub™ Dual Axle Support: Equipped with Coxreels' exclusive dual axle support system, a 1” solid steel axle, and pre-lubricated precision bearings to ensure ultra-smooth rotation and reduced stress under heavy loads.
CNC Robotically Spun Discs: Heavy-duty, robotically spun and ribbed discs feature safety rolled edges to maximize structural strength, prevent hose wear, and optimize operator safety.
Enclosed Cartridge Motor: Features a factory-tuned and matched cartridge-style spring motor equipped with a non-corrosive stainless steel spring, pawl, and zinc-plated ratchet. The entire assembly is fully enclosed for safety yet easily removable for convenient maintenance.
Multi-Position Lock Ratchet: An integrated heavy-duty ratchet mechanism allows you to easily secure the hose at your desired length, combined with an adjustable solid rubber hose stop for customized deployment.
Proprietary CPC™ Powder Coat: Shielded with a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for premium defense against harsh environmental wear and tear.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
