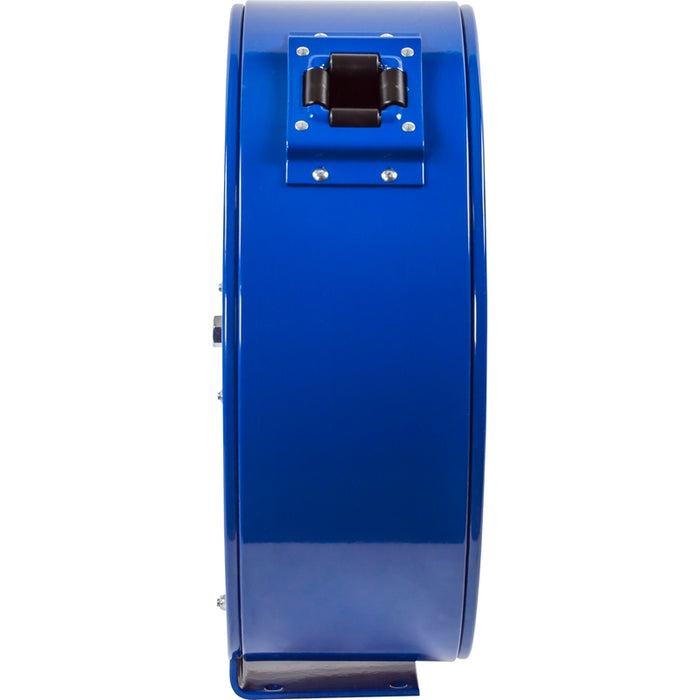

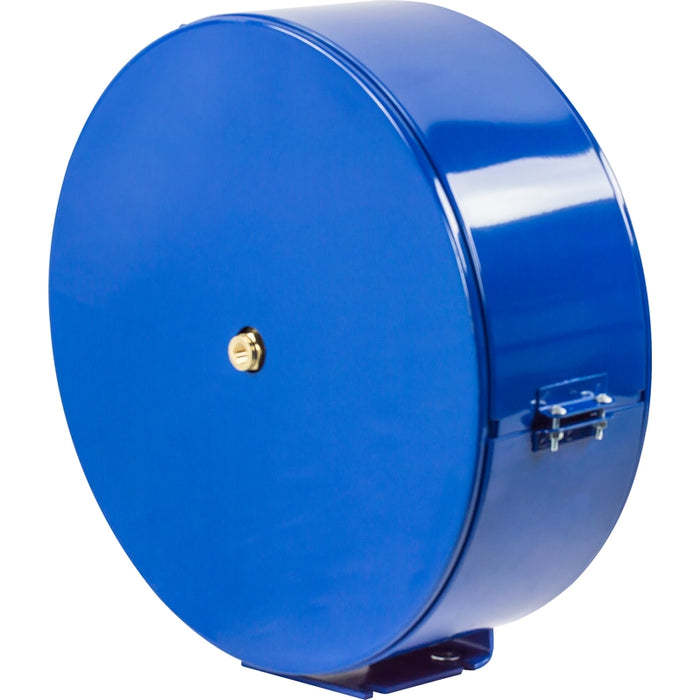

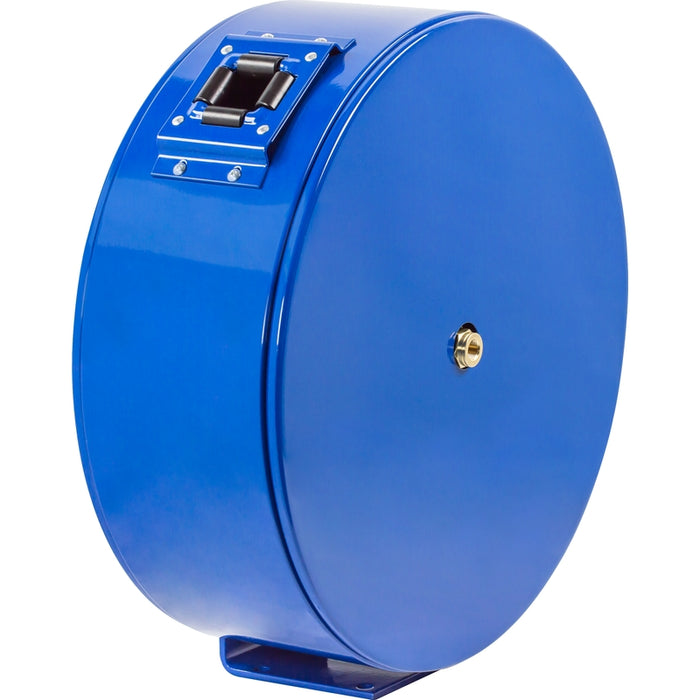

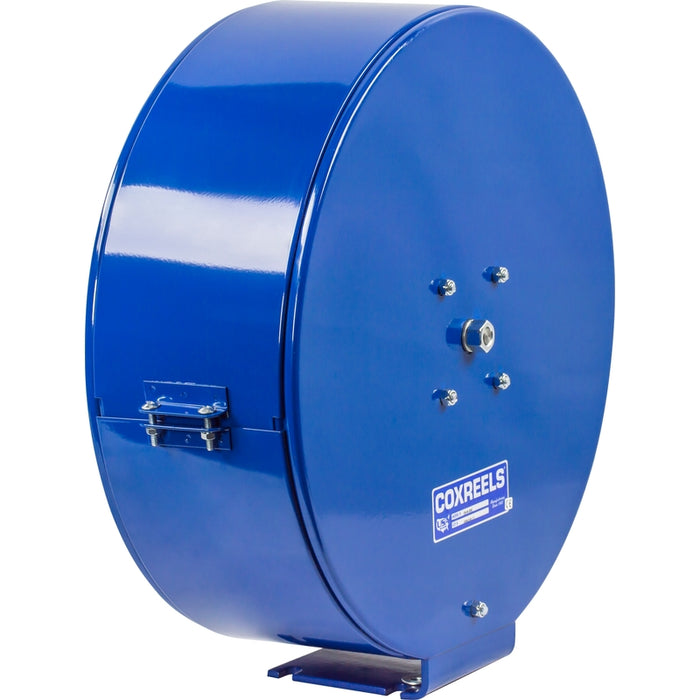

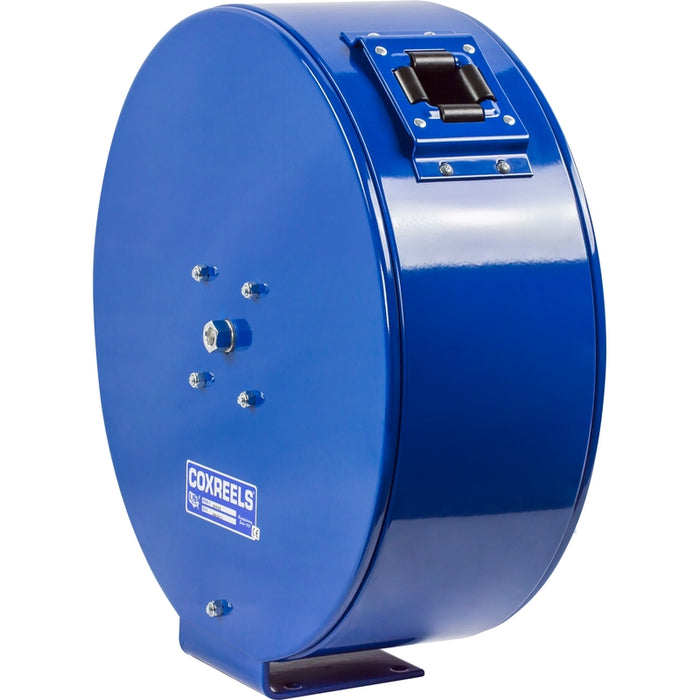

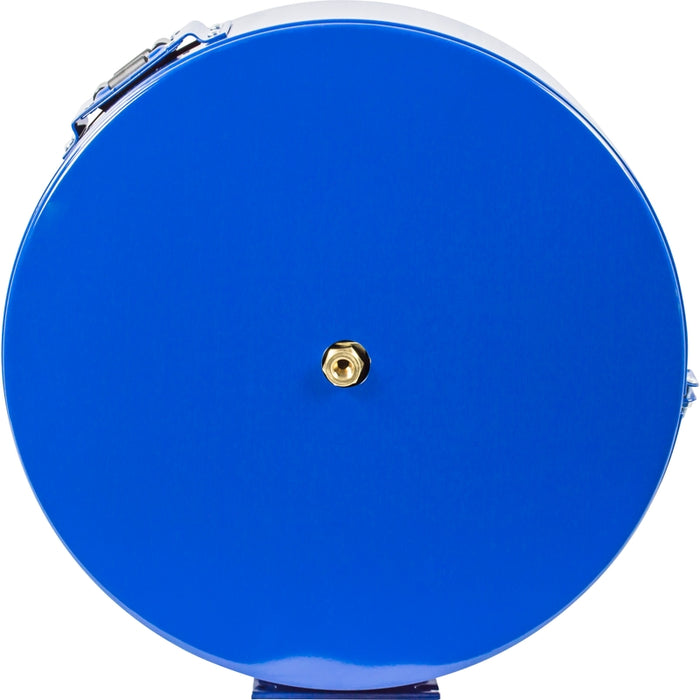

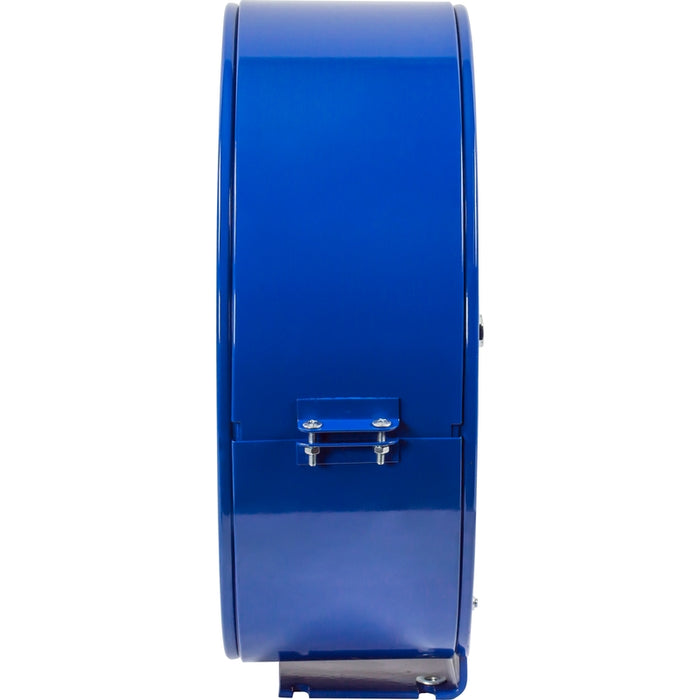

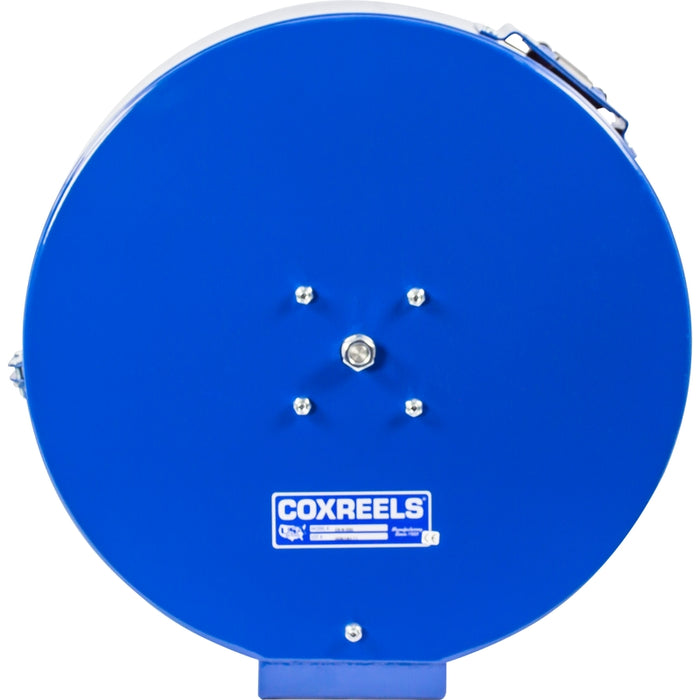

Coxreels EN Series Spring Driven Enclosed Hose Reel 3/8 in. x 25 ft. - No Hose 4000 PSI Model ENHL-N-325

Name: Coxreels EN Series Spring Driven Enclosed Hose Reel 3/8 in. x 25 ft. - No Hose 4000 PSI Model ENHL-N-325
Brand: Cox Reels
SKU: ENHL-N-325
Price: 622.0 USD
Availability: OutOfStock

SKU ENHL-N-325

Sold out

$622.00 - $622.00

$622.00

$622.00 - $622.00

$622.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels EN Series Spring Driven Enclosed Hose Reel 3/8 in. x 25 ft. - No Hose 4000 PSI Model ENHL-N-325

Coxreels EN Series “Enclosed” spring driven hose reels are protected by a powder coated steel casing that shields out the elements to protect and extend the life of the reel, the hose, and the components inside. It adds a neat, tidy, aesthetic appearance to work environments that demand a clean and professional look. The 3-piece casing is easy to assemble and disassemble for simple installation and maintenance.

The Coxreels ENHL-N-325 Spring Rewind Enclosed Hose Reel is engineered to deliver high-volume fluid distribution in high-pressure grease and hydraulic oil applications, performing reliably at a working pressure up to 4,000 PSI. Supplied less hose, this model features a 3/8" I.D. drum capacity up to 25' and integrates an all-steel 3-piece protective housing with an adjustable roller guide to provide smooth, heavy-duty hose control in pristine shop environments.

Features & Benefits

Zinc-Plated 90° Swivel: Built with an external fluid path featuring a machined from zinc-plated steel 90° full-flow NPT swivel inlet, allowing for simple seal maintenance and fast, easy hose installation without removing the reel from its mount.
Nitrile Swivel Seals: Standard equipped with high-quality Nitrile seals to deliver leak-free performance and excellent chemical compatibility in severe high-pressure oil and grease environments.
Protective Enclosed Design: Encased in a heavy-gauge steel 3-piece housing that seals out debris, grease, and weather, dramatically extending the service life of internal components while maintaining a clean appearance.
Weldless 1/4" Steel Base: Constructed with a sturdy single-pedestal design featuring a solid, one-piece, heavy-gauge 1/4” steel base and support post with no welds for maximum structural stability under heavy loads.
Super Hub™ Dual Axle Support: Models with size index #2 feature Coxreels' exclusive dual axle support system with a 1” solid steel axle and lubricated precision bearings to guarantee ultra-smooth rotation.
CNC Robotically Spun Discs: Heavy-duty, robotically spun and ribbed discs feature safety rolled edges to maximize structural strength, eliminate hose wear, and protect the operator.
Enclosed Cartridge Motor: Powered by a lubricated, factory-tuned and matched cartridge-style spring motor equipped with a non-corrosive stainless steel spring, pawl, and zinc-plated ratchet. The entire motor assembly is easily removable for safe and quick maintenance.
Multi-Position Lock Ratchet: An integrated heavy-duty ratchet mechanism safely secures the hose at your preferred length for exact deployment control.
Proprietary CPC™ Powder Coat: Shielded with a long-lasting, chip-resistant, and rust-inhibiting CPC™ powder coat finish for premium defense against harsh environment wear.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and fully sold and supported worldwide.
