Coxreels EZ-E Series Safety System Spring Driven Enclosed Cab Hose Reel 1/2 in. x 30 ft. 2500 PSI - No Hose Model EZ-E-MPL-430

Name: Coxreels EZ-E Series Safety System Spring Driven Enclosed Cab Hose Reel 1/2 in. x 30 ft. 2500 PSI - No Hose Model EZ-E-MPL-430
Brand: Cox Reels
SKU: EZ-E-MPL-430
Price: 479.0 USD
Availability: OutOfStock

SKU EZ-E-MPL-430

Sold out

$479.00 - $479.00

$479.00

$479.00 - $479.00

$479.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels EZ-E Series Safety System Spring Driven Enclosed Cab Hose Reel 1/2 in. x 30 ft. 2500 PSI - No Hose Model EZ-E-MPL-430

Coxreels E Series “Expandable” multiple bank systems represent the pinnacle in professional workstation appearance and organization. Featuring smart interlocking cabinets, these assemblies are modularly expandable to house any number of spring-driven reels required. Engineered for seamless installation, rapid servicing, and clean multimedia delivery, the E Series is the ultimate custom system for professional garage, industrial, and fleet environments.

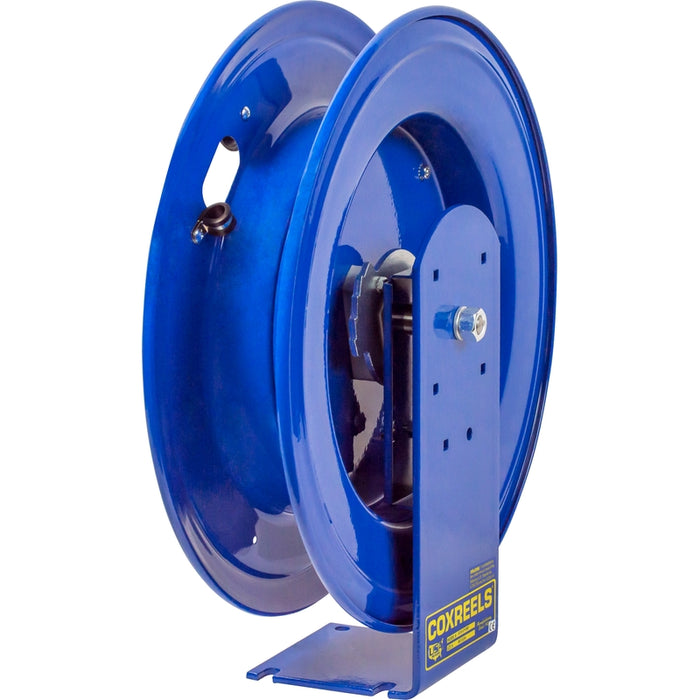

The Coxreels EZ-E-MPL-430 Safety Series Spring Rewind Hose Reel provides mechanized medium-pressure fluid management up to 2,500 PSI. Supplied less hose, this model safely accommodates up to a 30' capacity of 1/2" I.D. line for multi-fluid air, water, and oil systems. It features a single pedestal layout for cabinet interlocking and is outfitted with an EZ-Coil® enclosed spring motor to maintain ultra-controlled, safe retraction speeds.

Features & Benefits

Interlocking Bank System: Purpose-built to slide flawlessly into expandable metal cabinets and multiple reel bank networks, maximizing organization and workspace aesthetics.
EZ-Coil® Safety Retraction: Equipped with standard EZ-Coil® technology, a patented safety mechanism that controls retraction speeds to pull lines back up to 80% slower than standard spring reels.
Machined Brass Swivel: Features a premium external fluid path utilizing a machined solid brass 90° full-flow NPT swivel inlet with Nitrile seals for rapid hose installation and quick maintenance without removing the reel from its enclosure.
Removable Cartridge Motor: Powered by a fully enclosed, factory-tuned, and matched cartridge-style spring motor that can be safely unbolted for rapid, convenient servicing.
Sturdy 1/4" Steel Base: Built upon a rugged single-pedestal layout featuring a weldless, solid one-piece 1/4" steel base and support post combined with a 1" solid steel axle for maximum mechanical rigidity.
Super Hub™ Axle Support: Incorporates Coxreels’ exclusive Super Hub™ dual axle support system to drastically reduce operational vibration and protect the chassis under heavy dynamic loads.
Heavy-Duty Locking Ratchet: Outfitted with a multi-position lock ratchet configuration backed by a non-corrosive stainless steel spring, heavy pawl, and zinc-plated ratchet wheel to secure the hose at any working length.
Proprietary CPC™ Powder Coat: Shielded with a durable, chip-resistant, and rust-inhibiting CPC™ powder coat finish to protect steel construction from demanding shop environments.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and supported worldwide.
