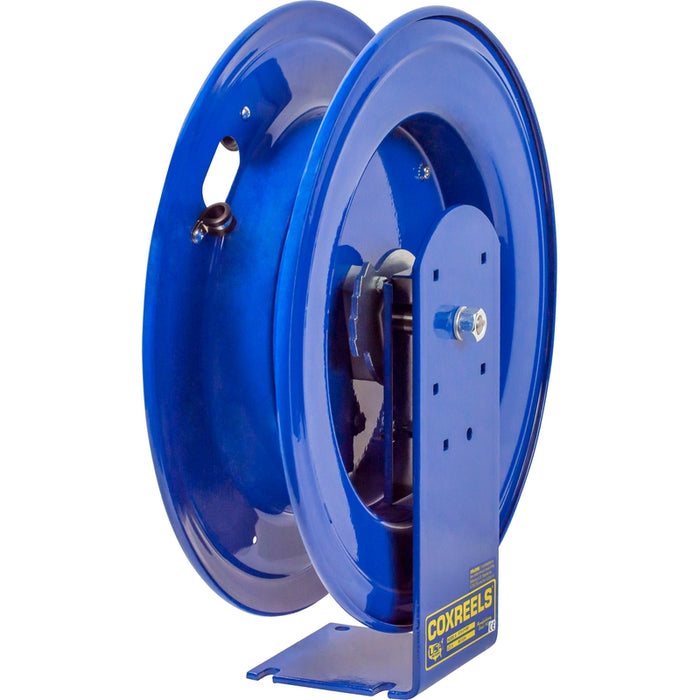

Coxreels EZ-E Series Safety System Spring Driven Enclosed Cab Hose Reel 1/4 in. x 50 ft. - No Hose 5000 PSI Model EZ-E-HPL-150

Name: Coxreels EZ-E Series Safety System Spring Driven Enclosed Cab Hose Reel 1/4 in. x 50 ft. - No Hose 5000 PSI Model EZ-E-HPL-150
Brand: Cox Reels
SKU: EZ-E-HPL-150
Price: 570.0 USD
Availability: OutOfStock

SKU EZ-E-HPL-150

Sold out

$570.00 - $570.00

$570.00

$570.00 - $570.00

$570.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels EZ-E Series Safety System Spring Driven Enclosed Cab Hose Reel 1/4 in. x 50 ft. - No Hose 5000 PSI Model EZ-E-HPL-150

Coxreels E Series “Expandable” multiple bank systems represent the pinnacle in professional workstation appearance and organization. Featuring smart interlocking cabinets, these assemblies are modularly expandable to house any number of spring-driven reels required. Engineered for seamless installation, rapid servicing, and clean multimedia delivery, the E Series is the ultimate custom system for professional garage, industrial, and fleet environments.

The Coxreels EZ-E-HPL-150 Safety Series Spring Rewind Hose Reel is a high-pressure line management solution built to handle heavy grease and hydraulic fluid deliveries up to 5,000 PSI. Supplied less hose, this model cleanly accommodates up to a 50' capacity of 1/4" I.D. line. Equipped with a patented EZ-Coil® safety retraction system, it pulls hoses back up to 80% slower than standard models to significantly increase safety across busy multi-reel cabinet banks.

Features & Benefits

Interlocking Bank System: Purpose-built to slide flawlessly into expandable metal cabinets and multiple reel bank networks, maximizing organization and workspace aesthetics.
EZ-Coil® Safety Retraction: Equipped with standard EZ-Coil® technology, a patented safety mechanism that controls retraction speeds to pull lines back up to 80% slower than standard spring reels.
High-Pressure Steel Swivel: Features an external fluid path engineered with a robust, zinc-plated steel 90° full-flow NPT swivel inlet paired with Nitrile seals for straightforward maintenance and high-throughput delivery.
Removable Cartridge Motor: Powered by a fully enclosed, factory-tuned, and matched cartridge-style spring motor that can be safely unbolted for rapid, convenient servicing.
Sturdy 1/4" Steel Base: Built upon a rugged single-pedestal layout featuring a weldless, solid one-piece 1/4" steel base and support post combined with a 1" solid steel axle for maximum mechanical rigidity.
Super Hub™ Axle Support: Incorporates Coxreels’ exclusive Super Hub™ dual axle support system to drastically reduce operational vibration and protect the chassis under heavy dynamic loads.
Heavy-Duty Locking Ratchet: Outfitted with a multi-position lock ratchet configuration backed by a non-corrosive stainless steel spring, heavy pawl, and zinc-plated ratchet wheel to secure the hose at any working length.
Proprietary CPC™ Powder Coat: Shielded with a durable, chip-resistant, and rust-inhibiting CPC™ powder coat finish to protect steel construction from demanding shop environments.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and supported worldwide.
