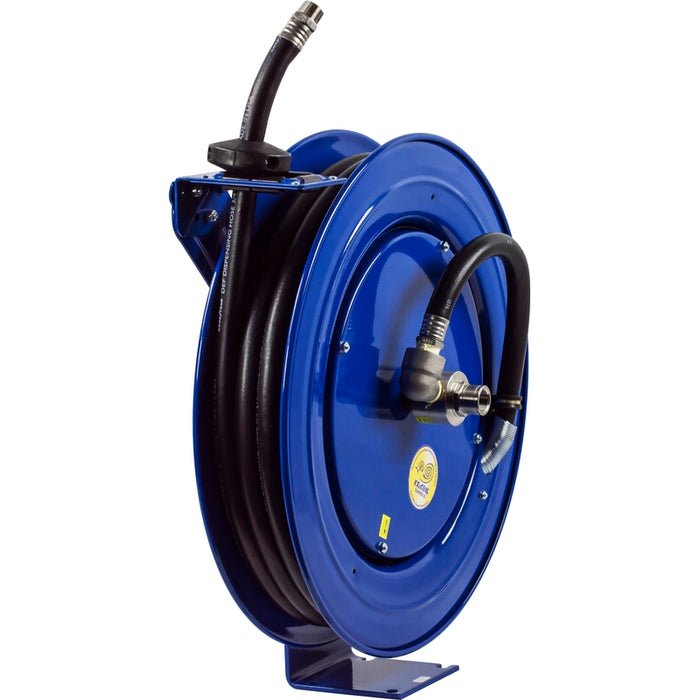

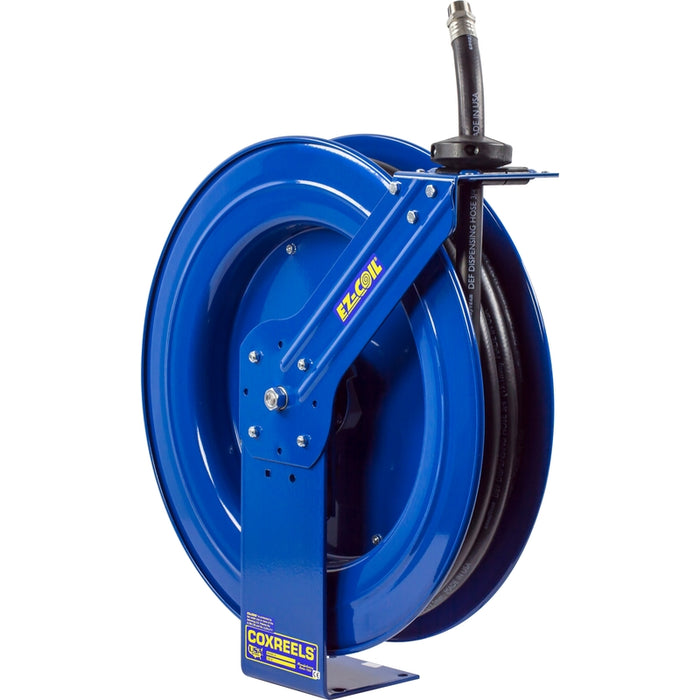

Coxreels EZ-SH DEF Series Safety System Spring Driven DEF Hose Reel 3/4 in. x 25 ft. 300 PSI With Hose - Model EZ-SH-525-DF-BBX

Name: Coxreels EZ-SH DEF Series Safety System Spring Driven DEF Hose Reel 3/4 in. x 25 ft. 300 PSI With Hose - Model EZ-SH-525-DF-BBX
Brand: Cox Reels
SKU: EZ-SH-525-DF-BBX
Price: 1328.0 USD
Availability: OutOfStock

SKU EZ-SH-525-DF-BBX

Sold out

$1,328.00 - $1,328.00

$1,328.00

$1,328.00 - $1,328.00

$1,328.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels EZ-SH DEF Series Safety System Spring Driven DEF Hose Reel 3/4 in. x 25 ft. 300 PSI With Hose - Model EZ-SH-525-DF-BBX

Coxreels DEF Series spring-driven hose reels are equipped with a stainless steel external full-flow swivel and chemical-resistant Viton® seals to provide a safe, reliable Diesel Exhaust Fluid dispensing solution. Outfitted with heavy-duty frames and Coxreels' original Super Hub™ axle support systems, these reels eliminate vibration and ensure structural integrity. They are the perfect fluid-handling solutions for either stationary factory environments or rugged mobile rig applications.

The Coxreels EZ-SH-525-DF-BBX DEF Spring Rewind Hose Reel is a premium single-pedestal unit tailored specifically for the clean conveyance of high-purity aqueous urea solutions. Operating at low-pressure limits up to 300 PSI, this high-quality reel comes factory-equipped with 25' of 3/4" I.D. specialized DEF hose. Retraction is powered by Coxreels' patented EZ-Coil® safety system that retracts up to 80% slower than conventional reels for maximum operator safety, while a multi-position lock ratchet mechanism safely secures the hose asset.

Features & Benefits

Stainless Steel DEF Swivel: Outfitted with a non-corrosive external 90° full-flow stainless steel NPT swivel inlet complete with chemical-resistant Viton® seals to prevent contamination and simplify field maintenance.
EZ-Coil® Controlled Safety Retraction: Equipped with Coxreels' patented factory-tuned safety system that actively slows mechanical rewind speeds up to 80% compared to standard setups, eliminating line whipping hazards.
Exclusive Super Hub™ Support: Outfitted with a robust single-pedestal frame that features Coxreels' proprietary Super Hub™ dual axle support system to dramatically reduce vibration and prevent axle deflection.
Weldless 1/4" Single Pedestal Base: Built upon a solid, heavy-gauge 1/4" steel base and support post without welds, ensuring extreme structural stability and a space-saving footprint.
Aqueous Urea Solution Hose: Arrives factory-equipped with premium DEF dispensing hose designed specifically to preserve fluid purity and resist chemical deterioration.
Removable Cartridge Motor: Powered by an enclosed, factory-tuned, and lubricated cartridge-style spring motor that is easily removable for convenient and safe maintenance.
Robust Axle and Bearings: Includes a 1" solid steel axle paired with permanently lubricated precision bearings to ensure an exceptionally smooth drum rotation.
American Made Quality: Proudly made in the U.S.A., shielded by a blue proprietary CPC™ powder coat finish, backed by a leading 2-year manufacturer's limited warranty, and supported worldwide.
