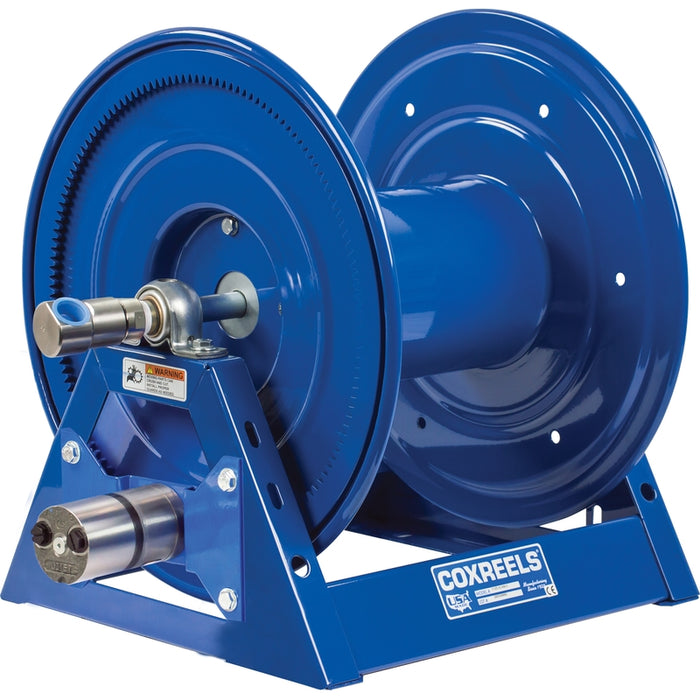

Coxreels HP1125 Series Hydraulic Motorized Hose Reel 1/2 in. x 200 ft. 5000 PSI Model HP1125-4-200-H

Name: Coxreels HP1125 Series Hydraulic Motorized Hose Reel 1/2 in. x 200 ft. 5000 PSI Model HP1125-4-200-H
Brand: Cox Reels
SKU: HP1125-4-200-H
Price: 1186.0 USD
Availability: OutOfStock

SKU HP1125-4-200-H

Sold out

$1,186.00 - $1,186.00

$1,186.00

$1,186.00 - $1,186.00

$1,186.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels HP1125 Series Hydraulic Motorized Hose Reel 1/2 in. x 200 ft. 5000 PSI Model HP1125-4-200-H

Coxreels 1125 Series hand crank and motorized hose reels have the features demanded by industry professionals. The industry-preferred design features a sturdy one-piece all-welded “A” frame base, a low-profile outlet riser, and an open drum slot design that provides a non-crimping, flat, smooth hose wrap.

The Coxreels HP1125-4-200-H Hydraulic Rewind Hose Reel connects directly to utility or service vehicle hydraulic circuits for high-torque mechanical recovery up to 5,000 PSI. Supplied less hose, this model safely stores up to 200' of 1/2" I.D. hose. It features a high-performance hydraulic drive motor coupled to a direct gear drive configuration, ensuring ultra-smooth, chainless, and reliable retrieval in heavy-duty environments.

Features & Benefits

Hydraulic Rewind Motor: Utilizes a high-torque hydraulic motor system that taps into existing fluid power setups for effortless mechanical hose recovery.
Chainless Direct Gear Drive: Utilizes a rugged direct gear drive configuration on the motor, delivering a significantly quieter, smoother retraction with fewer moving parts to maintain.
90° Full-Flow Swivel: Features an external fluid path utilizing an electroless nickel-plated steel 90° full-flow NPT swivel inlet equipped with premium AFLAS seals for simple maintenance and superior flow.
Low-Profile Outlet Riser: Outfitted with Coxreels' exclusive low-profile outlet riser and an open drum slot design, ensuring a flat, smooth, non-crimping hose wrap.
12-Gage Welded "A" Frame Base: Built upon a sturdy, one-piece, all CNC robotically welded 12-gage steel "A" frame base (not bolted) for maximum structural resilience and fast installation.
Pillow Block Bearings: Features permanently lubricated, self-aligning pillow block bearings to ensure an exceptionally smooth drum rotation and trouble-free operation.
Adjustable Tension Brake: Features an integrated drag brake to eliminate "free-wheeling" and customize tension during deployment.
Proprietary CPC™ Powder Coat: Finished with Coxreels' durable, chip-resistant, and rust-inhibiting CPC™ powder coat finish for maximum outdoor durability.
American Made Quality: Proudly made in the U.S.A., backed by a leading 2-year manufacturer's limited warranty, and supported worldwide.
