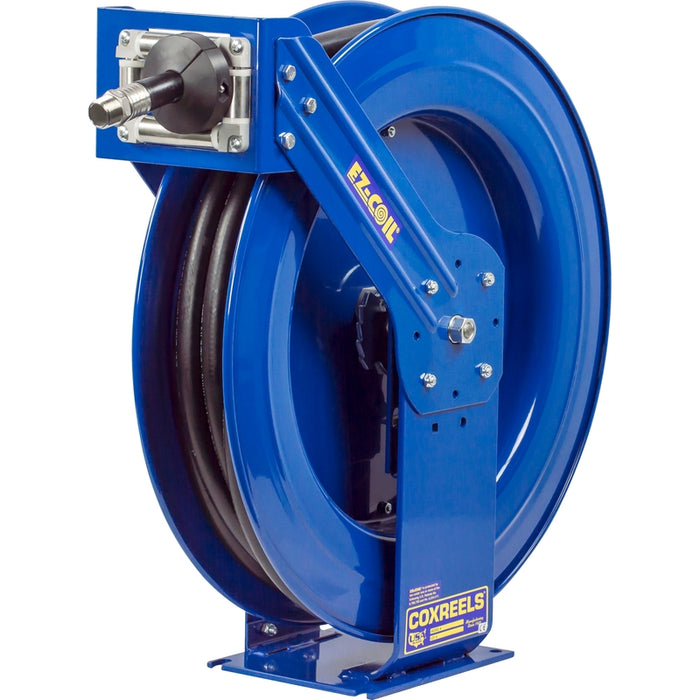

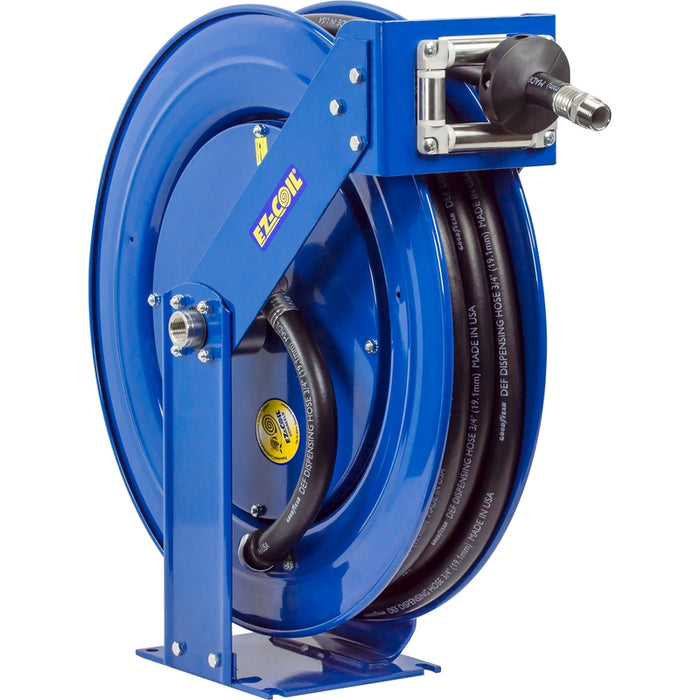

Coxreels T-DEF Series Safety System Spring Driven DEF Hose Reel 3/4 in. x 50 ft. - Hose Included 300 PSI Model EZ-TSHL-550-BBX

Name: Coxreels T-DEF Series Safety System Spring Driven DEF Hose Reel 3/4 in. x 50 ft. - Hose Included 300 PSI Model EZ-TSHL-550-BBX
Brand: Cox Reels
SKU: EZ-TSHL-550-BBX
Price: 967.0 USD
Availability: OutOfStock

SKU EZ-TSHL-550-BBX

Sold out

$967.00 - $967.00

$967.00

$967.00 - $967.00

$967.00

Temporarily out of stock - Call us for lead time

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Coxreels T-DEF Series Safety System Spring Driven DEF Hose Reel 3/4 in. x 50 ft. - Hose Included 300 PSI Model EZ-TSHL-550-BBX

Coxreels DEF Series spring-driven hose reels are equipped with a stainless steel external full-flow swivel and chemical-resistant Viton® seals to provide a safe, reliable Diesel Exhaust Fluid dispensing solution. Outfitted with heavy-duty frames and Coxreels' original Super Hub™ axle support systems, these reels eliminate vibration and ensure structural integrity. They are the perfect fluid-handling solutions for either stationary factory environments or rugged mobile rig applications.

The Coxreels EZ-TSHL-550-BBX DEF Spring Rewind Hose Reel is a supreme-duty dual-pedestal unit tailored specifically for the clean conveyance of high-purity aqueous urea solutions. Operating at low-pressure limits up to 300 PSI, this high-quality reel is supplied less hose and manages a capacity of up to 50' of 3/4" I.D. lines. Retraction is powered by Coxreels' patented EZ-Coil® safety system that retracts up to 80% slower than conventional reels for maximum operator safety, while a multi-position lock ratchet mechanism safely secures the hose asset.

Features & Benefits

Stainless Steel DEF Swivel: Outfitted with a non-corrosive external 90° full-flow stainless steel NPT swivel inlet complete with chemical-resistant Viton® seals to prevent contamination and simplify field maintenance.
Exclusive Super Hub™ Support: Outfitted with a rugged dual-pedestal frame that features Coxreels' proprietary Super Hub™ triple axle support configuration to completely eliminate structural vibration on mobile service vehicles.
EZ-Coil® Controlled Safety Retraction: Equipped with Coxreels' patented factory-tuned safety system that actively slows mechanical rewind speeds up to 80% compared to standard setups, eliminating line whipping hazards.
Weldless 1/4" Dual Pedestal Base: Built upon a solid, heavy-gauge 1/4" steel base and dual support posts without welds, ensuring extreme structural stability on mobile service vehicles or factory floors.
Removable Cartridge Motor: Powered by an enclosed, factory-tuned, and lubricated cartridge-style spring motor that is easily removable for convenient and safe maintenance.
Robust Axle and Bearings: Includes a 1" solid steel axle paired with permanently lubricated precision bearings to ensure an exceptionally smooth drum rotation.
CNC Robotically Spun Discs: Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
American Made Quality: Proudly made in the U.S.A., shielded by a blue proprietary CPC™ powder coat finish, backed by a leading 2-year manufacturer's limited warranty, and supported worldwide.
