Vantech 3-Bar Black Steel Bolt-On Ladder Rack System RAM ProMaster City 2015-current Model H1348B

by Vantech

In-Stock

Save 20% Save 20%
Original price $599.00
Original price $599.00 - Original price $599.00
Original price $599.00
Current price $479.20
$479.20 - $479.20
Current price $479.20

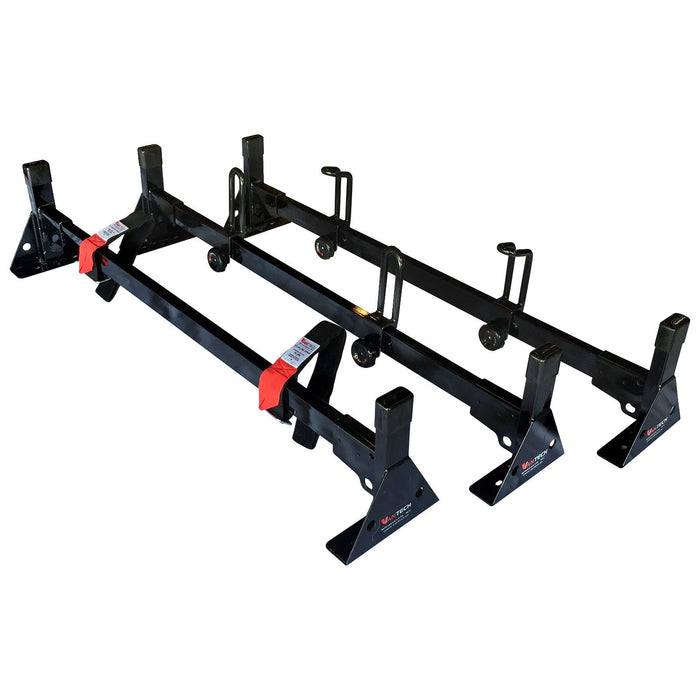

Vantech 3-Bar Black Steel Bolt-On Ladder Rack System RAM ProMaster City 2015-current Model H1348B

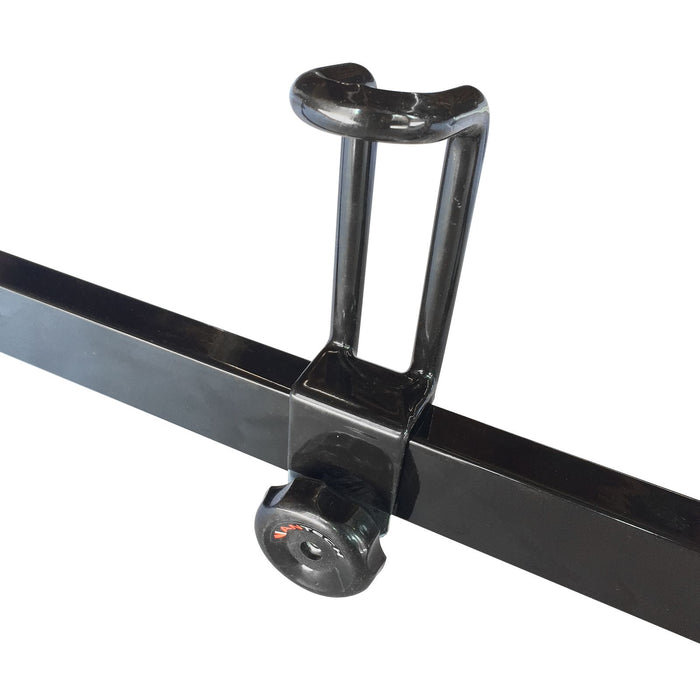

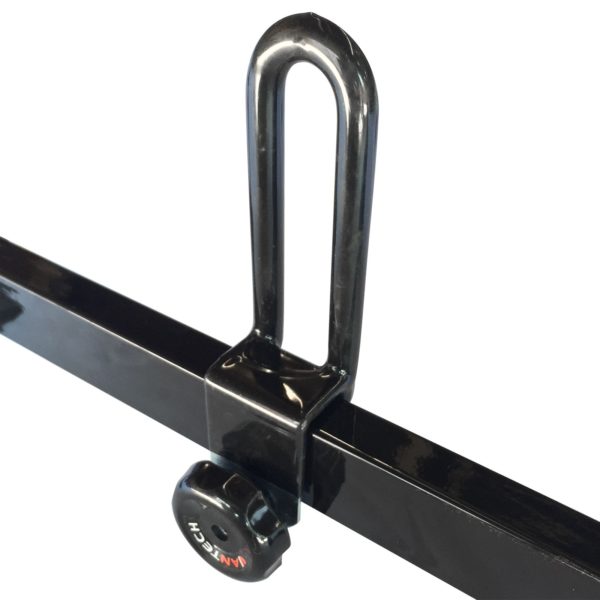

The H1 3 Bar low profile steel system for the RAM ProMaster City 2014-On Mounts onto the vehicle via. factory mounting points. The mounts can be easily installed using M6 bolts. The weight capacity for this rack system is 750 lbs. (evenly distributed). The Cross bars is 2″ X 1″ rectangular 14 gauge heavy-duty steel. The Cross bar is protected by non-slip plastic bar guard on top. Mounting upright are made of 11-gauge steel and are galvanized before powder coating. The Mounting uprights are 8″ extra wide base at 10.5″ total height. The Base is welded complete onto upright post for complete seal. There are 4X 3/4″ eyehooks per mounting upright. Rubber cap on the upright post prevents wind noise. The system Includes 5″ ladder stopper to prevent ladder from sliding forward, Ladder stoppers are galvanized and rubber dipped. The system also includes 5.5″ ladder guide for easy bungee and tie-down. Ladder guide are galvanized and rubber dipped. Easy turn knob allows quick adjustments and removal of ladder stopper and ladder guide. Hook & loop straps secure ladders within seconds up to 75 lbs. System powder coated for additional protection against rust. Total system height from base to endcap is 10.5″. This system is powder coated black.

Click Here To Shop Vantech Shelving

Vantech's H1 Series Rack System

Vantech's H1 Series Rack System

Vantech's H1 Series Rack System offers a fast, simple, and rugged solution to your cargo needs. Designed to mount on any van, this system can be mounted using the van’s OEM mounting holes (if available), on a van’s drip-rails with their H1 Clamps, or on any flat surface by drilling universal holes.

Carry your loads with ease

Carry your loads with ease

Vantech's H1 Series Rack System mounts with easy installation that fits most commercial vans with any size wheelbase on the market. Each bar is an evenly distributed load capacity of 250 pounds per bar. Whether you are hauling ladders, Vantech's high quality Conduit Carriers, or any other materials, Vantech is the way to go.

What comes with a Vantech H1 Series Rack System for Modern Vans

What comes with a Vantech H1 Series Rack System for Modern Vans

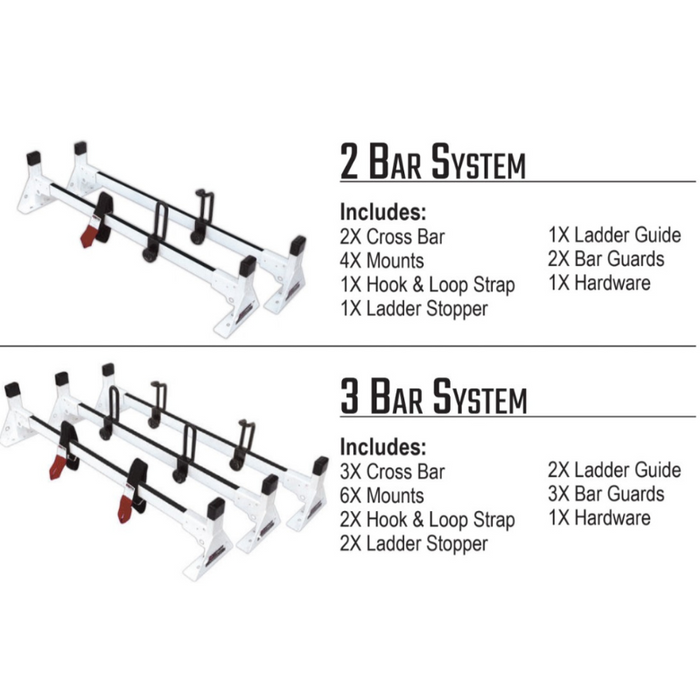

For modern vans, the Vantech H1 Series Rack system comes with a variety of parts and accessories. The 2-Bar System comes with two cross bars, four mounts, two bar guards, and one of each of the following: hoop & loop strap, ladder stopper, ladder guide and hardware.

The 3-Bar System comes with three cross bars. six mounts, three bar guards, a single set of hardware and two of the following: hook & loop straps, ladder stoppers, and ladder guides.

Note: Every modern van has bolt-on installation. The 2007-current Mercedes Sprinter requires mounting tracks from installation.

What comes with a H1 Series Vantech Rack System for Older Vans

What comes with a H1 Series Vantech Rack System for Older Vans

For older vans, the H1 Series Vantech Rack system comes with a variety of parts and accessories. The 2-Bar System comes with two cross bars, four mounts, four drip rail clamps, and one of each of the following: hook & loop strap, ladder stopper, ladder guide, and hardware.

The 3-Bar System comes with three cross bars, six mounts, six drip rail clamps, three bar guards, a single set of hardware and two of the following: hook loop straps, ladder stoppers, and ladder guides.

Note: Every older van has clamp-on installation.

Vantech's Van Rack Features

Vantech's Van Rack Features

Vantech Van Rack Systems come in either a rust free, stainless hardware and light weight aluminum or am economical, galvanized, heavy duty grade steel. Also, every rack comes with holes to mount your rack to your van and holes to insert hook straps to secure your Each rack system comes in a black or white finish.
