Warn Zeon XC for Hidden Winch Kits 12,000lbs - 3/8” X 80’ Spydura Pro Synthetic Model 112356

Name: Warn Zeon XC for Hidden Winch Kits 12,000lbs - 3/8” X 80’ Spydura Pro Synthetic Model 112356
Brand: Warn
SKU: 112356
Price: 1749.99 USD
Availability: InStock

SKU 112356

$1,749.99 - $1,749.99

$1,749.99

$1,749.99 - $1,749.99

$1,749.99

In Stock

The Elite Promise

We promise to make it right 100% of the time. We'll take care of any damages or defects, no matter the issue. Just contact our highly-rated USA-based commercial customer service team. Know any purchase from EliteTruck.com comes with the industry's most comprehensive product & service guarantee.

Description

Warn Zeon XC for Hidden Winch Kits 12,000lbs - 3/8” X 80’ Spydura Pro Synthetic Model 112356

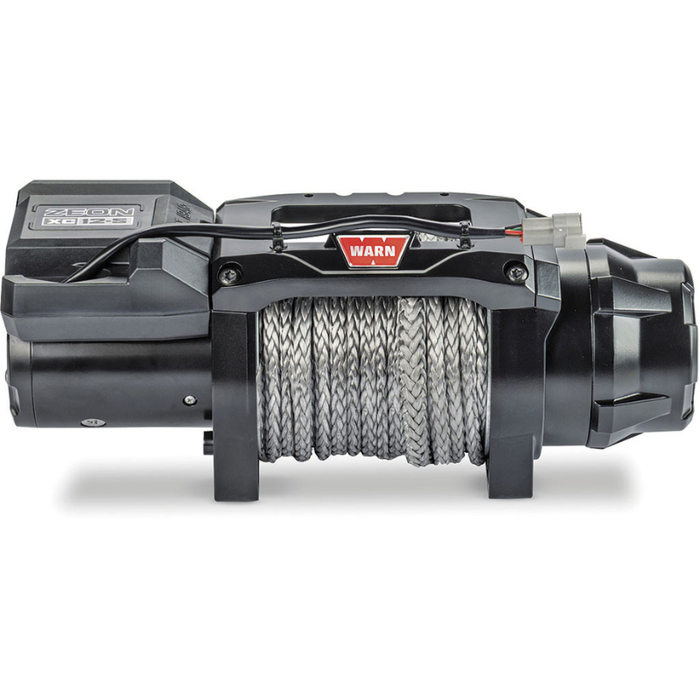

Designed, engineered, tested, and assembled in the USA, the WARN ZEON XC 12-S Short Drum Winch offers the full strength and features of the standard ZEON XC series in a specialized, narrower configuration. The 2.5-inch shorter drum length is specifically engineered to integrate with a new line of fully hidden winch mounts. It features a high-performance, high-efficiency motor providing fast line speeds and IP68/IP69K-rated waterproofing for maximum protection against water, dirt, and debris.

To optimize performance in hidden mounting configurations, the winch transmission has been rotated forward 144 degrees, ensuring the clutch lever remains easily accessible behind the bumper. Structural rigidity is maintained through a dedicated winch tie plate connecting the motor and transmission sides. The system includes 70 feet of 3/8-inch Spydura Pro synthetic rope, which is lightweight and durable, paired with an all-new shortened hawse fairlead. For added convenience, a 7-foot remote socket extension harness allows the control interface to be positioned in an accessible location regardless of the winch's mounting depth.

Features & Benefits

Compact Short Drum: 2.5 inches narrower than standard models to fit tight spaces and hidden bumper systems.
Optimized Transmission: Rotated 144 degrees forward for easy clutch access in foot-forward mounting setups.
Synthetic Rope System: Includes 70 feet of 3/8-inch Spydura Pro synthetic rope and a specialized short-drum forged aluminum hawse fairlead.
Superior Ingress Protection: Certified IP68/IP69K waterproofing with O-ring sealing and corrosion-resistant black fasteners.
Advanced Control: Features a low-profile control pack with bus bar electrical connections and a reliable Albright contactor for supreme duty cycles.
Robust Braking: Automatic load-holding six-segment mechanical cone brake for precise control and strength.

Compatibility

This winch is compatible only with the following Fully Hidden Bumpers:

Super Duty (PN 112554)
F150 (PN 112590)
Tacoma (PN 112438)
4Runner (PN 111940)
Land Cruiser (PN 112499)

Specifications

Attribute	Details
Rated Line Pull	12,000 lbs (5443 kg) Single Line
Motor	12V DC, Series Wound
Gear Ratio	176:1 (3-Stage Planetary)
Rope Dimensions	3/8” x 80’ Spydura Pro Synthetic
Drum Diameter / Length	3.15” / 9.0” (80mm / 229mm)
Dimensions (L x H)	22.06" x 7.83"
Mounting Bolt Pattern	7.5” x 4.5”
Ingress Protection	IP68 / IP69K Rated Waterproof
Brake Type	Automatic, Six Segment Mechanical Cone
Finish	Satin-Black Powder Coat
Warranty	Limited Lifetime Mechanical / 7 Year Electrical
